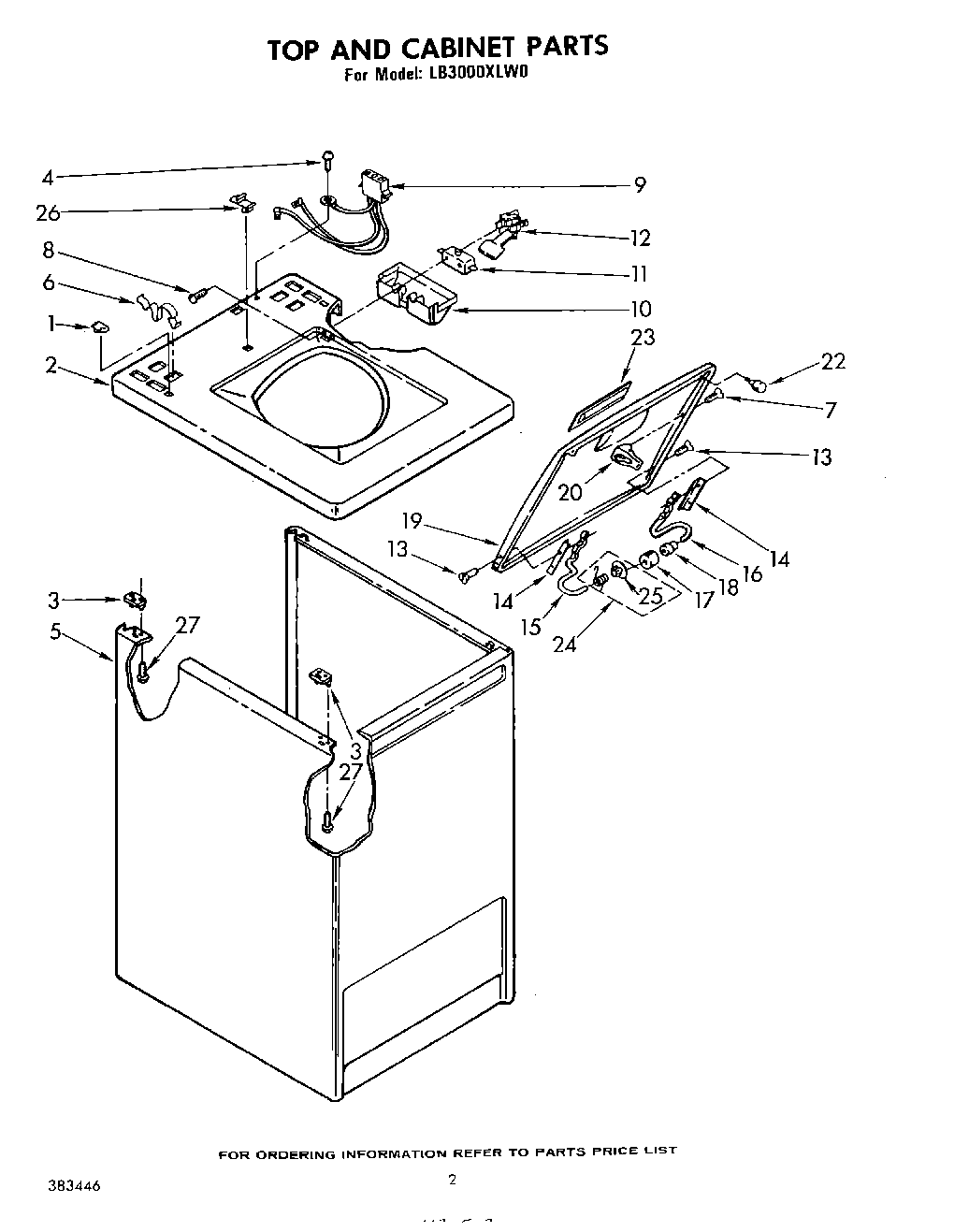

LB3000XLW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
1Nut, Push-In (2)
2Top (White)
3WP62750 Whirlpool Spacer
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7Screw & Washer
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Switch Actuator Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
20Strike, Lid Switch
22WP9724509 Whirlpool Bumper
23WP686711 Whirlpool Door Handle
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27WPL 799351
27350938 Whirlpool Spray Gun
2772017 Whirlpool Appliance Touch-Up Paint White
27List, Repair Parts
27Label, Energy Guide
27Instructions, Operating
27Sheet, Installation Instructions
27799344 Whirlpool Refrigerator Paint
27Guide, Laundry
27Leveler (Thinner)
27350572 Whirlpool Oil Transmission 15 Oz
27SCREW
27LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
27WP285195 Whirlpool Sealer Assembly
27350930 Whirlpool White Spray Paint
