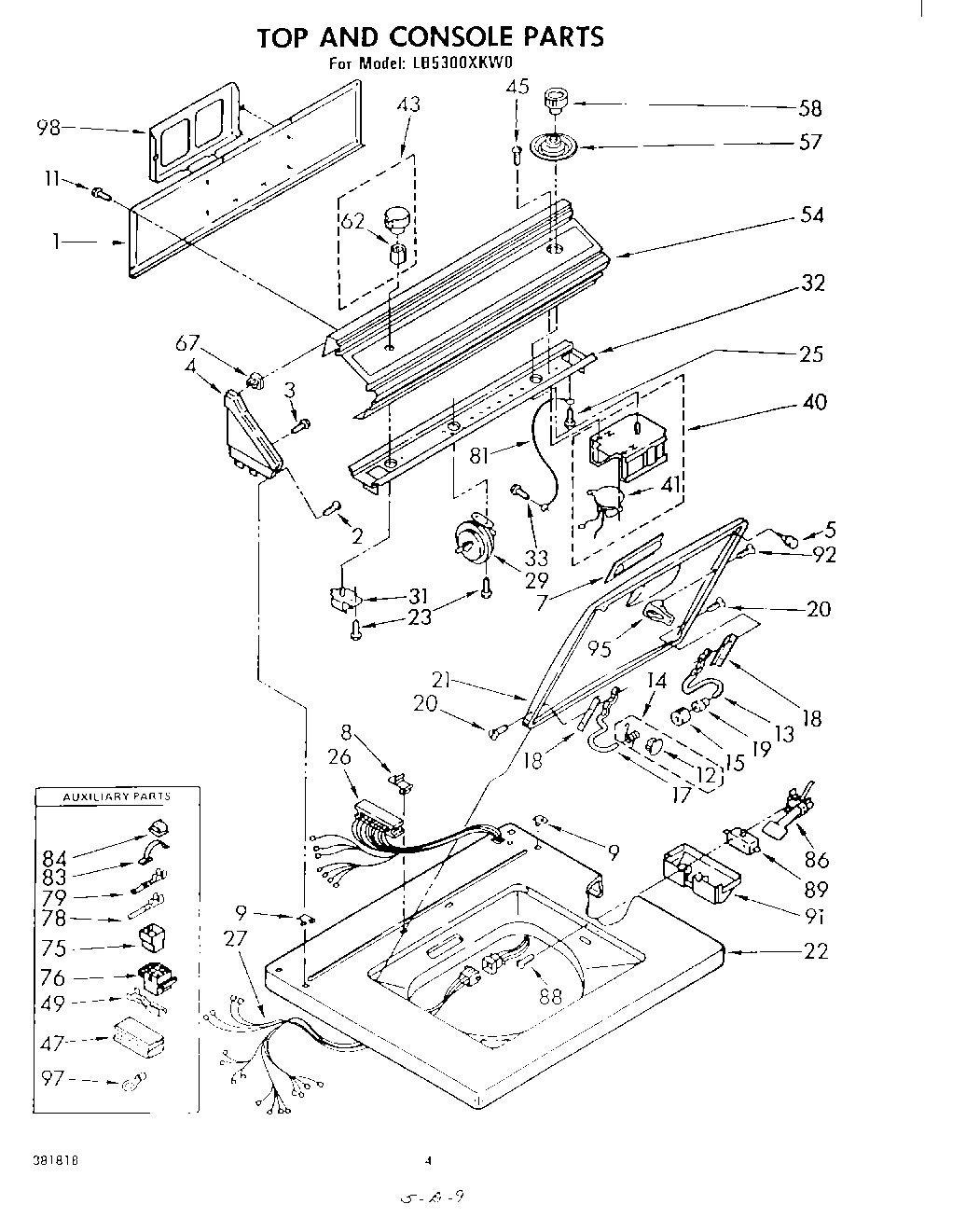

LB5300XKW0 03 – TOP AND CONSOLE

LB5300XKW0 03 – TOP AND CONSOLE

Written by

in

LB5300XKW0 03 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5WP9724509 Whirlpool Bumper
7Handle, Lid (White)
7Handle, Lid (Golden Harvest)
7Handle, Lid (Almond)
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
12Plug, Button
13WP91770 Whirlpool Hinge
14Spring & Button, Lid ((L.H.))
15Bumper, Lid Hinge
17WP54584 Whirlpool Hinge
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (Almond)
21Lid (Golden Harvest)
21Lid (White)
22Top (White)
22Top (Golden Harvest)
22Top (Almond)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
26Harness, Console
27Harness, Base
29Switch, Water Level
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
33SCREW
40Timer, 60 Hz. (C.C.A.)
41Use W/C.C.A. Timer
43Knob Assembly, Water Temperature
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54Panel, Control
57Dial, Timer
58WPL 359773
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
813184020 Whirlpool Oven Wire
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
86Switch Actuator Assembly
88Screw & Washer, Lid Switch (2)
89W10820036 Whirlpool Door Switch Kit
91WP359231 Whirlpool Shield
92Screw & Washer
95Strike, Lid Switch
97WPL 357695
98Rack, Literature
