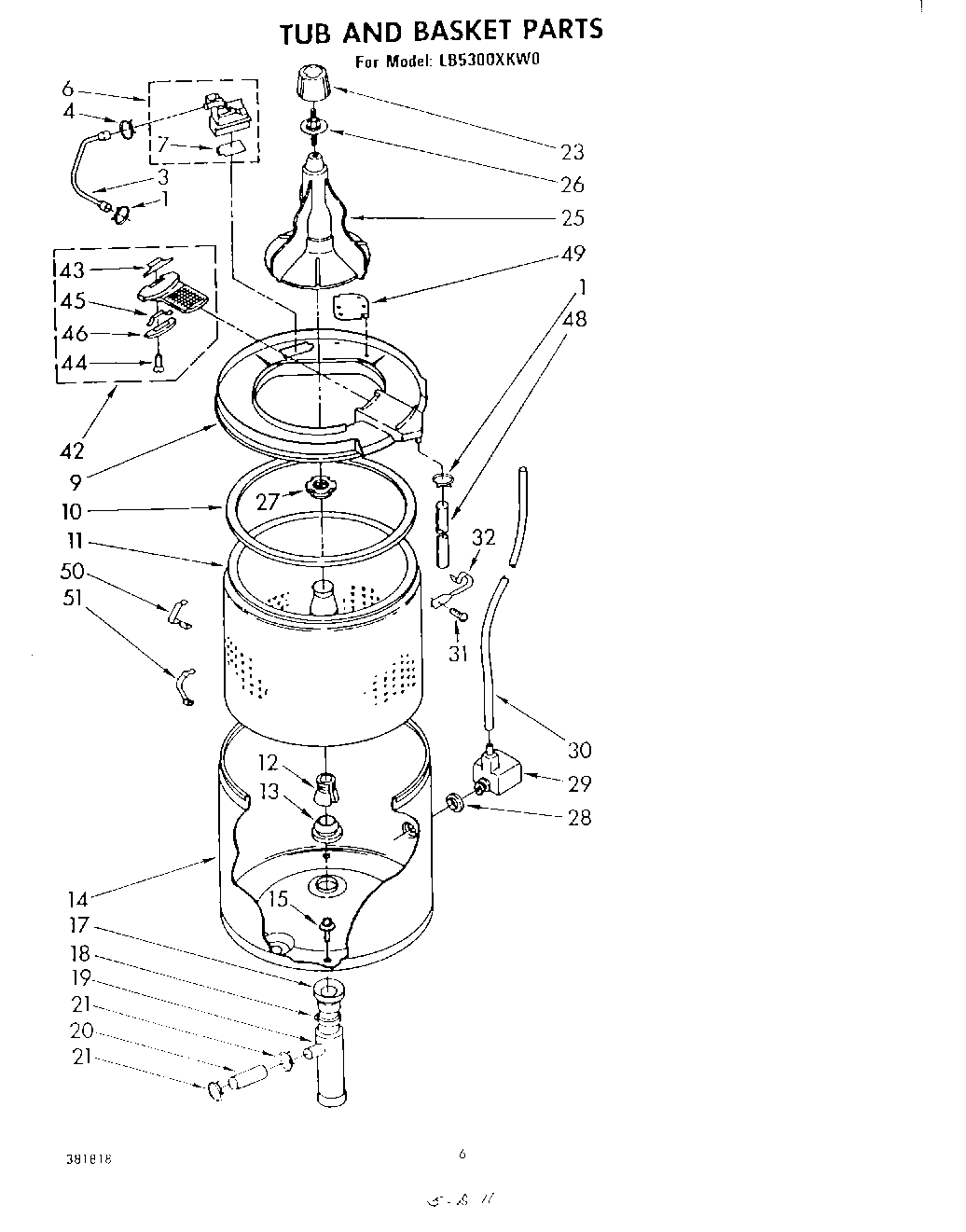

LB5300XKW0 05 – TUB AND BASKETadmin2025-04-26T12:06:09+00:00LB5300XKW0 05 – TUB AND BASKET
Products
| Position | Product |
|---|
| 1 | WP596669 Whirlpool Hose Clamp |
| 3 | Hose, Water Inlet |
| 6 | Inlet, Water |
| 7 | Flapper |
| 9 | Ring & Filter, Tub (Includes Illus. 42 & 49) |
| 10 | Seal, Tub Ring |
| 11 | Basket |
| 12 | Block, Drive |
| 13 | W10814296 Whirlpool Washer Center Post Seal Gasket |
| 14 | Tub |
| 15 | Screw & Washer, Tub (4) |
| 17 | Hose, Tub Outlet |
| 18 | Clip, Hose |
| 19 | Manifold |
| 20 | Hose |
| 21 | WP285655 Whirlpool Hose Clamp |
| 23 | Cap, Agitator |
| 25 | Agitator |
| 26 | Stud, Agitator Shaft |
| 27 | WP21366 Whirlpool Spanner Nut |
| 28 | Seal |
| 29 | Air Dome Assembly |
| 30 | WP353244 Whirlpool Hose |
| 31 | W11573574 Whirlpool Screw |
| 32 | Bracket, Hose |
| 42 | Filter |
| 43 | Latch |
| 44 | Screw (2) |
| 45 | Spring |
| 46 | Retainer |
| 48 | Hose, Pump To Filter |
| 49 | Plate, Snubber |
| 50 | Clip, Tub Ring (3) |
| 51 | Clip, Tub Ring (1) |
