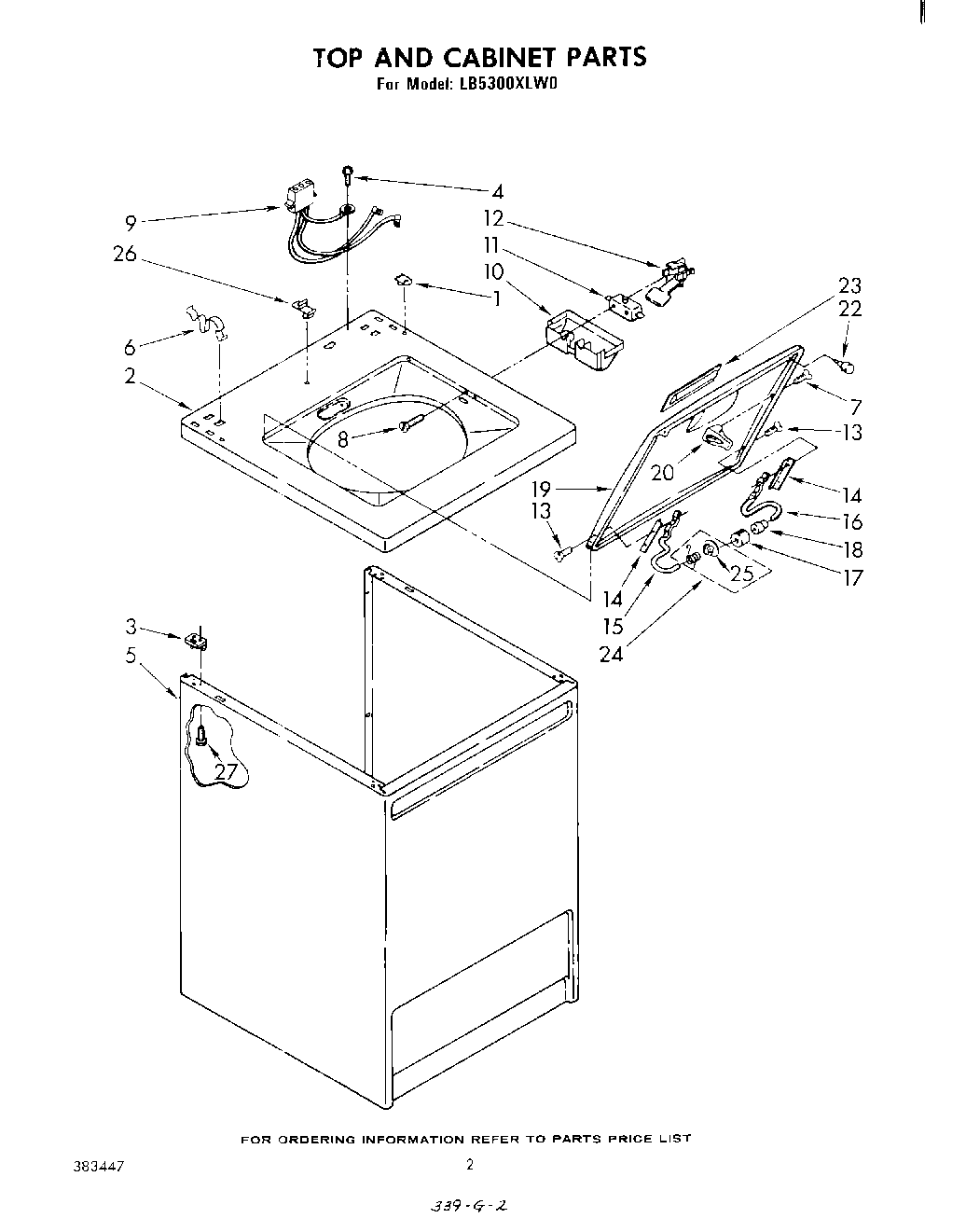

LB5300XLW0 02 – TOP AND CABINET, LITERATURE AND OPTIONAL

Products

PositionProduct
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (White)
2Top (Almond)
3WP62750 Whirlpool Spacer
5Cabinet (Golden Harvest)
5Cabinet (Almond)
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7Screw & Washer
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Switch Actuator Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19Lid (White)
19Lid (Almond)
20Strike, Lid Switch
22WP9724509 Whirlpool Bumper
23Handle, Lid (Almond)
23Handle, Lid (White)
23Handle, Lid (Golden Harvest)
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Label, Energy Guide
27350956 Whirlpool Spray Assembly
27Golden Harvest (Uncut)
27WP285195 Whirlpool Sealer Assembly
27Leveler (Thinner)
27List,
27350930 Whirlpool White Spray Paint
27Instructions, Operating
27350938 Whirlpool Spray Gun
2772017 Whirlpool Appliance Touch-Up Paint White
27799344 Whirlpool Refrigerator Paint
27350572 Whirlpool Oil Transmission 15 Oz
27Almond (Uncut)
27WPL 799351
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27SCREW
27Golden Harvest
27Guide, Laundry
27Sheet, Installation Instructions
27WP72107 Whirlpool Touchup
27LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
