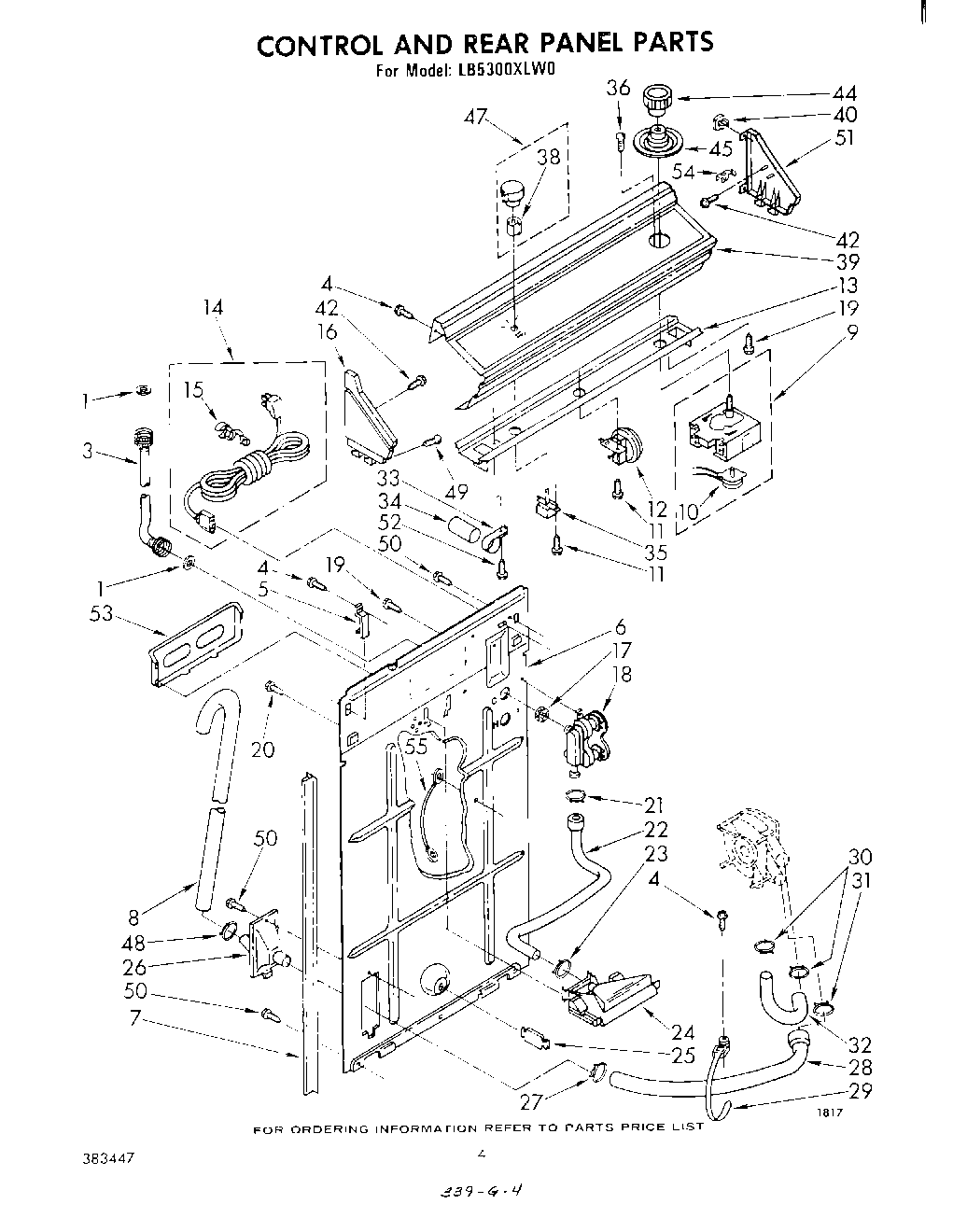

LB5300XLW0 03 – CONTROL AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
9	Timer, Control (60 Hz.) (Mallory)
10	Motor, Timer
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End L.H. (Almond Cap, End R.H.)
16	Cap, End (L.H.) (White)
16	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	Connector, Drain Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain Connector
29	Hanger, Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	357030 Whirlpool Clamp
34	CAPACITOR
35	Switch, Water Temperature (Alt.)
35	Switch, Water Temperature (Alt.)
36	WP356418 Whirlpool Screw
38	WP688805 Whirlpool Spring Clip
39	Panel, Console
40	WP689559 Whirlpool Nut
42	WPL 355326
44	WPL 359773
45	Dial, Timer
47	Knob Assembly, Water Temperature
49	Screw, 8-18 x 1 (2)
50	WP3390631 Whirlpool Screw
51	Cap, End (L.H.) (Almond)
51	Cap, End L.H. (White)
51	Cap, End L.H. (Golden Harvest)
52	SCREW
53	Rack, Literature
54	W10113937 Whirlpool Clamp
55	WPL 364089
