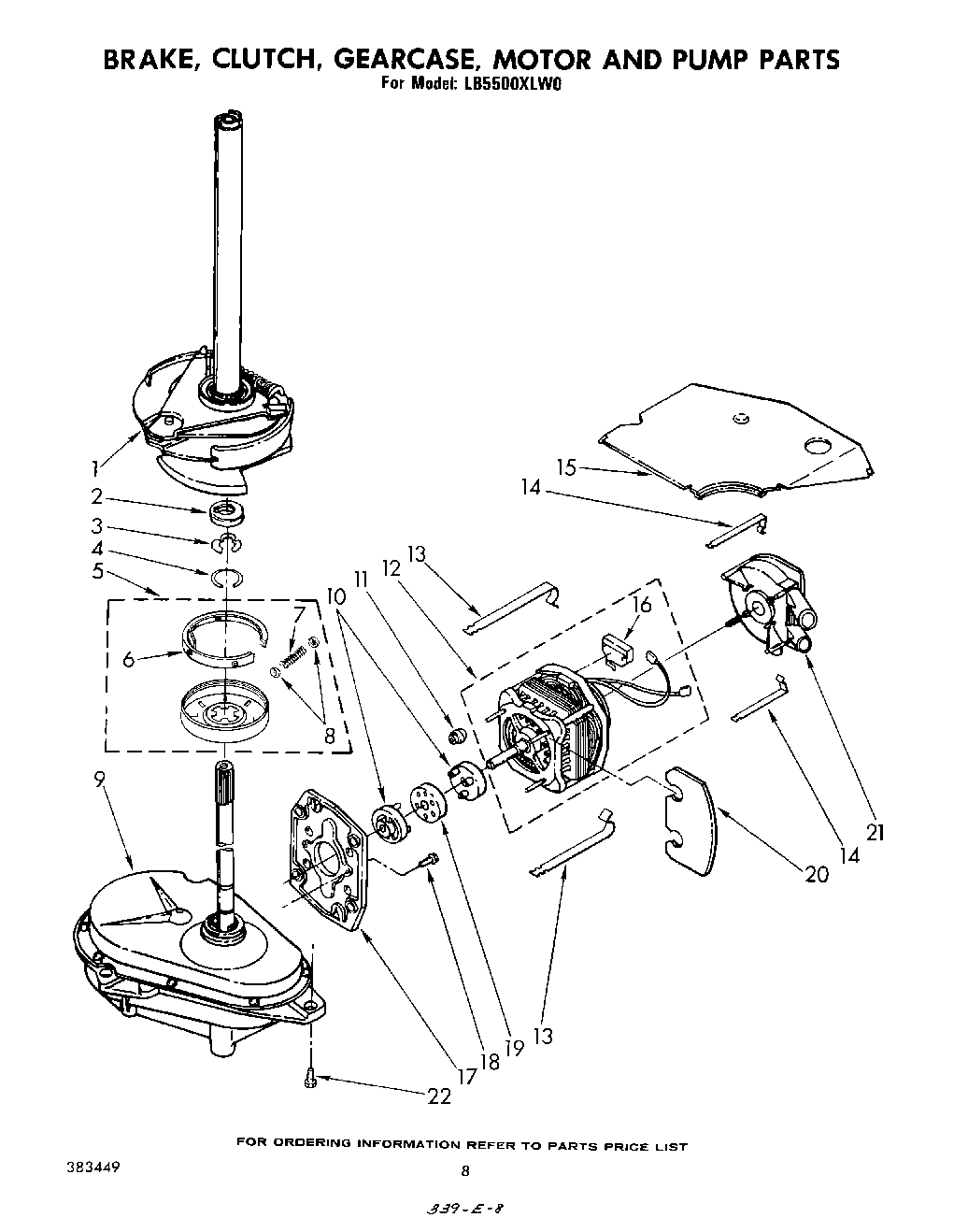

LB5500XKW0 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7Spring, Clutch
8WP62646 Whirlpool Cap
9Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
10285753A Whirlpool Washer Direct Drive Motor Coupling
11WP62691 Whirlpool Grommet
12WP661600 Whirlpool Drive Motor
13WPW10086010 Whirlpool Motor Retainer Clip
14WP8546127 Whirlpool Retainer Clip
15Shield, Tub To Motor
16Switch, Main Drive Motor
17WP62611 Whirlpool Plate
18WP3400516 Whirlpool Screw
20WP3946532 Whirlpool Shield
21WP3363394 Whirlpool Washer Drain Pump
22Screw, Gearcase To Base (3) (5/16-24 x 3/4)
