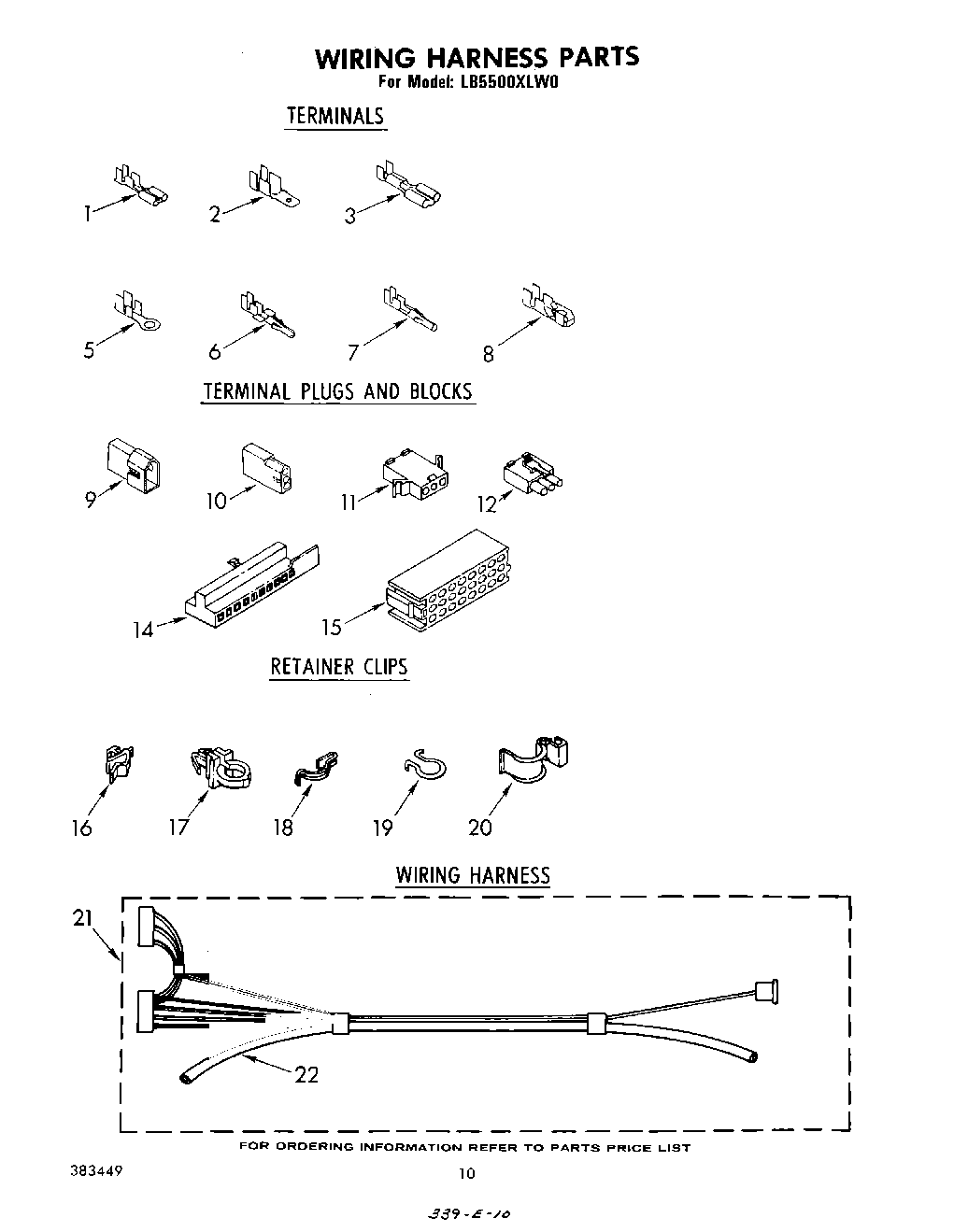

LB5500XKW0 07 – WIRING HARNESS

Products

Position	Product
1	Terminal, Female Spade (3/16``)
2	Terminal, Male Spade (3/16``)
3	WP285432 Whirlpool Terminal
5	Terminal, Ring (3/16`` Dia. Hole)
6	WP596797 Whirlpool Terminal
7	WP94614 Whirlpool Terminal
8	Terminal, Female
9	353424 Whirlpool Connector
10	Connector (Door Switch)
11	Plug, Terminal (3-Way)
12	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
14	WP62505 Whirlpool Connector
15	W10876590 Whirlpool Connector
15	Timer, Block Disconnect (White)
16	Clip, Harness
17	Clip, Harness
18	8528351 Whirlpool Clip
19	Clip, Harness (2)
20	WP90016 Whirlpool Clip
21	Wiring Harness & Pressure Switch Hose
22	WP353244 Whirlpool Hose
