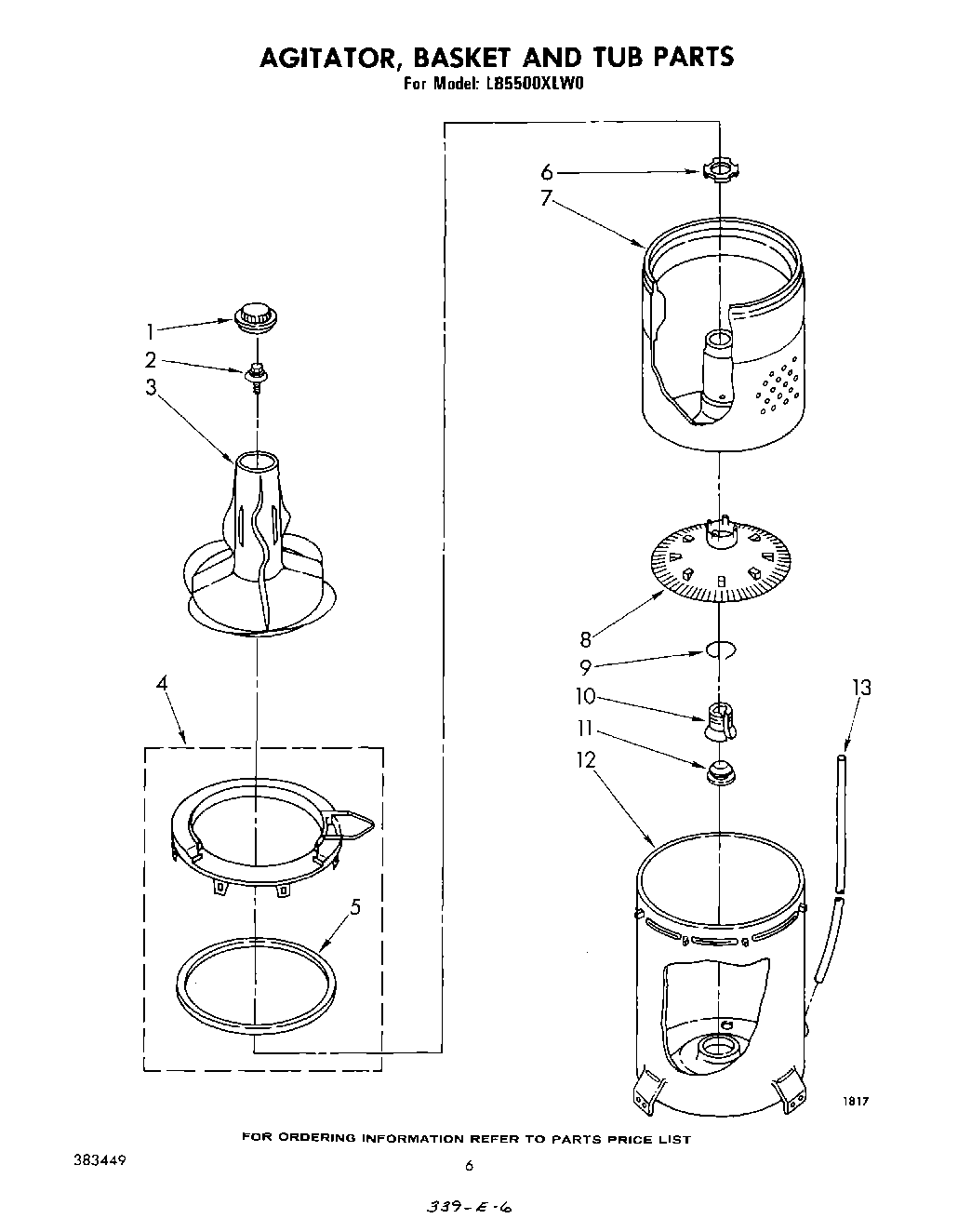

LB5500XLW0 04 – AGITATOR, BASKET AND TUB

LB5500XLW0 04 – AGITATOR, BASKET AND TUB

Written by

in

LB5500XLW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63235 Whirlpool Agitator Assembly
4Tub Ring
5Gasket, Tub Ring
6WP21366 Whirlpool Spanner Nut
7Basket
8285868 Whirlpool Washer Filter Plug Kit
9Lock, Filter
10WP389140 Whirlpool Drive Block or Bell
11W10814296 Whirlpool Washer Center Post Seal Gasket
12Tub
13WP353244 Whirlpool Hose
