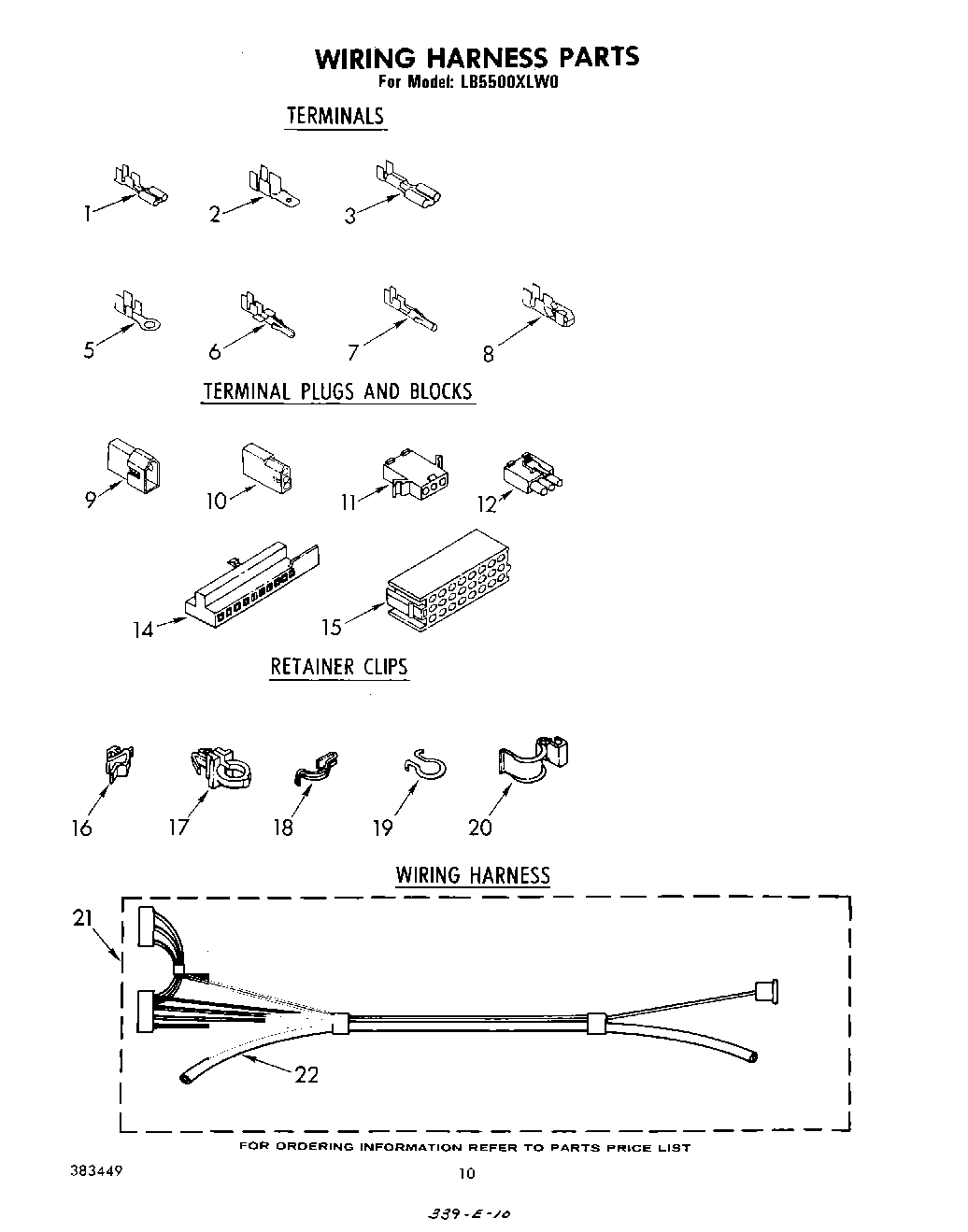

LB5500XLW0 07 – WIRING HARNESS

LB5500XLW0 07 – WIRING HARNESS

Written by

in

LB5500XLW0 07 – WIRING HARNESS

Products

PositionProduct
1Terminal, Female Spade (3/16“)
2Terminal, Male Spade (3/16“)
3WP285432 Whirlpool Terminal
5Terminal, Ring (3/16“ Dia. Hole)
6WP596797 Whirlpool Terminal
7WP94614 Whirlpool Terminal
8Terminal, Female
9353424 Whirlpool Connector
10Connector (Door Switch)
11Plug, Terminal (3-Way)
12WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
14WP62505 Whirlpool Connector
15W10876590 Whirlpool Connector
15Timer, Block Disconnect (White)
16Clip, Harness
17Clip, Harness
188528351 Whirlpool Clip
19Clip, Harness (2)
20WP90016 Whirlpool Clip
21Wiring Harness & Pressure Switch Hose
22WP353244 Whirlpool Hose
