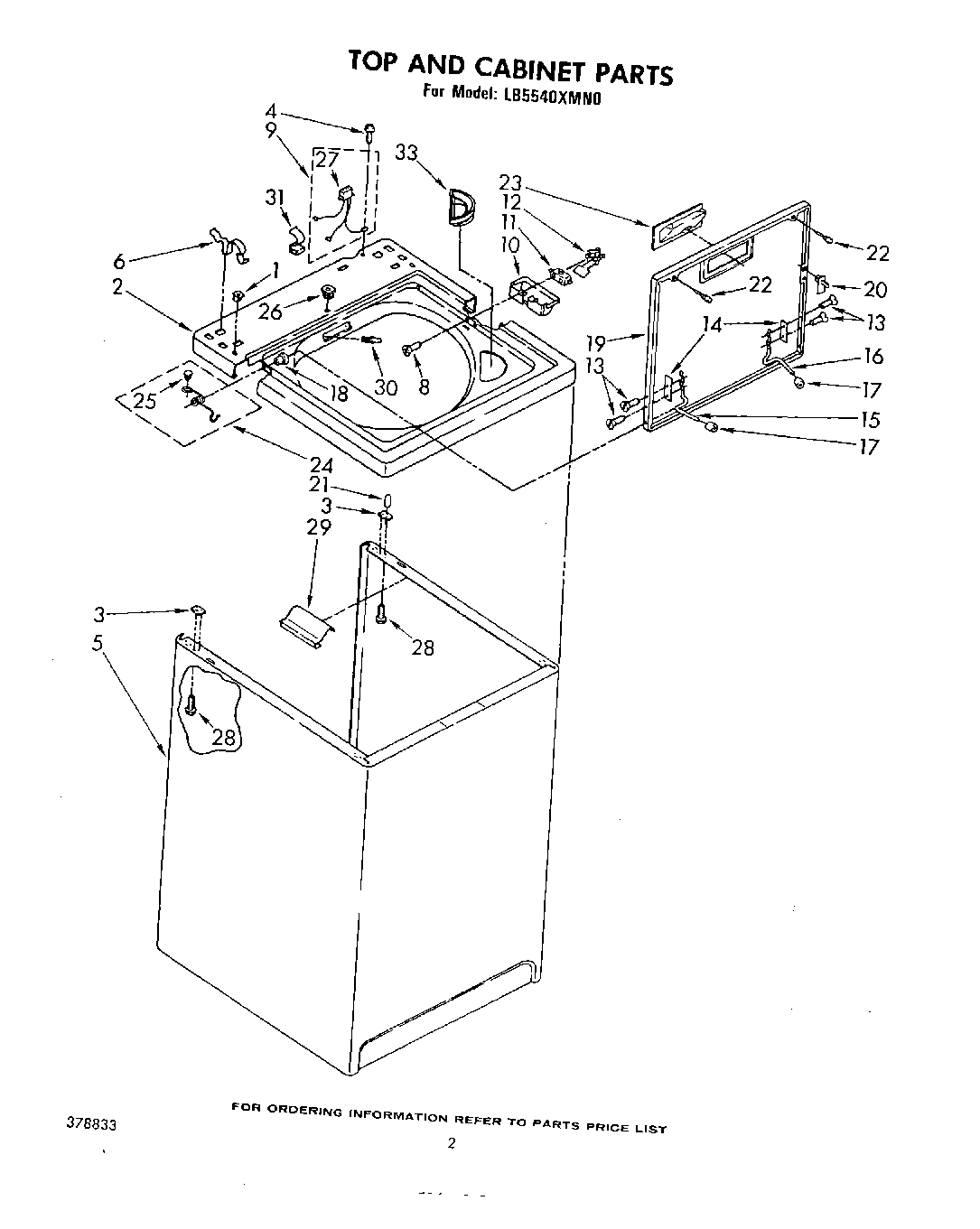

LB5540XMN0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

LB5540XMN0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Written by

in

LB5540XMN0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT383976
WP285195 Whirlpool Sealer Assembly
Enamel, New Avocado (1 Qt. Uncut)
WPL LIT677967
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Touch-Up 1/2 Oz. (Coffee)
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Enamel, Coffee (1 Qt. Uncut)
WPL LIT677971
WPL 261880
WPL LIT385030
WPL LIT385238
WPL LIT378833
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
799344 Whirlpool Refrigerator Paint
Leveler (Thinner)
Almond (Uncut)
Dryer
WP72107 Whirlpool Touchup
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
350938 Whirlpool Spray Gun
1Nut, Push-In (2)
2Top (Almond)
3WP62750 Whirlpool Spacer
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
21W10491983 Whirlpool Tine Tip
22WP9724509 Whirlpool Bumper
23Handle, Lid (Almond)
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
29Support Protector
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
33WP3362952 Whirlpool Bezel
