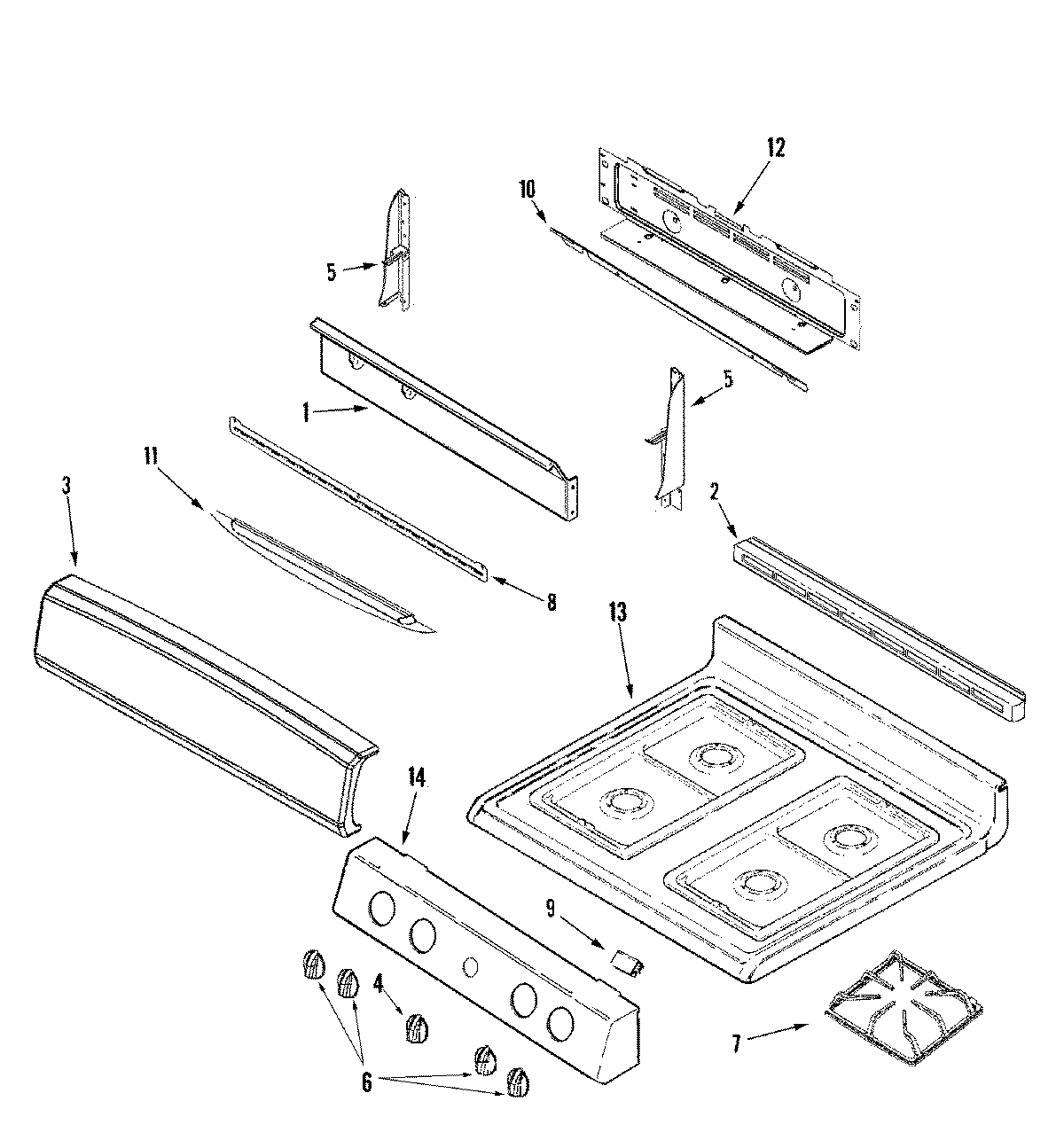

LBR1415AGW 02 – CONTROL PANEL/TOP ASSEMBLY

LBR1415AGW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

LBR1415AGW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74011251
4MAY 74010725
4MAY 74010733
5MAY 74010212
5MAY 74010713
5WP74003976 Whirlpool Screw
7WP2003X030-00 Whirlpool Burner Grate
8MAY 74009780
9MAY 74004827
10MAY 74009978
10SCREW
11MAY 74009799
11WP98008544 Whirlpool Screw Assembly
12MAY 74009943
12MAY 74006536
12MAY 71001394
12WP90767 Whirlpool Screw
13MAY 74010710
13WP74005546 Whirlpool RU Spacer
13W11189172 Whirlpool Glide Drawer
14MAY 74010441
