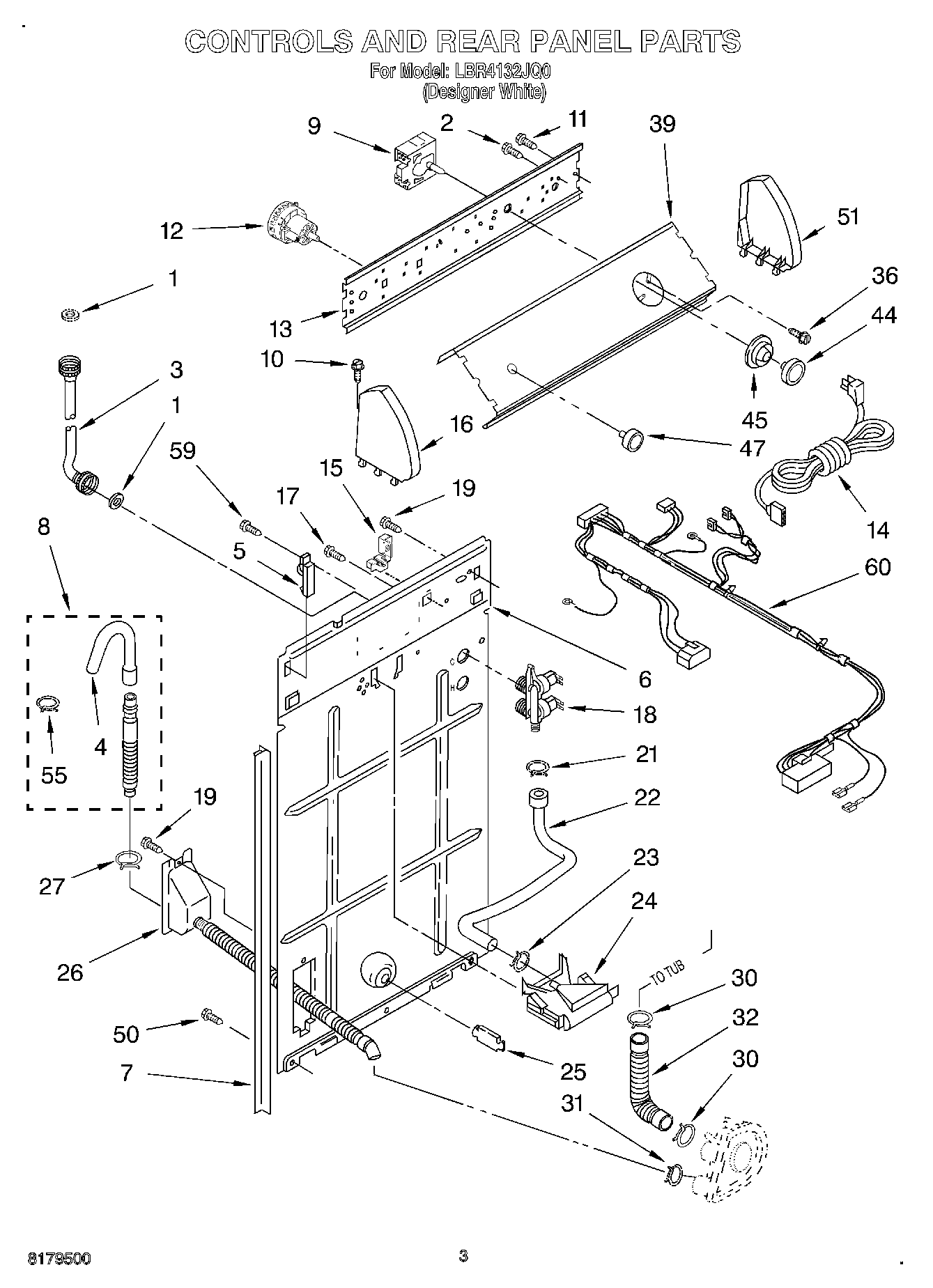

LBR4132JQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP388326 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339228 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP9740848 Whirlpool Dishwasher Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
36	WP3400064 Whirlpool Screw
39	Panel, Console
44	WP3364293 Whirlpool Timer Knob
45	Dial, Timer
47	WP3957799 Whirlpool Knob
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
55	WP3357331 Whirlpool Clamp
59	WP488729 Whirlpool Refrigerator Door Screw
60	Harness, Wiring
