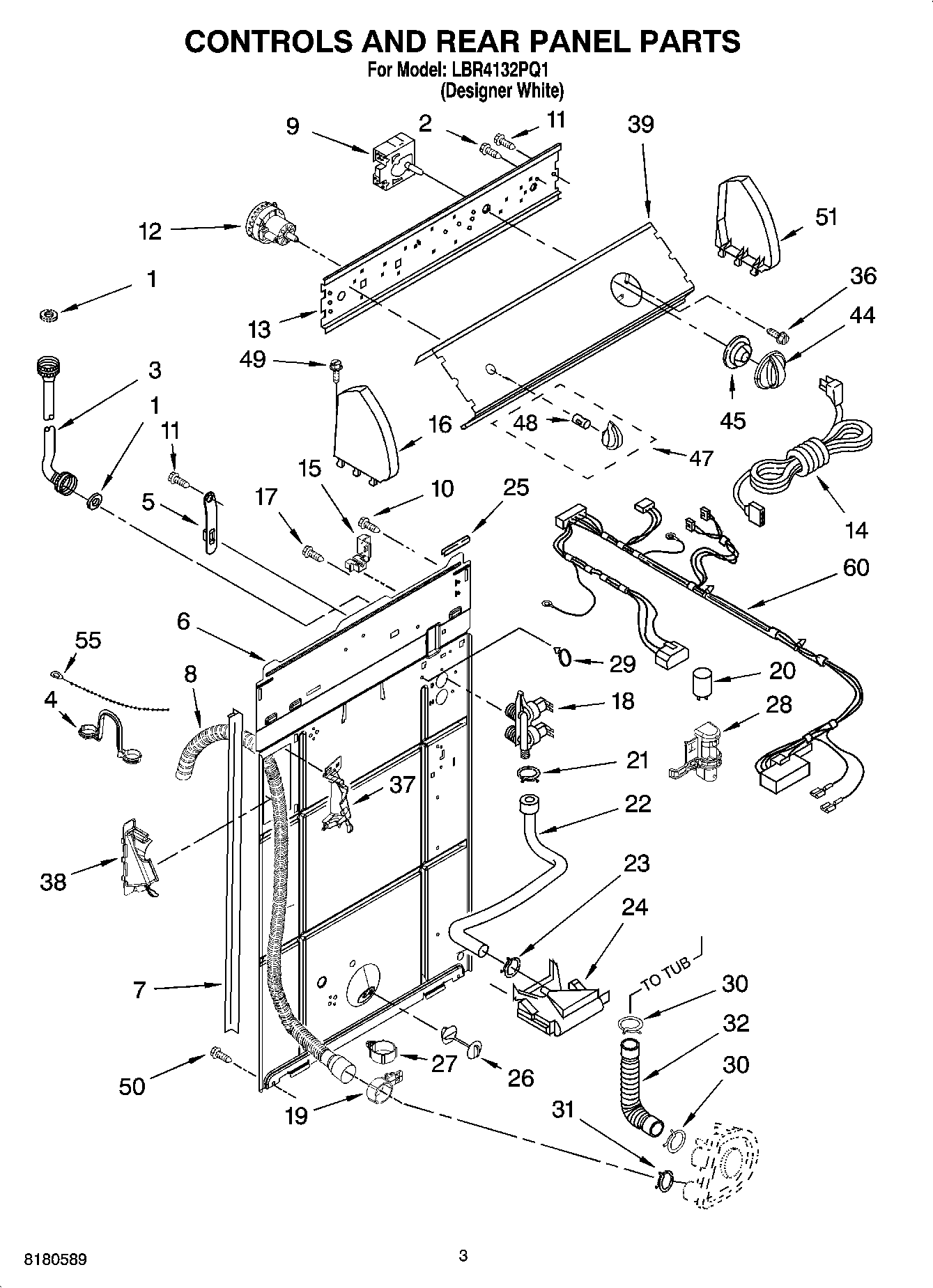

LBR4132PQ1 02 – CONTROL AND REAR PANEL PARTS

LBR4132PQ1 02 – CONTROL AND REAR PANEL PARTS

Written by

in

LBR4132PQ1 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8546681 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339228 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
17WP9740848 Whirlpool Dishwasher Screw
18285805 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20CAPACITOR
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28Clip, Capacitor
298559320 Whirlpool Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
36WP3400818 Whirlpool Screw
37(Left Half)
38(Right Half)
38WPW10096921 Whirlpool Hose
39Panel, Console
44Knob, Timer (White)
45WP8544947 Whirlpool Dial
47WPL 8544935
48WP8536939 Whirlpool Spring Clip
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
55WPW10339879 Whirlpool Wire Tie
60Harness, Wiring (For Detail See Page 9 & 10)
