LBR5232EQ2 03 – AGITATOR, BASKET AND TUB

LBR5232EQ2 03 – AGITATOR, BASKET AND TUB

Written by

in

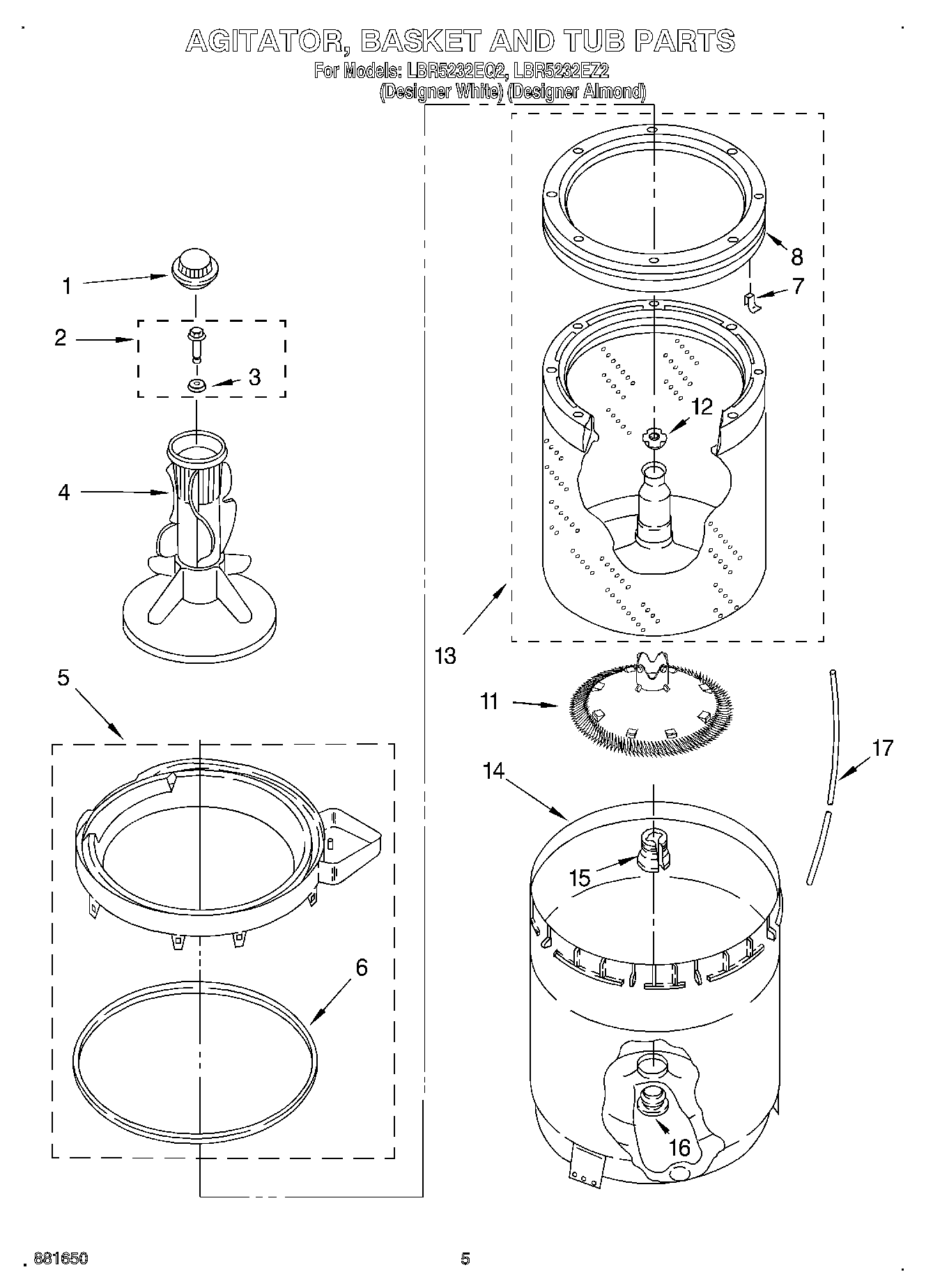

LBR5232EQ2 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4WP63235 Whirlpool Agitator Assembly
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP3956205 Whirlpool Balance Ring
8WP8519815 Whirlpool Washer Balance Ring Clip
11285868 Whirlpool Washer Filter Plug Kit
12WP21366 Whirlpool Spanner Nut
13Basket
14Tub
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17WP353244 Whirlpool Hose
