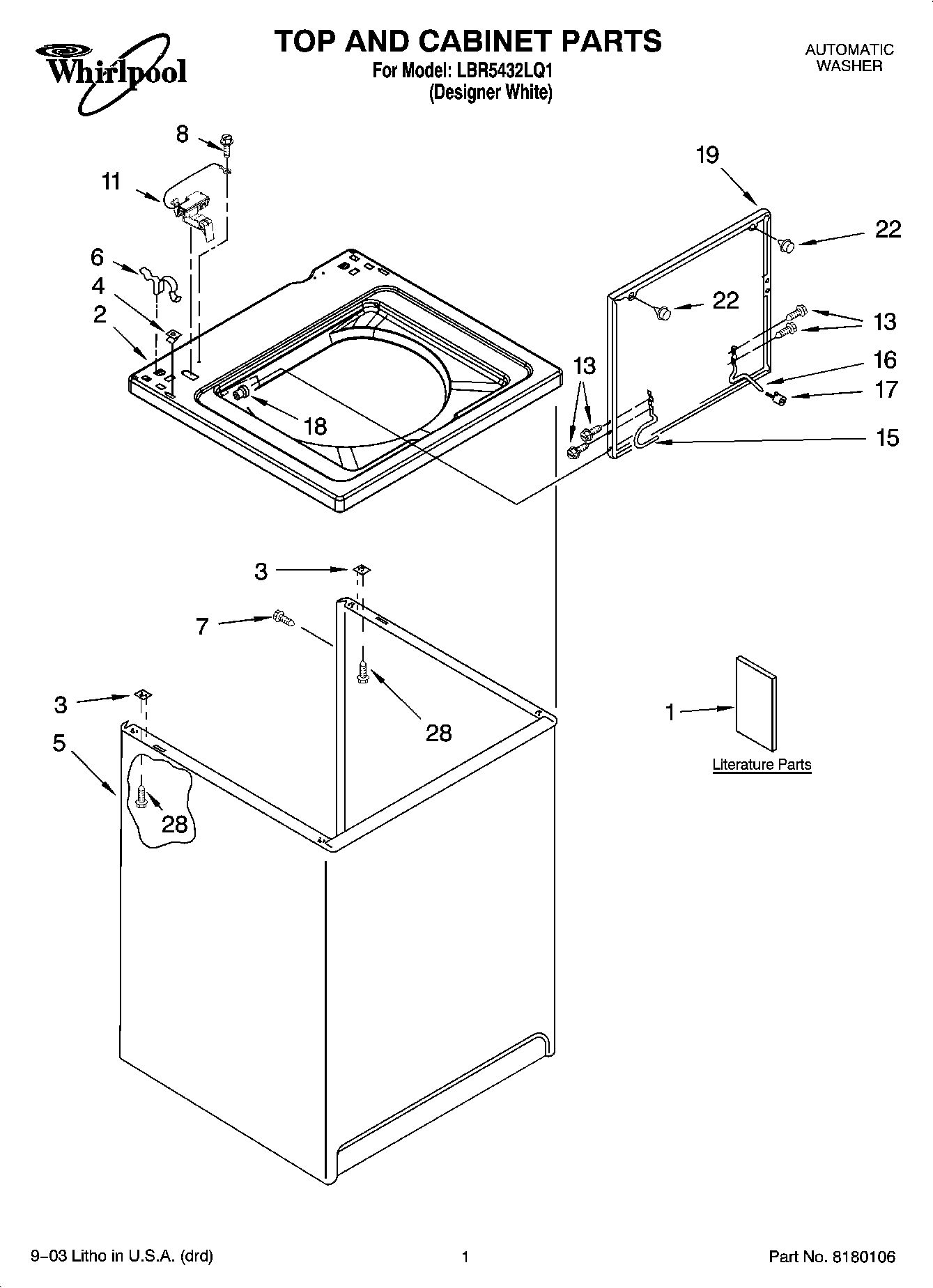

LBR5432LQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF REPAIR MANUALS
1	Following May Be Purchased
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Energy Guide)
1	Literature Parts (Feature Sheet)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Manual, (Washer) Do-It-Yourself
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
7	WP308685 Whirlpool Microwave Screw
8	WP3351614 Whirlpool Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	8318088 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193857 Whirlpool Lid Assembly
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
