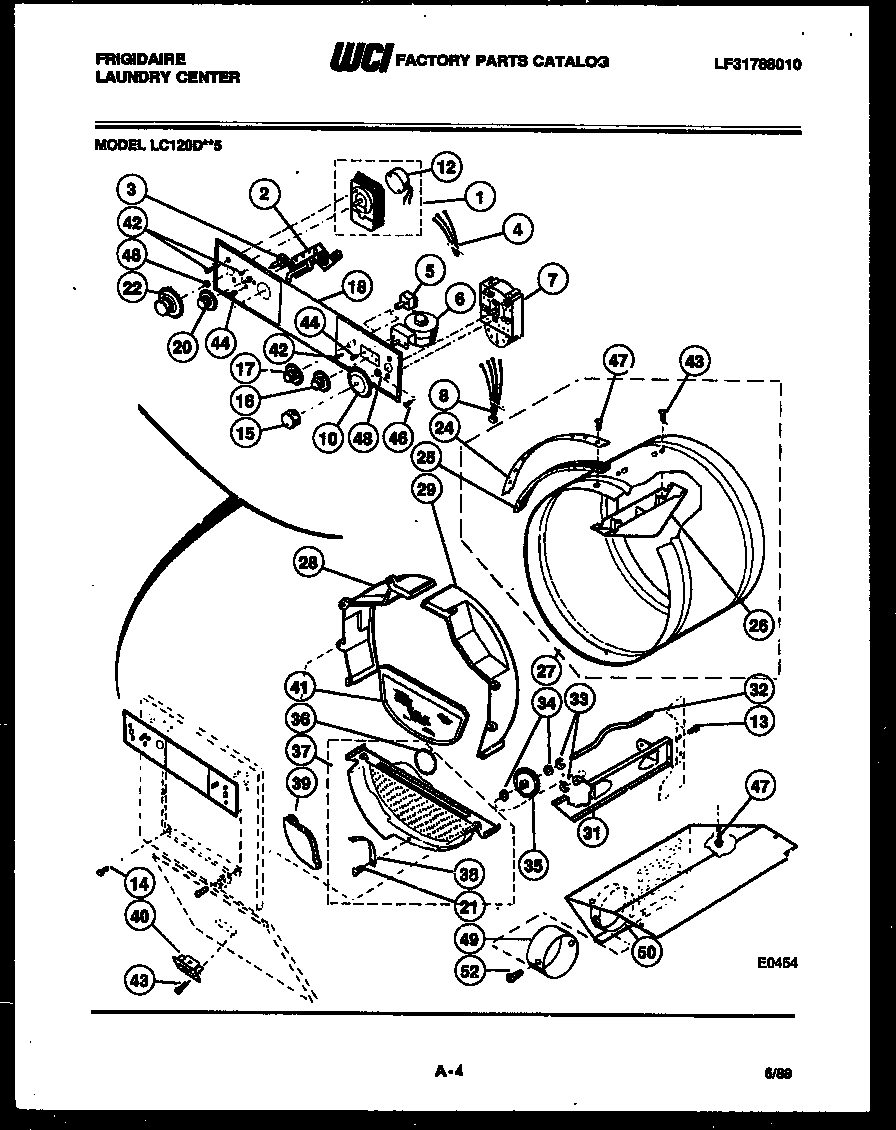

LC120DH5 03 – CONSOLE, CONTROL AND DRUM

Products

Position	Product
*12954	WCI 1134149
1	WCI 3016482
2	WCI 3017969
3	WCI 3016483
4	WCI 3016484
5	WCI 3017970
6	WCI 3016450
7	WCI 3016451
8	HARNESS-UPPER-WASHER-MOTOR
10	WCI 3017971
12	WCI 8010815
13	WCI 8011280
14	SCREWS (4)
15	WCI 3017972
16	WCI 8015841
17	WCI 8015842
18	WCI 3017973
20	WCI 8015851
22	WCI 8015852
24	WCI 0639864
25	WCI 8016240
25	WCI 1132356
26	WCI 8014895
27	WCI 8027669
28	WCI 8015830
29	WCI 8015829
31	WCI 3017901
31	WCI 3017902
32	WCI 8004076
33	WCI 8027670
34	WCI 7537238
35	WCI 8004077
36	WCI 0639377
37	WCI 8950156
38	WCI 0639296
39	WCI 1127466
40	WCI 3016458
40	WCI 3016456
40	WCI 3017974
41	WCI 0633870
42	WCI 8002284
43	WCI 8015832
43	SCREW-BAFFLE/DRUM (6)
46	WCI 8006636
47	WCI 8006547
48	WCI 8015493
49	WCI 3016459
50	WCI 3016460
52	WCI 8002339
