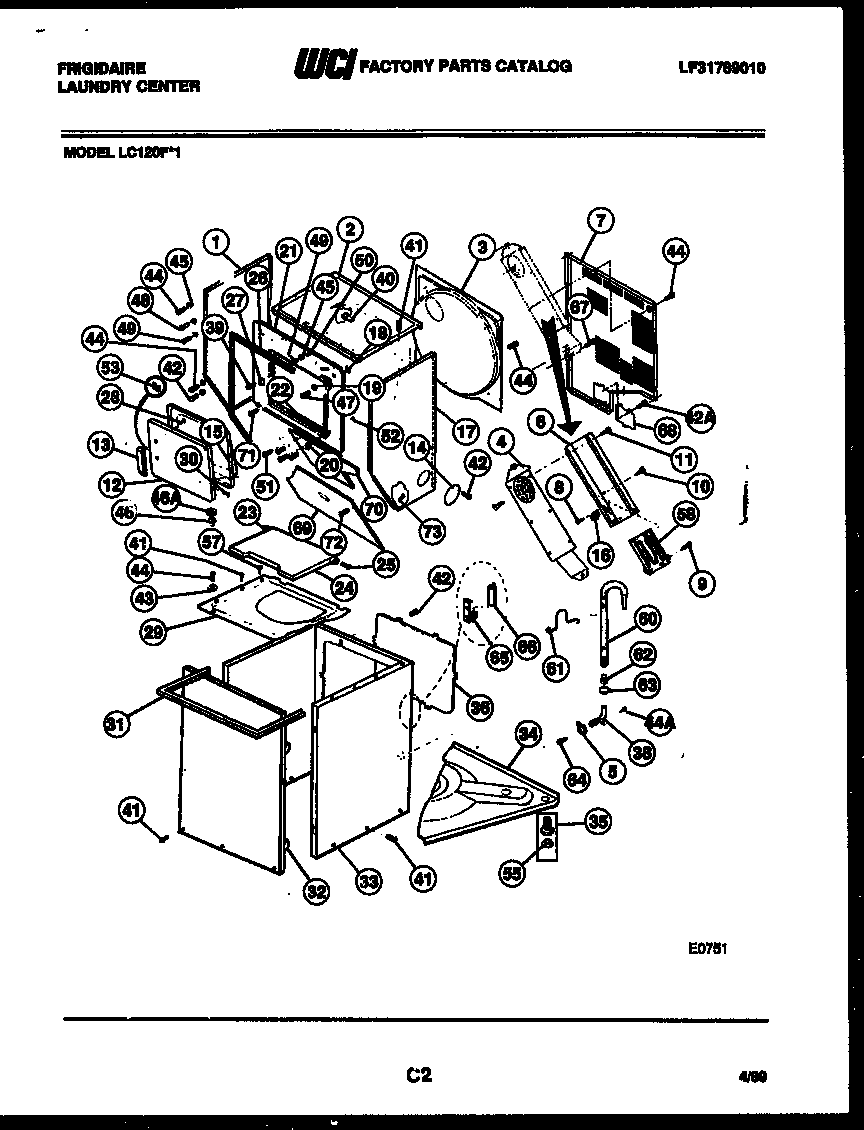

LC120FH1 02 – CABINET PARTS AND HEATER

Products

Position	Product
1	PANEL – L.H. DRYER (ALMOND)
2	PNL – TOP DRYER (ALMOND)
3	WCI 3017111
4	PANEL-FRONT
5	WCI 08004057
6	WCI 08015819
7	PANEL-VENT
9	WCI 08015791
10	5303015671 Frigidaire Bracket Termination Screw
11	218359202 Frigidaire Refrigerator Screw
12	WCI 08027654
13	HANDLE – DOOR (ALMOND)
14	WCI 02832585
15	WCI 08027662
16	WCI 08015853
17	PNL. – R.H. DRYER (ALMOND)
18	WCI 00639710
19	WCI 00639712
20	WCI 00639713
21	WCI 3016438
22	WCI 00639378
24	LID – WASHER (ALMOND)
25	WCI 08015844
26	WCI 08015857
27	WCI 08027658
28	131205100 Frigidaire Screw
29	PNL-TOP-WASHER (ALMD)
30	WCI 08004125
31	WCI 08015789
32	WCI 02833352
33	CABINET – WASHER (ALMOND)
34	WCI 08004025
35	LEG-LEVELING ASSY (4)
36	WCI 08015788
38	COUPLER – DRAIN HOSE
39	WCI 08027659
40	WCI 01126012
41	WCI 08006670
42	131302800 Frigidaire Drum Vane Screw
42A	131168200 Frigidaire Dryer Screw
44	WCI 08011280
44A	WCI 3161453
45	WCI 00639344
46A	WASHER
46	WCI 08027663
47	WCI 08006549
