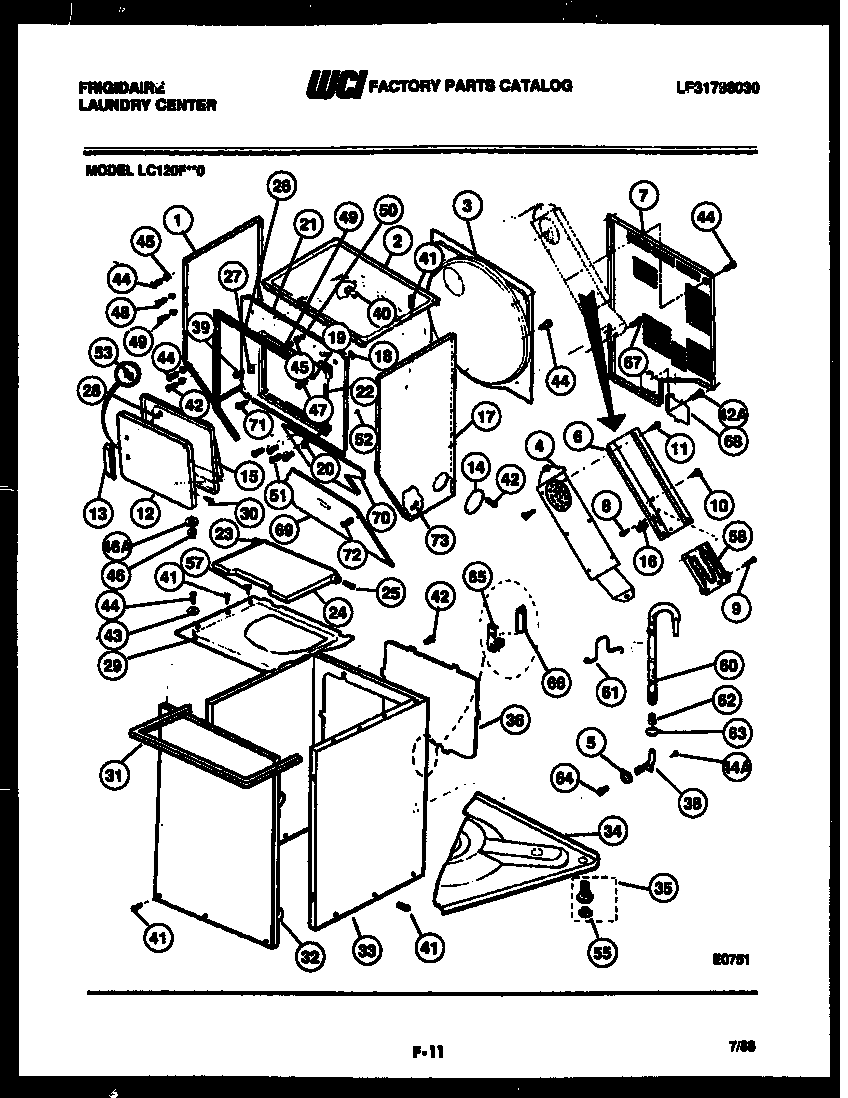

LC120FL0 02 – CABINET PARTS AND HEATER

LC120FL0 02 – CABINET PARTS AND HEATER

Written by

in

LC120FL0 02 – CABINET PARTS AND HEATER

Products

PositionProduct
*16689WCI 8027667
*16689WCI 8001666
1WCI 8015811
2WCI 8027498
3WCI 3017111
4WCI 8015820
5WCI 8004057
6WCI 8015819
7PANEL-VENT
9WCI 8015791
10WCI 8010765
12WCI 8027654
13WCI 8027657
14WCI 2832585
15WCI 8027662
16WCI 8015853
17WCI 8015808
18WCI 0639710
19WCI 0639712
20WCI 0639713
21WCI 3016438
22WCI 0639378
24WCI 8007743
25WCI 8015844
26WCI 8015857
27WCI 8027658
29PNL-TOP-WASHER (ALMD)
31WCI 8015789
32WCI 2833352
33WCI 8007754
34WCI 8004025
35LEG-LEVELING ASSY (4)
36WCI 8015788
38COUPLER – DRAIN HOSE
39WCI 8027659
40WCI 1126012
42AWCI 8002339
42WCI 5436605
44WCI 8011280
44AWCI 3161453
45WCI 0639344
46WCI 8027663
46AWASHER
48SCREW (2)
49WCI 8006546
50WCI 8015790
51WCI 8027664
51ASCREW-HINGE/LINT HSG
52WCI 1126075
53WCI 8027665
55WCI 8004120
57WCI 8004089
58WCI 8015795
60WCI 3161454
61WCI 8002362
62WCI 8011277
63WCI 8002361
63AWCI 8027666
64WCI 8014555
65WCI 8014902
66WCI 8014903
67WCI 8006547
68WCI 8015822
69WCI 8015817
70WCI 3016443
71SCREWS (4)
72WCI 8011318
73WCI 8006556
