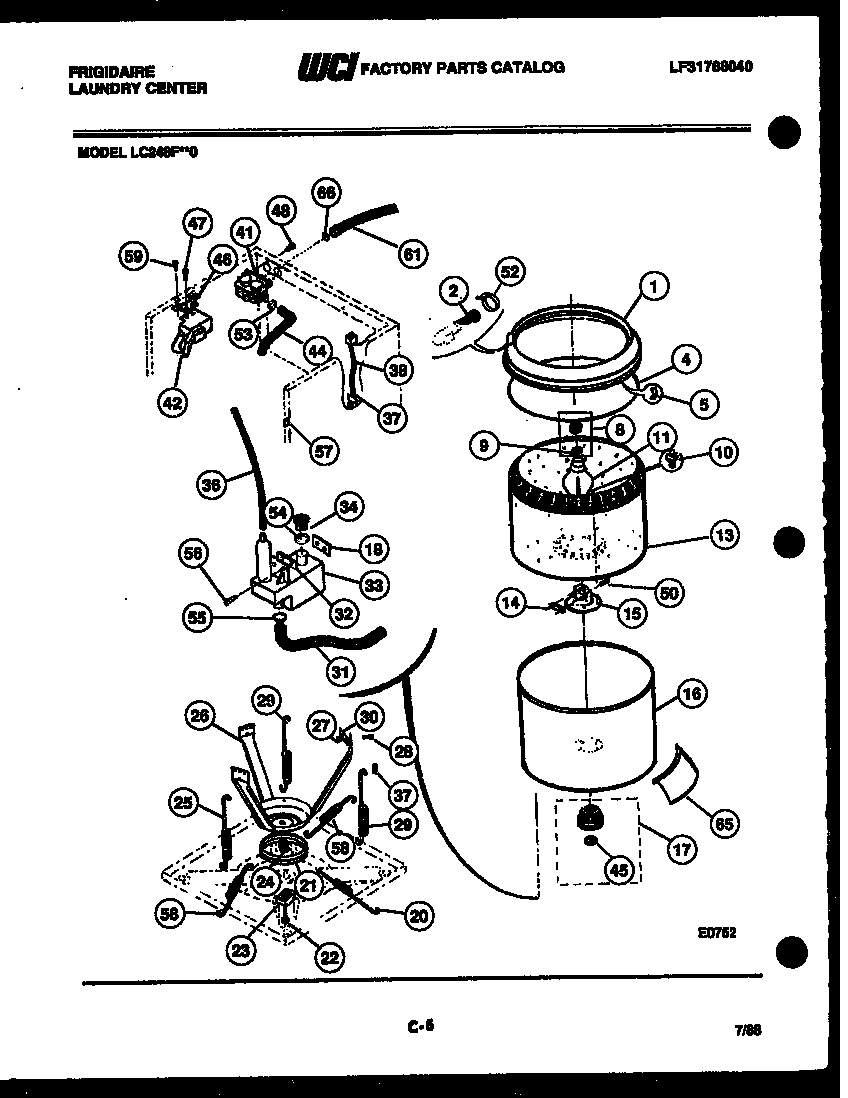

LC248FW0 05 – TUBS, WATER VALVE AND LID SWITCH

LC248FW0 05 – TUBS, WATER VALVE AND LID SWITCH

Written by

in

LC248FW0 05 – TUBS, WATER VALVE AND LID SWITCH

Products

Position	Product
*16924	WCI 8950157
*16925	WCI 8014893
*16925	WCI 8014892
1	WCI 8027575
2	WCI 8027515
4	WCI 8002430
5	WCI 8002429
8	WCI 8006677
9	WCI 8002427
10	WCI 8027519
11	WCI 3161485
13	WCI 8027576
14	WCI 8014907
15	WCI 8014908
16	WCI 8057443
17	WCI 8027536
18	WCI 8011303
20	WCI 8006564
21	WCI 8002385
22	WCI 8027679
23	WCI 8004066
24	WCI 8002382
25	WCI 8006565
26	WCI 8004065
27	WCI 8002377
28	WCI 8002378
29	WCI 8006566
30	WCI 8002379
31	WCI 8008997
32	WCI 8015845
33	WCI 8002366
34	WCI 8006674
36	WCI 8015785
37A	WCI 8004083
38	WCI 3017109
41	WCI 8015532
42	WCI 3017110
44	WCI 8006571
45	WCI 8002401
46	WCI 8004084
47	WCI 8011280
48	WCI 8015533
50	WCI 8027517
52	WCI 8008472
53	WCI 8006572
54	WCI 8002367
55	WCI 8014913
56	WCI 8006548
57	WCI 8004129
58	WCI 8006573
59	SCREW (2)
61	WCI 8002443
61	WCI 8011264
65	WCI 8011275
66	WCI 8015499
