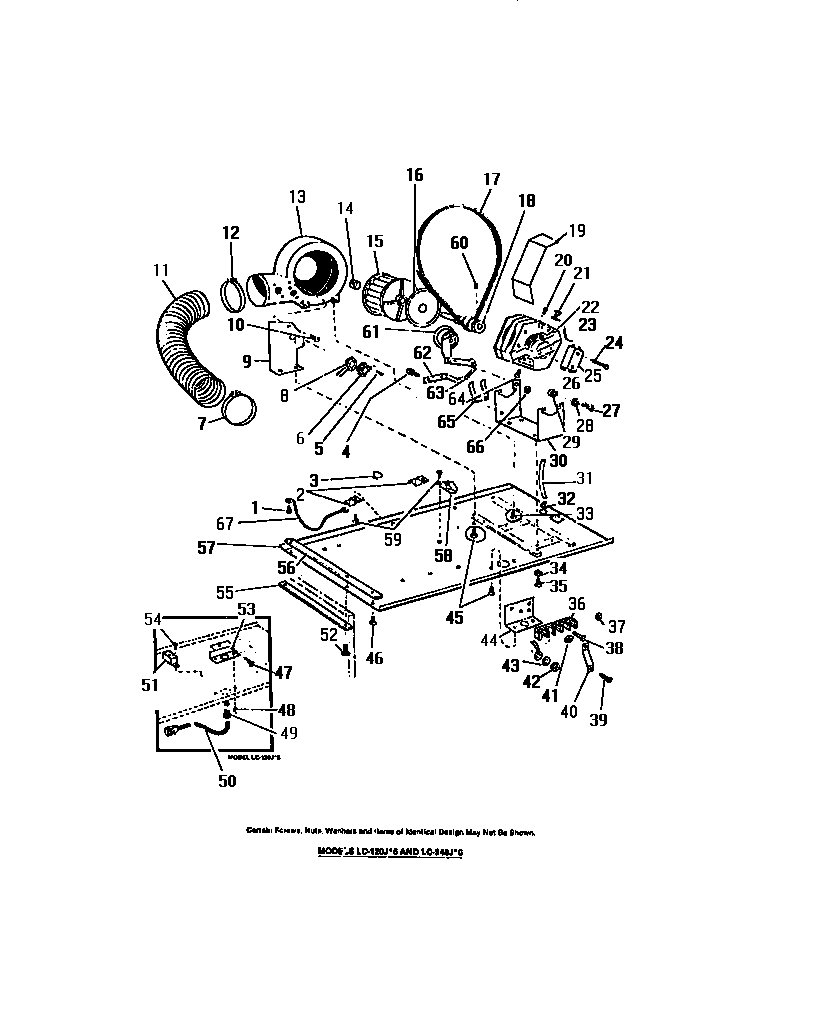

LC248JL6 04 – DRYER MOTOR, BASE, HOUSING AND MOUN

LC248JL6 04 – DRYER MOTOR, BASE, HOUSING AND MOUN

Written by

in

LC248JL6 04 – DRYER MOTOR, BASE, HOUSING AND MOUN

Products

Position	Product
2	WCI 1127285
3	WCI 8006557
4	WCI 6564029
5	WCI 8004061
6	WCI 8009001
8	WCI 8008892
9	BRKT-THERMO MTG
11	WCI 633925
12	WCI 5436685
13	WCI 633872
14	WCI 638953
15	WCI 639463
16	WCI 639342
17	WCI 639357
18	WCI 639343
19	WCI 8004492
22	WCI 1134202
23	WCI 8011236
24	WCI 1129467
25	WCI 8004123
26	WCI 8011237
27	WCI 1127152
28	WCI 1125984
29	WCI 639370
30	WCI 639339
31	WCI 8014890
32	WCI 8006559
33	SCREW-BAFFLE/DRUM (6)
34	WCI 8002468
35	SCREW (6)
36	WCI 8001566
37	WCI 8001572
38	WCI 8006548
39	WCI 8004113
40	WCI 8014889
41	WCI 8001558
42	WCI 8001569
43	WCI 8001570
44	WCI 8006555
46	WCI 639312
47	WCI 8004086
48	SCREW (4)
49	WCI 8004647
50	WCI 8004650
51	WCI 8004648
52	SCREW (4)
53	WCI 8004645
54	WCI 8004649
55	BRACE (2)
56	PLATE (2)
57	WCI 8007730
58	WCI 8004087
59	SCREWS (2)
60	WCI 639383
61	WCI 8008996
62	WCI 639347
63	WCI 639862
64	WCI 8006556
65	WCI 639340
66	WCI 639393
