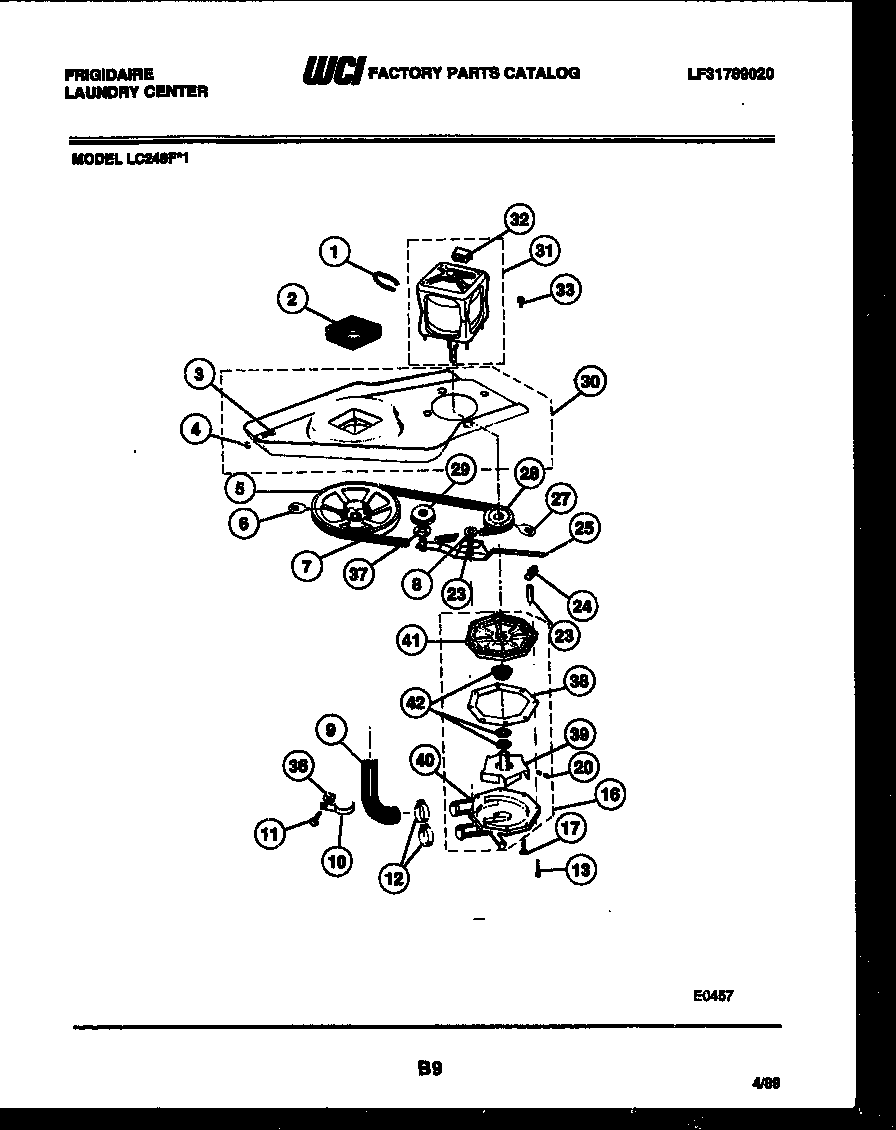

LC248L1 07 – WASHER DRIVE SYSTEM AND PUMP

Products

Position	Product
1	5304464772 Frigidaire Refrigerator Wire Tie
2	WCI 08002473
3	WCI 08002471
4	WCI 08002470
5	WCI 08014923
6	5303270023 Frigidaire Screw Set
7	5303280326 Frigidaire Drive Belt Assembly
8	WCI 08027535
9	WCI 08015079
10	WCI 08004052
11	216858001 Frigidaire Refrigerator Screw
12	WCI 3161302
13	WCI 08002390
16	WCI 08015864
17	5304401796 Frigidaire Screws
20	WCI 08002392
23	WCI 08014925
24	WCI 08002456
25	WCI 08950227
27	WCI 08002453
28	WCI 08006686
29	5304527822 Frigidaire Pulley
30	WCI 08006581
31	WCI 08014901
32	WCI 08014888
33	WCI 08001676
36	WCI 08004096
38	WCI 08002396
39	IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASKET, IMPELLE
40	WCI 08027680
41	WCI 08002397
42	WCI 08002395
