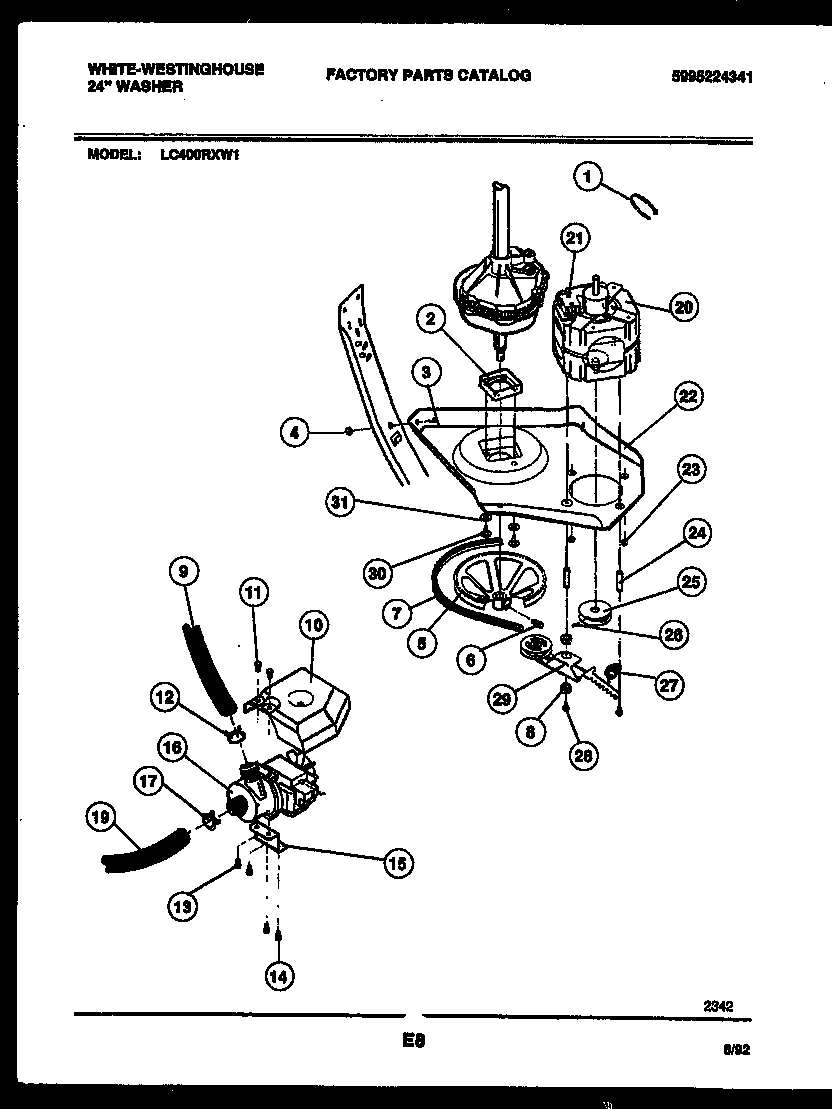

LC400RXD1 05 – WASHER DRIVE SYSTEM AND PUMP

Products

Position	Product
*63981	5304527822 Frigidaire Pulley
*63981	SPRING WASHER
*63981	CLAMP
1	5303161300 Frigidaire Strap
2	WCI 5377009100
3	WCI 3161211
4	WCI 3161212
5	WCI 5303205951
6	5303270023 Frigidaire Screw Set
7	5303280326 Frigidaire Drive Belt Assembly
8	WCI 08027535
9	WCI 5303284140
10	WCI 5303283071
12	WCI 5303283073
13	5303283072 Frigidaire Shield Screw
14	WCI 3205020
15	WCI 5303284141
16	WCI 5303285135
17	WCI 5303283076
19	WCI 5303284142
20	WCI 5308015502
21	WCI 5308014888
22	WCI 08002472
23	HEX NUT
24	WCI 5303161303
25	WCI 5308006686
26	WCI 5303206869
27	SPRING TENSION
28	WCI 5303283080
29	WCI 5303937001
30	SCREW (2)
31	RUBBER SPACER (2)
