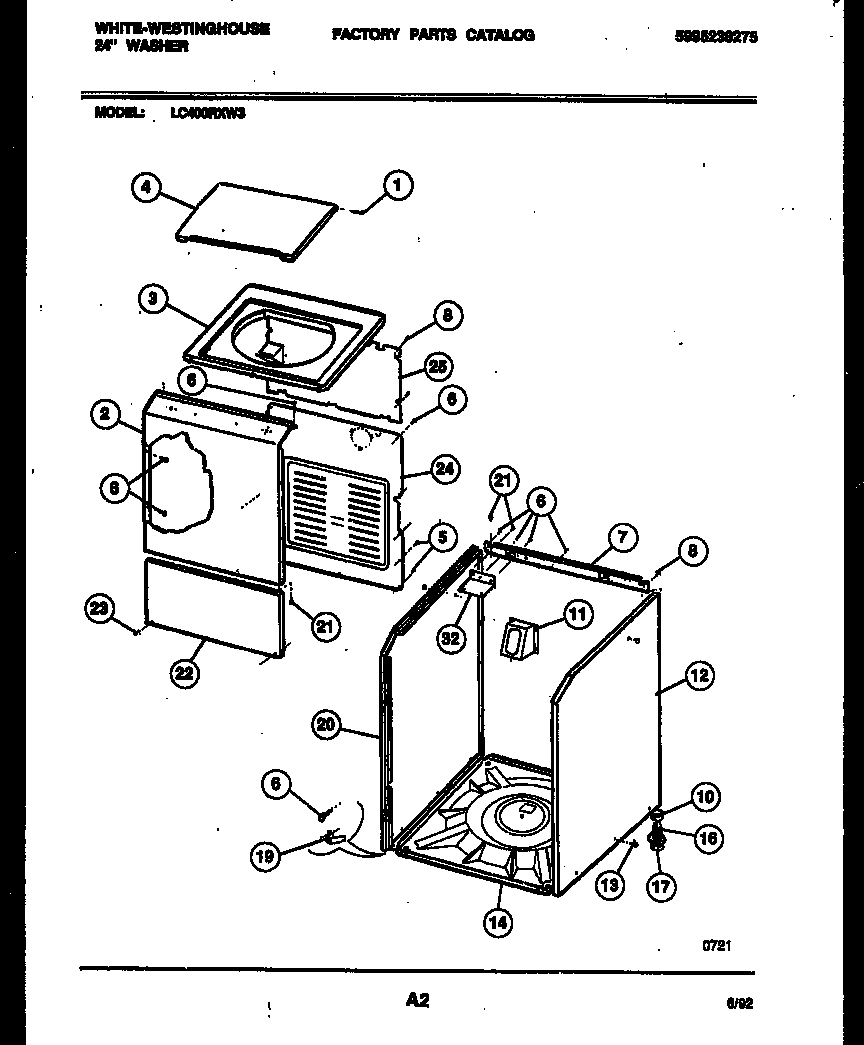

LC400RXD3 02 – CABINET PARTS

Products

Position	Product
*75263	WCI 3205919
*75263	PAINT-6 OZ-ALMOND
1	WCI 3161236
2	WCI 5303269879
3	WCI 3205917
4	WCI 3200863
6E	SCREW-BACK PANEL/SUPPORT-TOP CENTER
6B	WCI 5303283840
6	SCREW
7	WCI 08027553
8A	SCREW (3)
8B	SCREW
10	WCI 08027554
11	WCI 3205918
12	WCI 5303293587
13	131205500 Frigidaire Screw
14	WCI 131157710
16	134548800 Frigidaire Washer Leg Levelling
17	PAD-LEG
19	WCI 08027560
20	WCI 5303293585
21	5303015671 Frigidaire Bracket Termination Screw
22	WCI 5303937067
23	SCREW
24	WCI 5303284130
25	WCI 3205926
32	WCI 3205928
