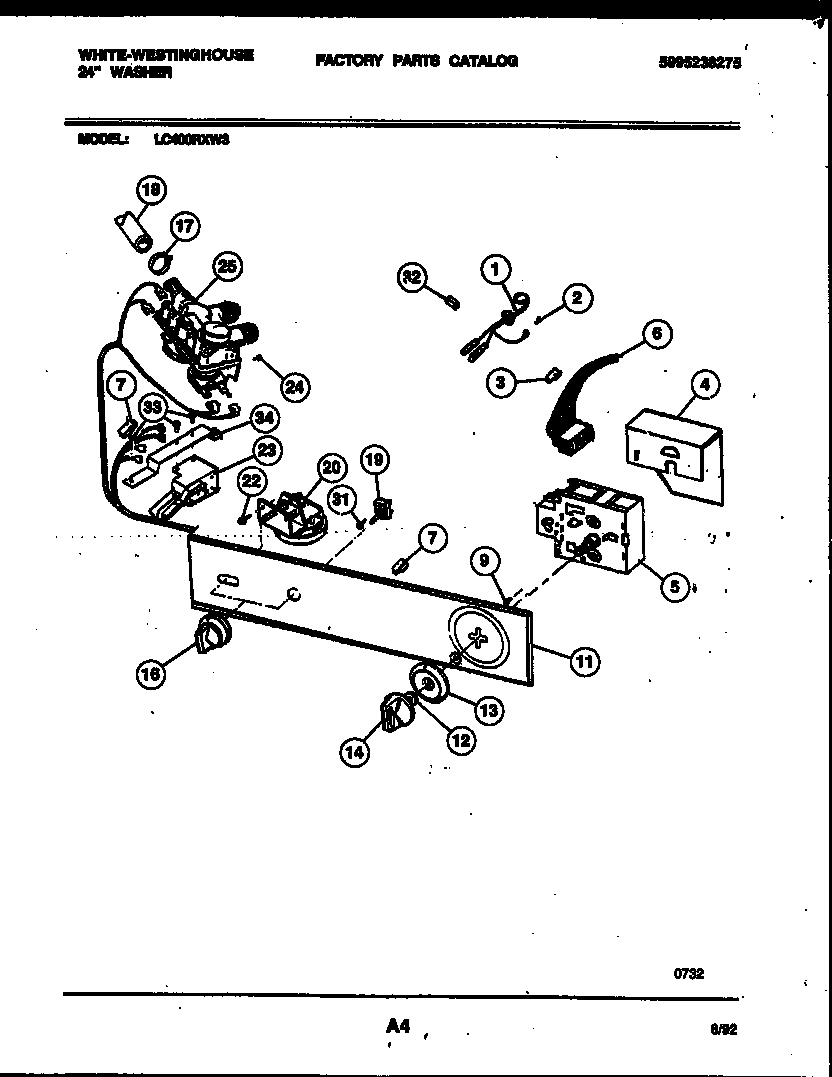

LC400RXW3 03 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*75269	WCI 3205935
*75268	5303015671 Frigidaire Bracket Termination Screw
*75269	WCI 08011251
*75268	WCI 5303284137
*75268	WCI 08027572
*75269	WCI 3205934
1	WCI 3205929
2	134154100 Frigidaire Screw 10-32 x 0.375 Co
3	WCI 08008454
4	WCI 3205931
5	WCI 5303284686
6	WCI 131160500
7	WCI 08008458
9	SCREW (2)
11	WCI 131059810
12	Spacer,washer ,timer shaft
13	WCI 5303280331
14	WCI 5303280332
16	WCI 5303280333
17	CLAMP HOSE
18	HOSE-VALVE TO INLET
19	SWITCH-WATER TEMP
20	WCI 131065500
22	131168200 Frigidaire Dryer Screw
23	WCI 5303209725
24	WCI 5303010202
25A	WCI 08008466
25B	WCI 5376138011
25	134190200 Frigidaire Washer Water Valve
31	WCI 3161259
32	WCI 08004657
33A	SCREW (3)
33	SCREW (2)
34	BRACKET-LID LOCK & SW ASSEMBLY
