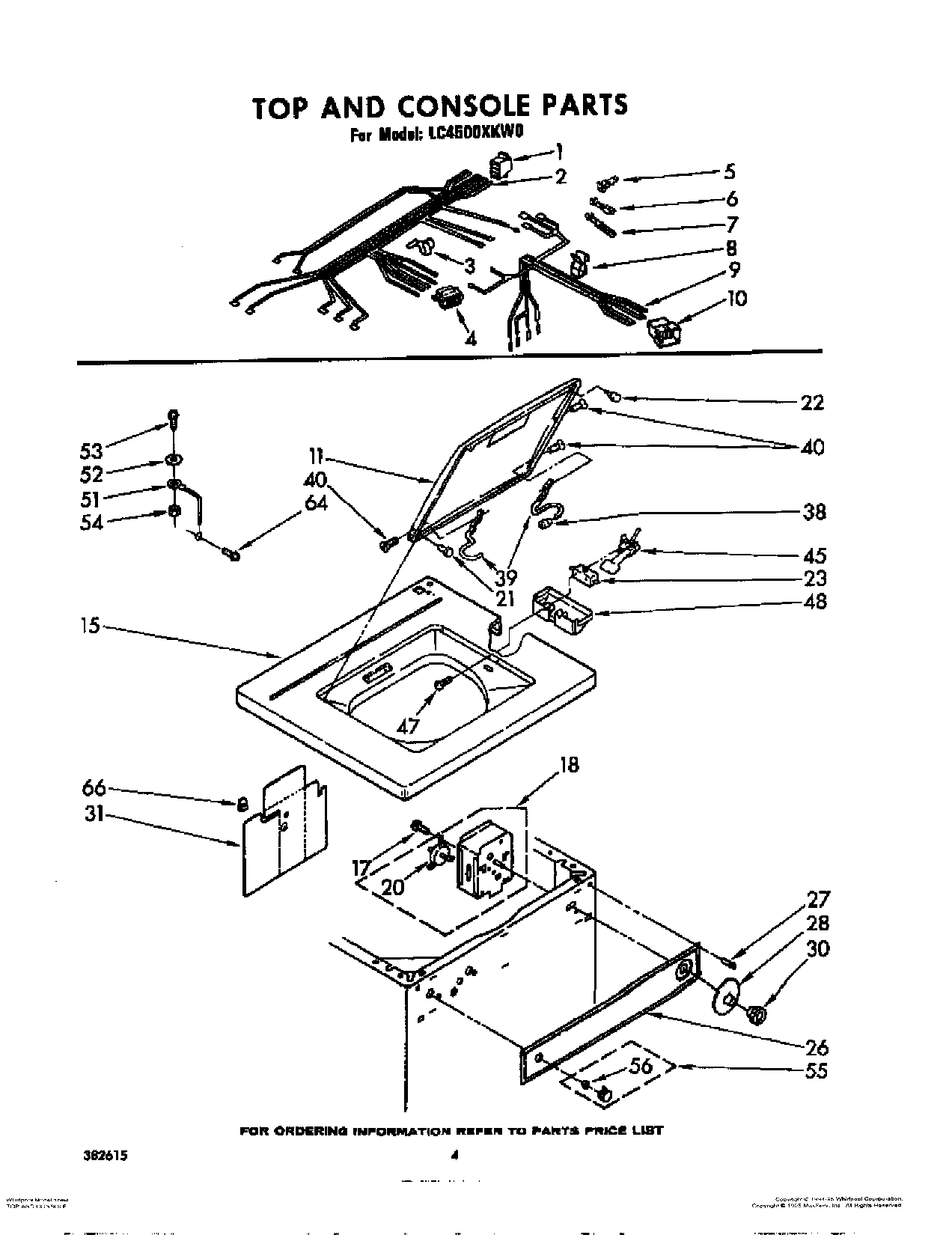

LC4500XKW0 03 – TOP AND CONSOLE

LC4500XKW0 03 – TOP AND CONSOLE

Written by

in

LC4500XKW0 03 – TOP AND CONSOLE

Products

PositionProduct
1Plug, Terminal (Cabinet Harness)
2Harness, Upper
3WP90016 Whirlpool Clip
4W10876590 Whirlpool Connector
5Terminal, Female
6WP94614 Whirlpool Terminal
7WP596797 Whirlpool Terminal
8Clip, Harness
9Harness, Lower
10Cap, Terminal (Console Harness)
11Lid (White)
11Lid (Almond)
11Lid (Golden Harvest)
11Lid (New Avocado)
15Top (New Avocado)
15Top (White)
15Top (Almond)
15Top (Golden Harvest)
17WP356418 Whirlpool Screw
18Timer, Disconnect
20Motor, Timer 60 Hz.
21Bumper, Rear Lid
22Bumper, Front Lid
23W10820036 Whirlpool Door Switch Kit
26Panel, Control
27Rivet
28Dial, Timer
30WPL 356500
31Shield, Timer
38WP21258 Whirlpool Washer Lid Hinge Bearing
39WP91770 Whirlpool Hinge
40SCREW
45Switch Actuator Assembly
47Screw & Washer, Lid Switch (2)
48WP359231 Whirlpool Shield
51Wire, Ground
52Washer, Lock
53WP308544 Whirlpool Screw
54W10080180 Whirlpool Nut
55Control Knob Assembly
56Clip
64WP488234 Whirlpool Air Conditioner Screw
66Clip, Push-On
