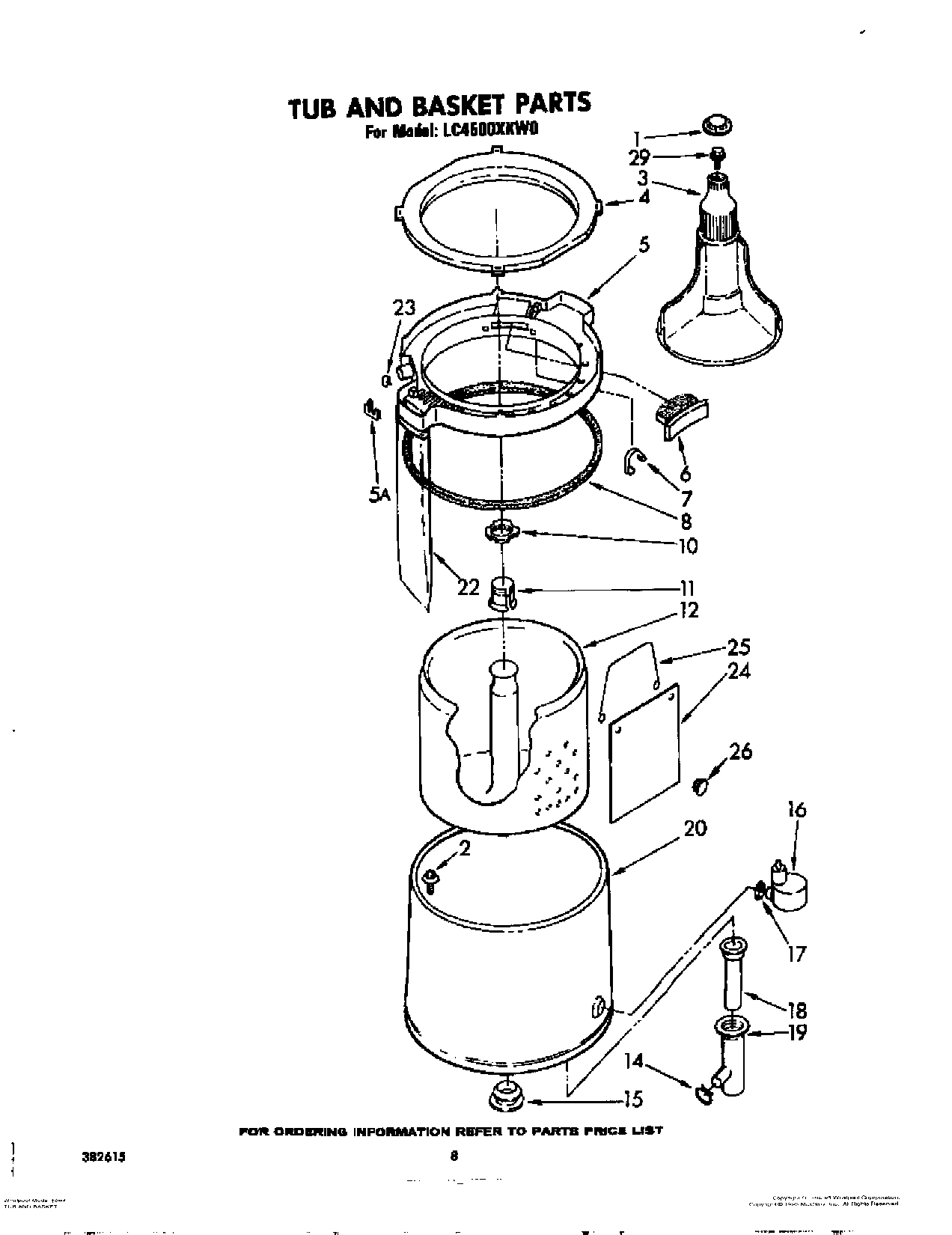

LC4500XKW0 06 – TUB AND BASKET

Products

Position	Product
1	Cap, Agitator
2	Screw & Washer, Tub (4)
3	Agitator
4	Shield, Tub Ring
5	Tub Ring Retainer Kit (Used To Retain Tub Ring Shield If One or More Tub Ring Tabs Are Broken. Kit C
5	Tub Ring
6	Insert, Filter
7	Clip, Tub Ring (5)
8	Gasket, Tub Ring
10	Locknut
11	Block, Basket Drive
12	Basket Assembly
14	WP285655 Whirlpool Hose Clamp
15	W10814296 Whirlpool Washer Center Post Seal Gasket
16	Air Dome Assembly
17	Seal
18	Funnel, Drain
19	Manifold, Tub Outlet
20	Tub
22	356398 Whirlpool Tube
23	8577411 Whirlpool Pad
24	Shield, Splash
25	Support, Splash Shield
26	Clip, Push-On
29	WP358237 Whirlpool Agitator Bolt
