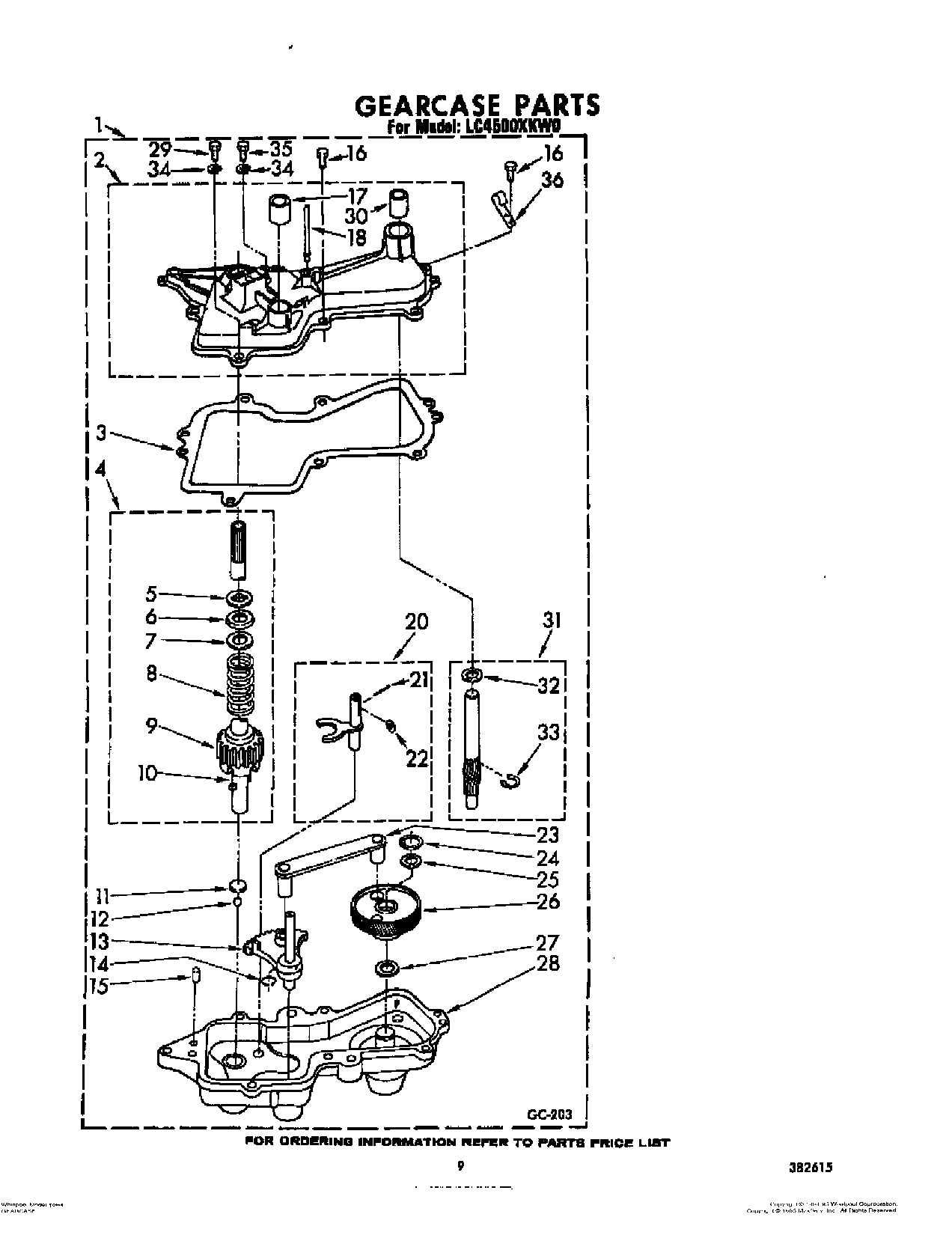

| 1 | Gearcase (Complete) |
| 2 | Cover, Gearcase |
| 3 | Gasket, Gearcase |
| 4 | Shaft, Agitator |
| 6 | Seal, Agitator Shaft |
| 7 | Shield, Agitator Spring |
| 8 | Spring, Agitator Shaft |
| 9 | Gear, Agitator Shaft |
| 10 | Shaft, Agitator |
| 11 | 285205 Whirlpool Bearing |
| 13 | Gear, Sector |
| 14 | Ring, Retainer |
| 15 | Pin, Dowel |
| 16 | Bolt, 5/16-24 x 3/4 (4) |
| 17 | Bearing, Gear Fork |
| 18 | Support, Brake Shoe Yoke |
| 20 | Fork, Agitator Gear |
| 21 | Pin, Gear Fork Shaft |
| 22 | Roller, Gear Fork Shaft |
| 23 | Rod, Connecting |
| 24 | Ring, Retaining |
| 25 | Washer, Retainer |
| 26 | Gear, Main Drive |
| 27 | Washer, Thrust |
| 28 | Gearcase |
| 29 | Bolt, 5/16-24 x 1-1/8 (2) |
| 30 | Bearing, Drive Pinion |
| 31 | Pinion, Drive |
| 32 | Washer, Drive Pinion |
| 33 | Ring, Retainer |
| 34 | Lockwasher, 5/16 |
| 35 | Screw, 5/16-24 x 1-3/4 (1) |
| 36 | 350572 Whirlpool Oil Transmission 15 Oz |
| 36 | Bracket, Hose |
