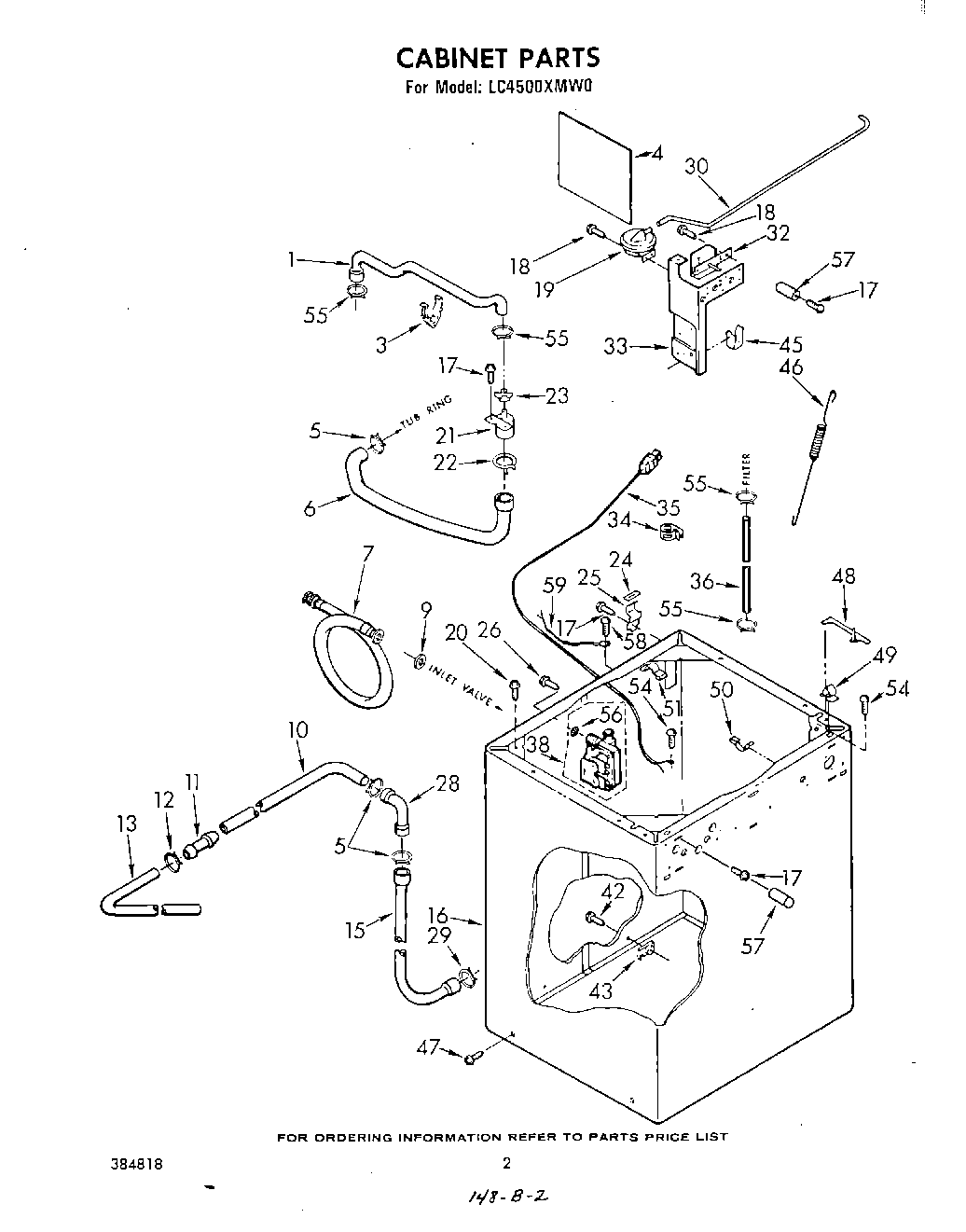

LC4500XMW0 02 – CABINET

Products

Position	Product
1	Hose, Water Inlet
3	356746 Whirlpool Clip
4	Barrier, Splash
5	Clamp, Hose
6	Hose, Water Inlet
7	WP89503 Whirlpool Washer Fill Hose
9	WP16123 Whirlpool Washer
10	96746 Whirlpool Drain Hose Assembly
11	WP16272 Whirlpool Hose Coupling
12	WP356138 Whirlpool Hose Clamp
13	Hose, Drain
15	Hose, Drain
16	Cabinet (Golden Harvest)
16	Cabinet (Almond)
16	Cabinet (White)
18	Screw (2)
19	Switch, Water Level
20	SCREW
21	WP356363 Whirlpool Siphon Break
22	WP616099 Whirlpool Clamp
23	WP356471 Whirlpool Cap
24	18849 Whirlpool Pad
25	Hinge (L.H.)
25	Hinge, (R.H.)
26	WP3351614 Whirlpool Screw
28	W11213338 Whirlpool Connector
29	WP285655 Whirlpool Hose Clamp
30	WP353244 Whirlpool Hose
32	Switch, Water Temperature (Alt.)
33	Bracket, Control
34	Bracket
35	Cord, Power (60 Hz.)
36	Hose, Pump To Filter
38	285805 Whirlpool Washer Water Inlet Valve
42	Screw, 10-16 x 1 (2)
43	Spacer, Cabinet (2)
45	Clamp, Hose
46	Spring, Hose Retaining
47	WP273556 Whirlpool Screw
48	Pad, Top (R.H.)
48	Pad, Top (L.H.)
49	Lock, Front Top
50	8528351 Whirlpool Clip
51	Clip, Harness
54	WP488234 Whirlpool Air Conditioner Screw
55	WP596669 Whirlpool Hose Clamp
56	WP96160 Whirlpool Washer Inlet Valve Screen
57	W10491983 Whirlpool Tine Tip
59	WPL 364089
