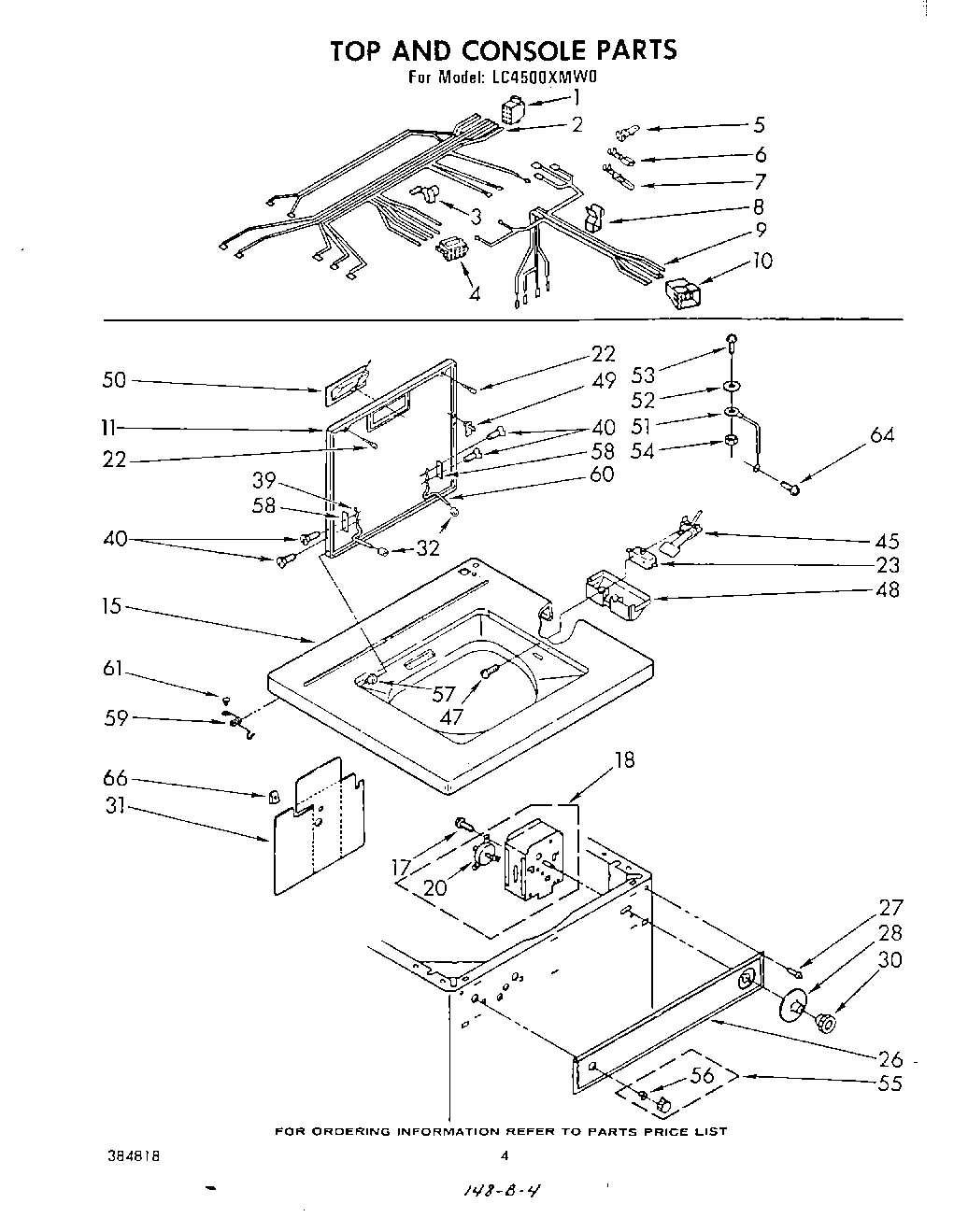

LC4500XMW0 03 – TOP AND CONSOLE

Products

Position	Product
1	Plug, Terminal (Cabinet Harness)
2	Harness, Upper
3	WP90016 Whirlpool Clip
4	W10876590 Whirlpool Connector
5	Terminal, Female
6	WP94614 Whirlpool Terminal
7	WP596797 Whirlpool Terminal
8	Clip, Harness
9	Harness, Lower
10	Cap, Terminal (Console Harness)
11	Lid (White)
11	Lid (Almond)
11	Lid (Golden Harvest)
15	WP384693 Whirlpool Top
15	Top (Golden Harvest)
15	Top (Almond Model)
17	WP356418 Whirlpool Screw
18	Timer, 60 Hz. (Mallory)
20	Motor, Timer 60 Hz.
22	80011 Whirlpool Washer Lid Bumper Kit of 2
23	W10820036 Whirlpool Door Switch Kit
26	Panel, Control
27	Rivet, Plastic (4)
28	Dial, Timer
30	WPL 356500
31	Shield, Timer
32	Bumper, Lid Hinge
39	384458 Whirlpool Hinge Assembly
40	SCREW
45	Actuator, Lid Switch
47	Screw & Washer, Lid Switch (2)
48	WP359231 Whirlpool Shield
49	WP358684 Whirlpool Strike Assembly
50	Handle, Lid (Golden Harvest)
50	Handle, Lid (Almond)
50	Handle, Lid (White)
51	Wire, Ground
52	Washer, Lock
53	WP308544 Whirlpool Screw
54	W10080180 Whirlpool Nut
55	Control Knob Assembly
56	Clip
57	WP21258 Whirlpool Washer Lid Hinge Bearing
58	WP21097 Whirlpool Pad
59	Spring, Lid (R.H.) (Includes Illus. 10)
59	Spring, Lid (L.H.) (Includes Illus 10)
60	384459 Whirlpool Hinge
61	Plug, Button
64	WP488234 Whirlpool Air Conditioner Screw
66	Clip, Push-On
