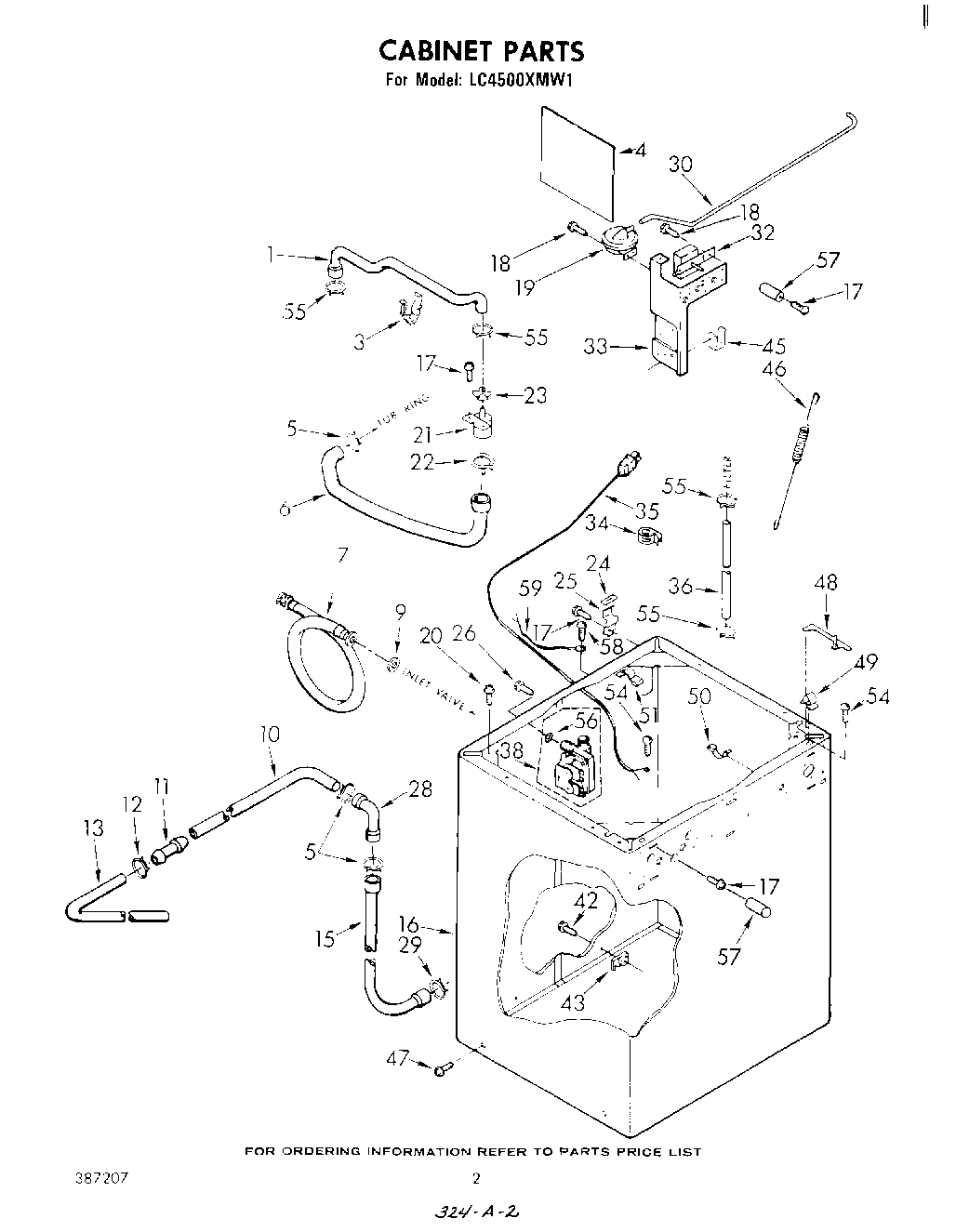

| 1 | Hose, Water Inlet |
| 3 | 356746 Whirlpool Clip |
| 4 | Barrier, Splash |
| 5 | Clamp, Hose |
| 6 | Hose, Water Inlet |
| 7 | WP89503 Whirlpool Washer Fill Hose |
| 9 | WP16123 Whirlpool Washer |
| 10 | 96746 Whirlpool Drain Hose Assembly |
| 11 | WP16272 Whirlpool Hose Coupling |
| 12 | WP356138 Whirlpool Hose Clamp |
| 13 | Hose, Drain |
| 15 | Hose, Drain |
| 16 | Cabinet (Almond) |
| 16 | Cabinet (Golden Harvest) |
| 16 | Cabinet (White) |
| 18 | Screw (2) |
| 19 | Switch, Water Level |
| 20 | SCREW |
| 21 | WP356363 Whirlpool Siphon Break |
| 22 | WP616099 Whirlpool Clamp |
| 23 | WP356471 Whirlpool Cap |
| 24 | 18849 Whirlpool Pad |
| 25 | Hinge (L.H.) |
| 25 | Hinge, (R.H.) |
| 26 | WP3390631 Whirlpool Screw |
| 28 | W11213338 Whirlpool Connector |
| 29 | WP285655 Whirlpool Hose Clamp |
| 30 | WP353244 Whirlpool Hose |
| 32 | Switch, Water Temperature (Alt.) |
| 33 | Bracket, Control |
| 34 | Bracket |
| 35 | Cord, Power (60 Hz.) |
| 36 | Hose, Pump To Filter |
| 38 | 285805 Whirlpool Washer Water Inlet Valve |
| 42 | Screw, 10-16 x 1 (2) |
| 43 | Spacer, Cabinet (2) |
| 45 | Clamp, Hose |
| 46 | Spring, Hose Retaining |
| 47 | WP273556 Whirlpool Screw |
| 48 | Pad, Top (R.H.) |
| 48 | Pad, Top (L.H.) |
| 49 | Lock, Front Top |
| 50 | 8528351 Whirlpool Clip |
| 51 | Clip, Harness |
| 54 | WP488234 Whirlpool Air Conditioner Screw |
| 55 | WP596669 Whirlpool Hose Clamp |
| 56 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 57 | W10491983 Whirlpool Tine Tip |
| 59 | WPL 364089 |
