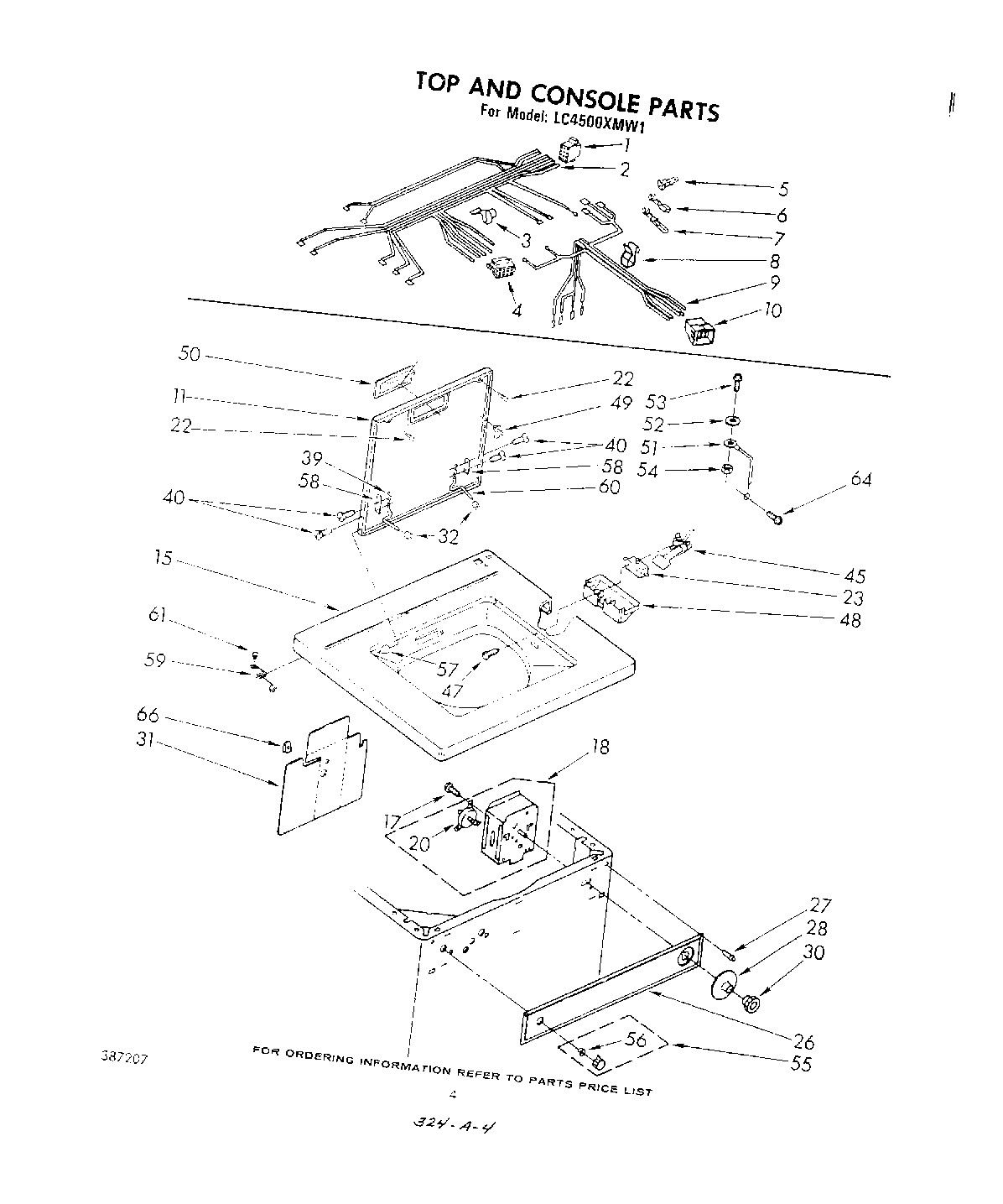

LC4500XMW1 03 – TOP AND CONSOLE

LC4500XMW1 03 – TOP AND CONSOLE

Written by

in

LC4500XMW1 03 – TOP AND CONSOLE

Products

PositionProduct
1Plug, Terminal (Cabinet Harness)
2Harness, Upper
3WP90016 Whirlpool Clip
4W10876590 Whirlpool Connector
5Terminal, Female
6WP94614 Whirlpool Terminal
7WP596797 Whirlpool Terminal
8Clip, Harness
9Harness, Lower
10Cap, Terminal (Console Harness)
11Lid (White)
11Lid (Almond)
11Lid (Golden Harvest)
15WP384693 Whirlpool Top
15Top (Golden Harvest)
15Top (Almond Model)
17WP356418 Whirlpool Screw
18Timer, 60 Hz. (Mallory)
20Motor, Timer 60 Hz.
2280011 Whirlpool Washer Lid Bumper Kit of 2
23W10820036 Whirlpool Door Switch Kit
26Panel, Control
27Rivet, Plastic (4)
28Dial, Timer
30WPL 356500
31Shield, Timer
32Bumper, Lid Hinge
39384458 Whirlpool Hinge Assembly
40SCREW
45Actuator, Lid Switch
47Screw & Washer, Lid Switch (2)
48WP359231 Whirlpool Shield
49WP358684 Whirlpool Strike Assembly
50Handle, Lid (Golden Harvest)
50Handle, Lid (Almond)
50Handle, Lid (White)
51Wire, Ground
52Washer, Lock
53WP308544 Whirlpool Screw
54W10080180 Whirlpool Nut
55Control Knob Assembly
56Clip
57WP21258 Whirlpool Washer Lid Hinge Bearing
58WP21097 Whirlpool Pad
59Spring, Lid (R.H.) (Includes Illus. 10)
59Spring, Lid (L.H.) (Includes Illus 10)
60384459 Whirlpool Hinge
61Plug, Button
64WP488234 Whirlpool Air Conditioner Screw
66Clip, Push-On
