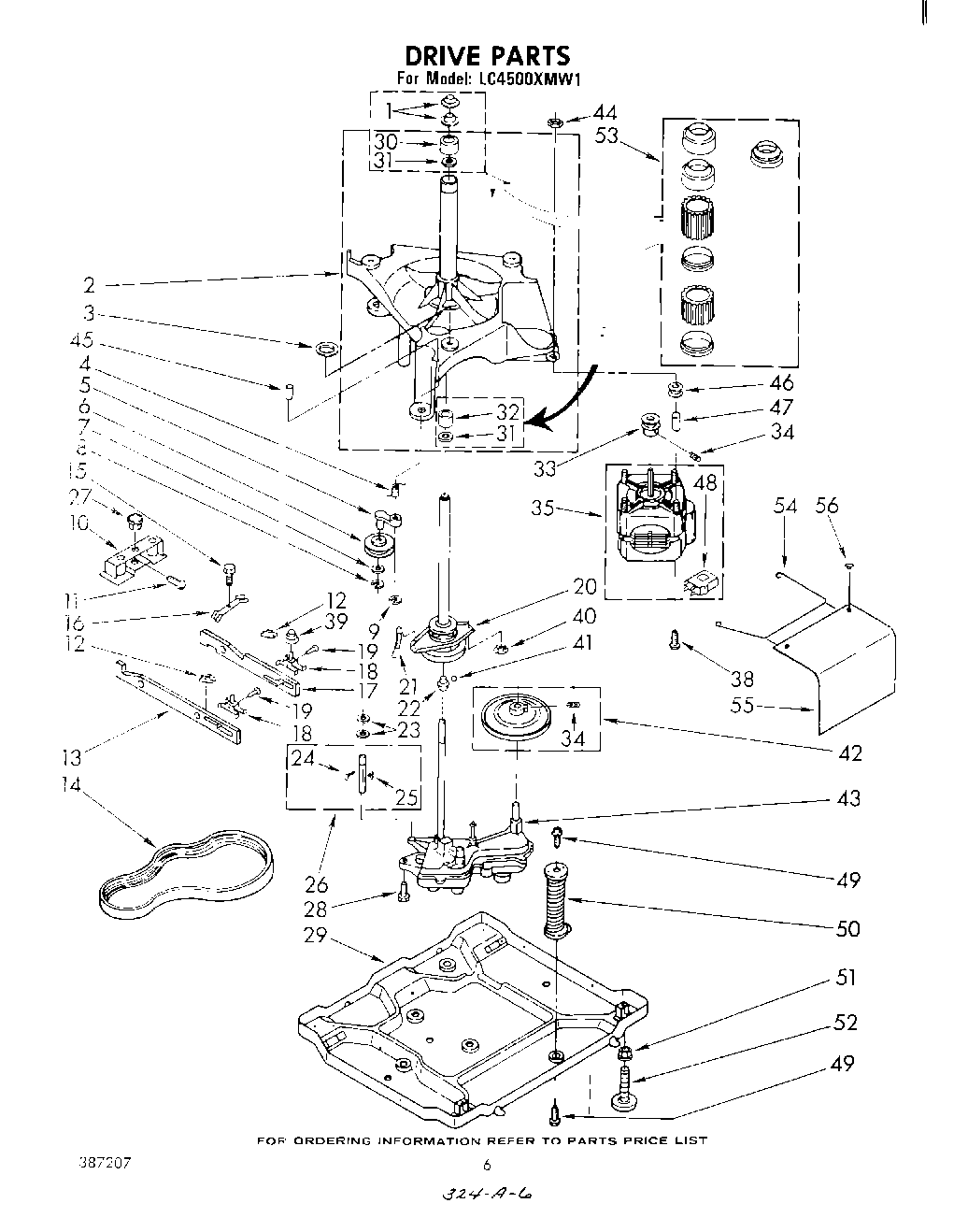

LC4500XMW1 04 – DRIVE

Products

Position	Product
1	WP8577376 Whirlpool Seal
2	Baseplate & Centerpost
3	Gasket, Tub (7)
4	Spring, Idler Arm
5	Idler Arm & Shaft
6	Pulley, Idler
7	Washer, Thrust
8	Ring, Retainer
9	Ring, Retainer
10	Magnet
11	Screw, Taper End
12	Guide, Cam Bar
13	Cam, Bar Spin
14	Belt, “V“ (Alternate)
14	Belt, “V“ ((Alternate))
14	Belt, “V“
15	Screw, 1/4-28 x 1/2
16	Spring, Brake
17	Cam, Agitator & Pump
18	Plunger
19	Rivet
20	Basket Drive & Brake
21	Spring, Brake Yoke
22	Support, Spin Tube
23	WP120393 Whirlpool Washer Assembly
24	Pin, Gear Fork Shaft
25	Roller, Gear Fork Shaft
26	Shaft, Basket Clutch
27	WP385728 Whirlpool Bushing
28	Screw & Washer (3)
29	Baseplate, Lower
30	Bearing, Upper
31	W11095997 Whirlpool Seal
32	WPL 354195
33	Pulley, Motor
34	Setscrew, 5/16-18 x 1/2
35	Motor, 60 Hz. (Alt.) (Emerson)
35	Motor, 60 Hz.
35	Motor, 60 Hz. (Alt.) (General Electric)
38	WP3390631 Whirlpool Screw
39	Spring, Agitator Plunger
40	Retainer, Brake Yoke
41	Ball
42	Pulley, Main Drive
43	Gearcase (Complete)
44	Nut (4)
45	Sleeve, Cabinet Support (2)
46	Grommet, Motor (4)
47	W10491983 Whirlpool Tine Tip
48	WPL 362738
48	WPL 359642
49	Screw & Washer
50	Spring & Dampener (No. 3)
50	Spring & Dampener (No. 1)
50	Spring & Dampener (No. 2)
51	Nut, Flange (4)
52	WPW10001130 Whirlpool Leveling Leg
53	WPL 285136
54	Support, Splash Shield
55	Shield, Splash
56	Clip, Push-On
