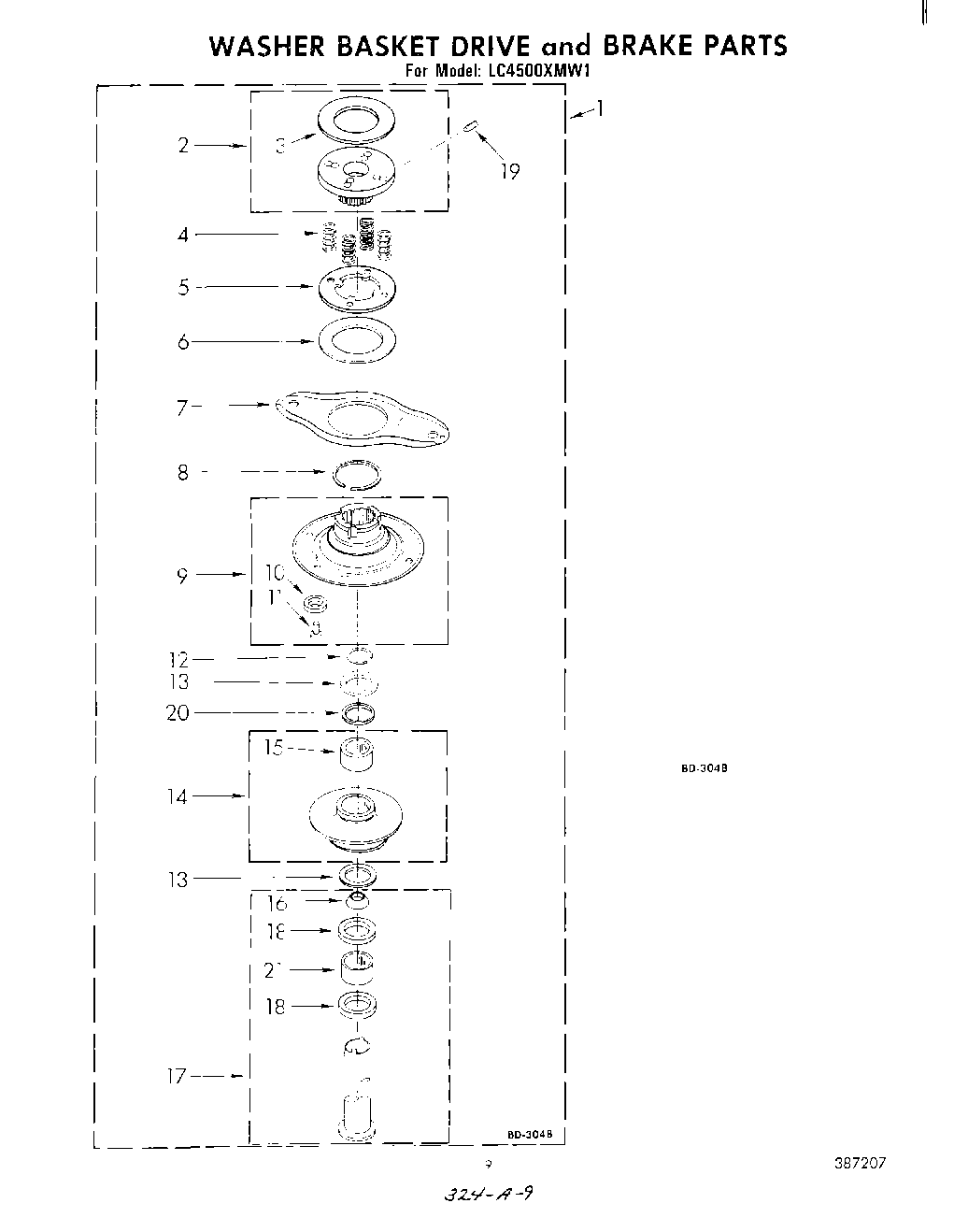

LC4500XMW1 07 – WASHER BASKET DRIVE AND BRAKE

Products

Position	Product
1	Basket Drive & Brake
2	Drum, Brake (Upper)
3	Lining, Basket Brake (Upper)
4	Spring, Basket Drive (Gray Black) (4)
5	Drum, Brake (Lower)
6	Lining, Basket Brake (Lower)
7	Yoke, Brake
8	Ring, Snap
9	Plate & Lining, Basket Drive
10	Lining, Basket Drive (Set of 3)
11	Eyelet (3)
12	WPW10083200 Whirlpool Wire Ring
13	Washer, Thrust (2)
14	Pulley, Basket Drive
15	Bearing, Drive Pulley
16	WP91939 Whirlpool Shaft Seal
17	Drive Tube & Bearing, Basket
18	WP356427 Whirlpool Shaft Seal
19	Set Screw, 5/16-18 x 13/16
20	Retainer, Oil
21	Spacer, Drive Tube
