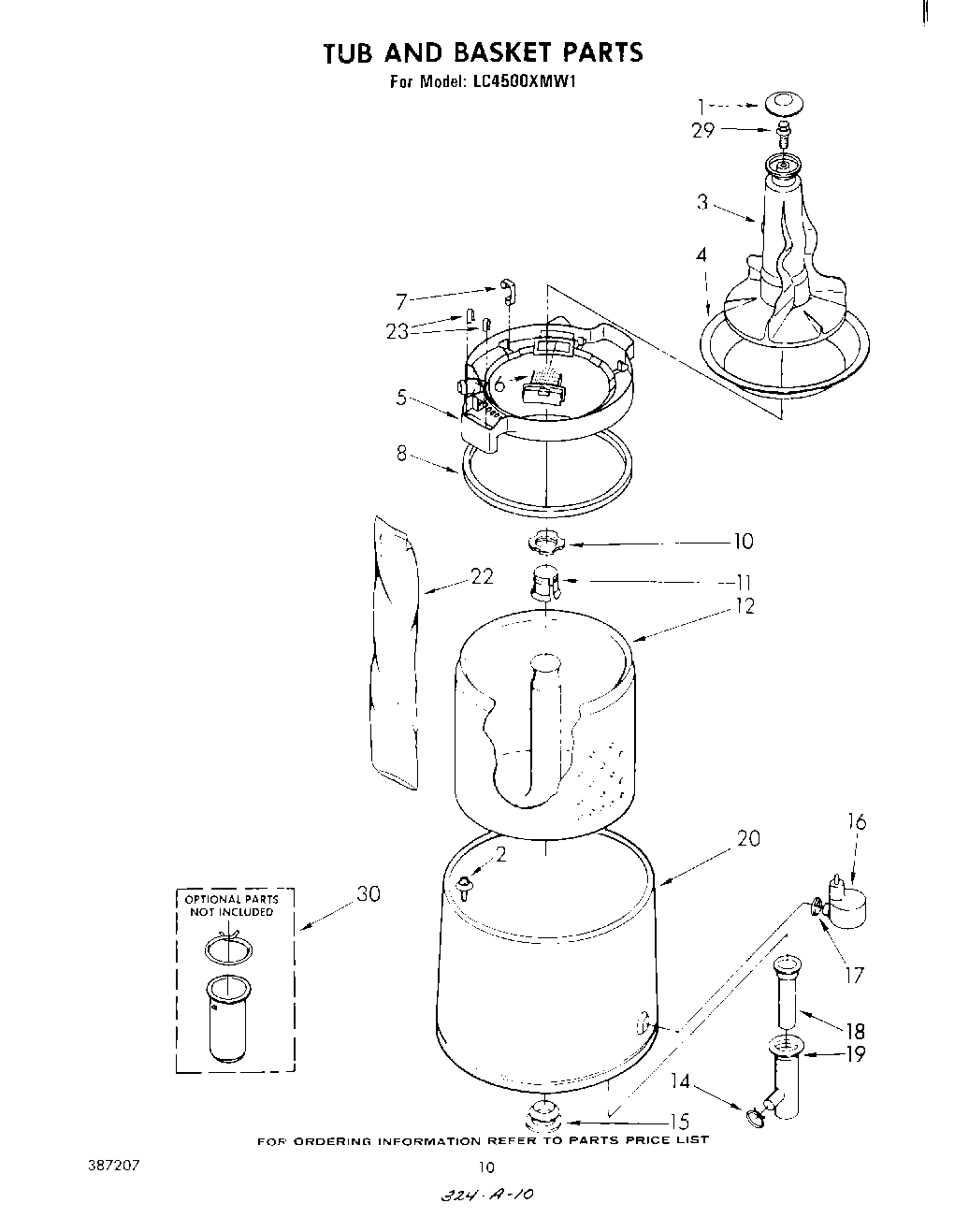

LC4500XMW1 08 – TUB AND BASKET

Products

Position	Product
1	Cap, Agitator
2	Screw & Washer, Tub (4)
3	Agitator
4	Shield, Tub Ring
5	Tub Ring (Includes Illus. 22 & 23)
6	Filter
7	Clip, Tub Ring (5)
8	Gasket, Tub Ring
10	Locknut
11	Block, Basket Drive
12	Basket Assembly
14	WP285655 Whirlpool Hose Clamp
15	W10814296 Whirlpool Washer Center Post Seal Gasket
16	Air Dome Assembly
17	Seal
18	Funnel, Drain
19	Manifold, Tub Outlet
20	Tub
22	356398 Whirlpool Tube
23	8577411 Whirlpool Pad
29	WP358237 Whirlpool Agitator Bolt
30	Manifold Repair Kit (This Kit Eliminates The Need To Remove The Tub From The Compact Washer When Cle
