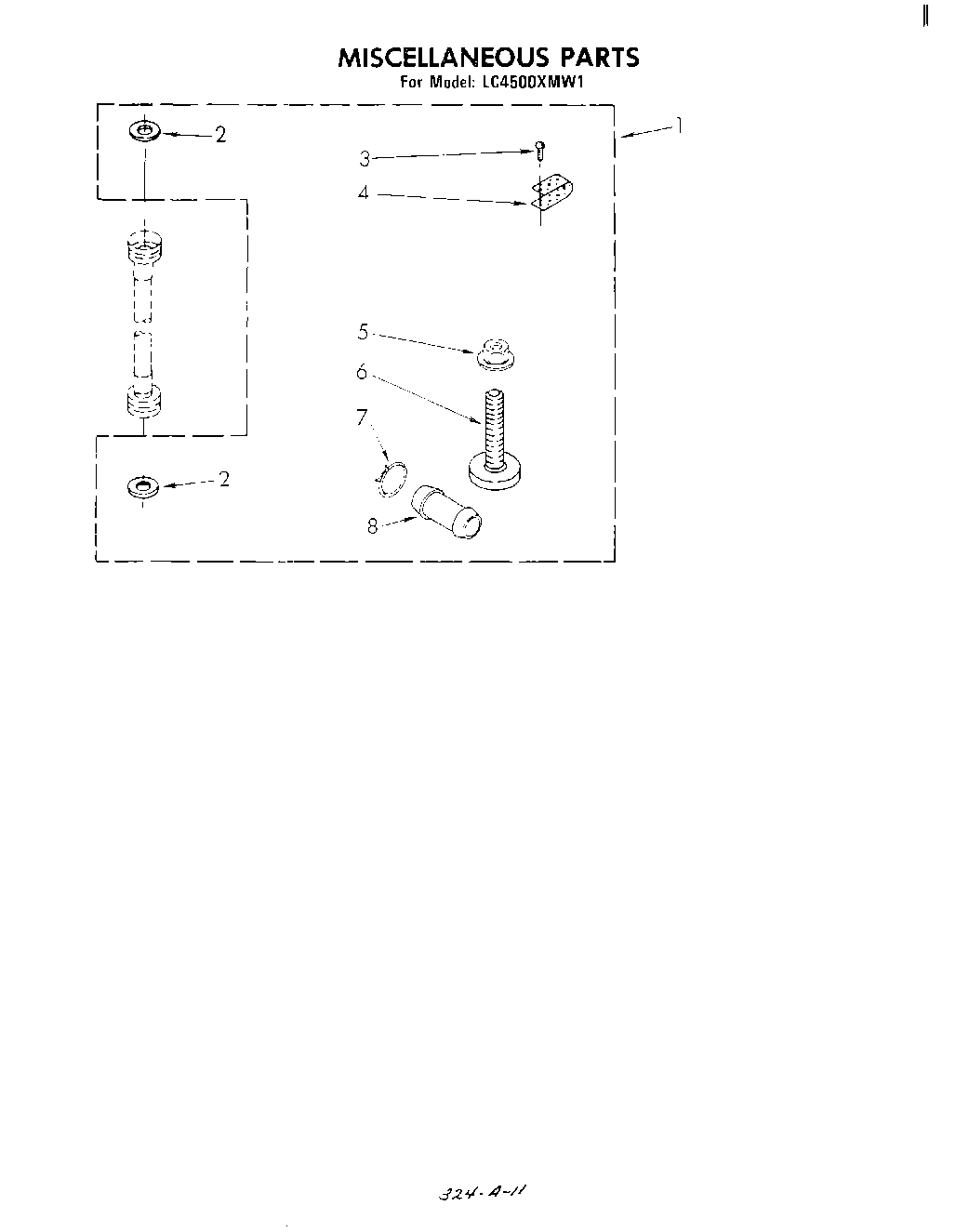

LC4500XMW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

LC4500XMW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Written by

in

LC4500XMW1 09 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Products

PositionProduct
1Miscellaneous Parts Bag
2WP16123 Whirlpool Washer
3Screw, Ground (10-24 x 1)
4Strap, Ground
5Nut, Flange (4)
6WPW10001130 Whirlpool Leveling Leg
7WP356138 Whirlpool Hose Clamp
8WPL 799351
8Installation Instructions
8Guide, Use & Care
8Label, Energy Guide
8Guide, Laundry
8350930 Whirlpool White Spray Paint
8350938 Whirlpool Spray Gun
8350956 Whirlpool Spray Assembly
872017 Whirlpool Appliance Touch-Up Paint White
8WP72107 Whirlpool Touchup
8Leveler (Thinner)
8WP16272 Whirlpool Hose Coupling
872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
8Golden Harvest
8List, Repair Parts
