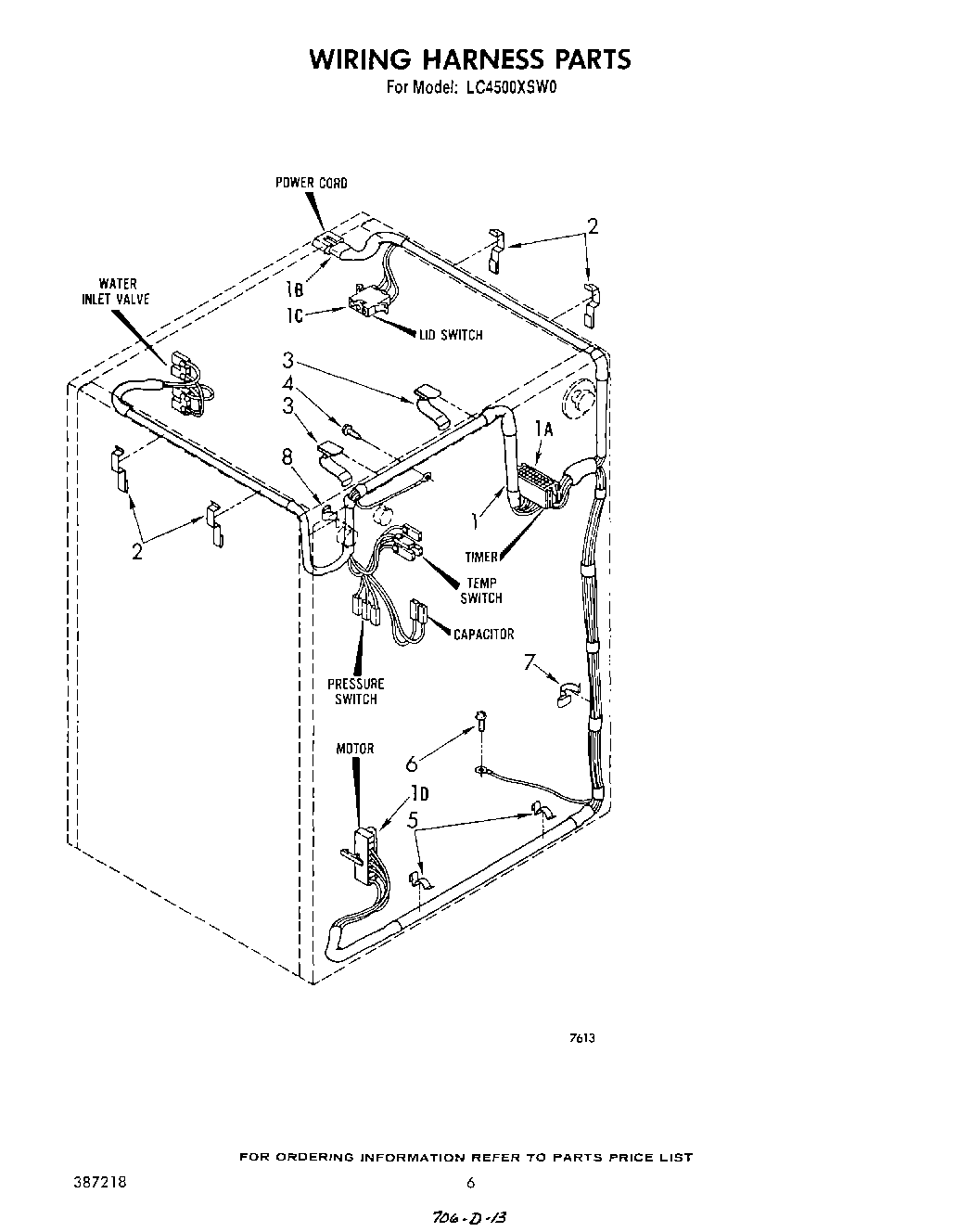

LC4500XSW0 05 – WIRING HARNESS

Products

Position	Product
1	Plug, Terminal (3-Way)
1	W10876590 Whirlpool Connector
1	353424 Whirlpool Connector
1	WP62505 Whirlpool Connector
1	Harness, Cabinet Wiring (Includes Illus. 1A, 1B, 1C & 1D)
2	Clip, Harness (4)
3	Clip, Harness (2)
4	Screw, 8-18 x 5/16
5	WP90016 Whirlpool Clip
6	SCREW
7	8528351 Whirlpool Clip
8	Retainer, Hose
