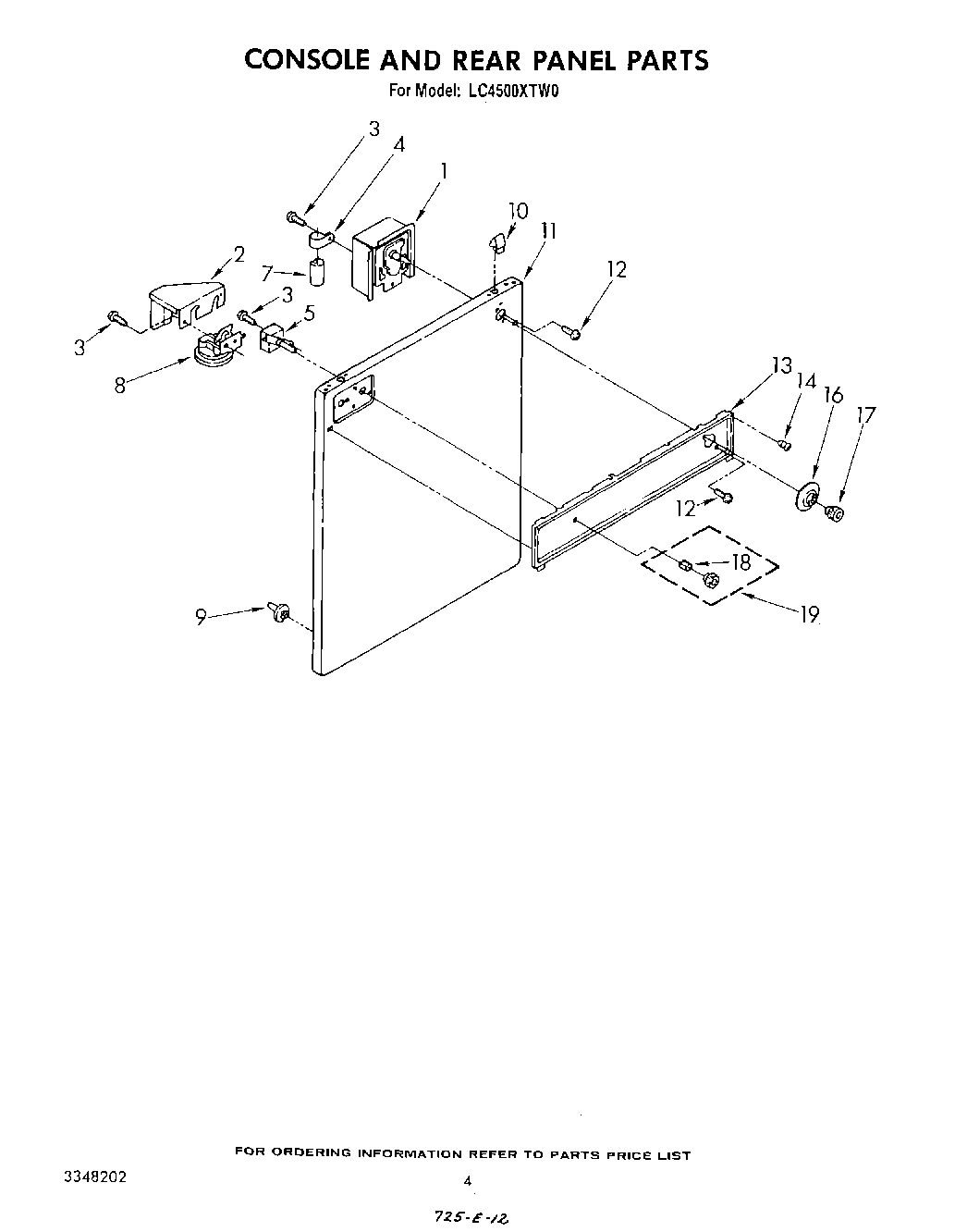

LC4500XTF0 03 – CONSOLE AND REAR PANEL

Products

PositionProduct
1Timer, 60 Hz. (Serviced Only As A Complete Assembly. Timer Motor Is Non Serviceable.)
2Shield, Control
3Screw, 8-18 x 5/16
4357030 Whirlpool Clamp
5Switch, Water Temperature
7CAPACITOR
8Switch, Water Level
9Locator, Top
10Lock, Front Top
11Panel, Front (Golden Harvest)
11Panel, Front (Platinum)
11Panel, Front (Toast)
11Panel, Front (White Model)
11Panel, Front (Almond Model)
12WP356418 Whirlpool Screw
13Panel, Console
14Rivet, Plastic (4)
16Dial, Timer
17WPL 3347726
18WP688805 Whirlpool Spring Clip
19Knob & Skirt (Water Temperature)
