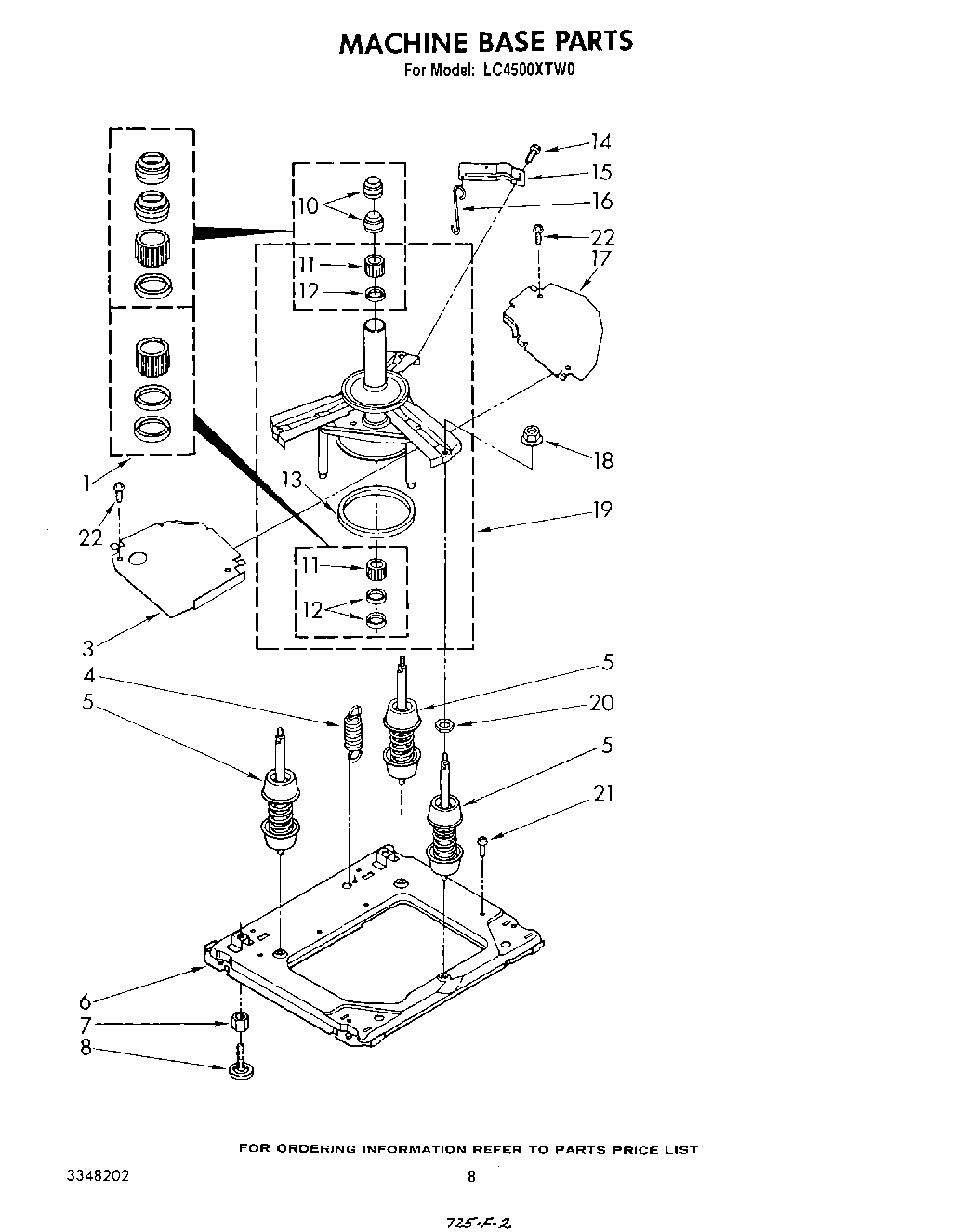

LC4500XTF0 07 – MACHINE BASE

LC4500XTF0 07 – MACHINE BASE

Written by

in

LC4500XTF0 07 – MACHINE BASE

Products

PositionProduct
1285203 Whirlpool CP Bearing
3WP64137 Whirlpool Shield Assembly
4WPW10250667 Whirlpool Washer Suspension Spring
5Suspension Assembly (3)
6WP8577373 Whirlpool Base Assembly
7WP62739 Whirlpool Nut
8WPW10001130 Whirlpool Leveling Leg
10WP8577376 Whirlpool Seal
11WP8546455 Whirlpool Bearing
12W11095997 Whirlpool Seal
13WP63134 Whirlpool Ring
14WP273556 Whirlpool Screw
1563636 Whirlpool Bracket
1763637 Whirlpool Shield
18Nut, 1/2 – 20 (3)
19W10863713 Whirlpool Support
20Washer, Hex (2)
21SCREW
22WP90767 Whirlpool Screw
