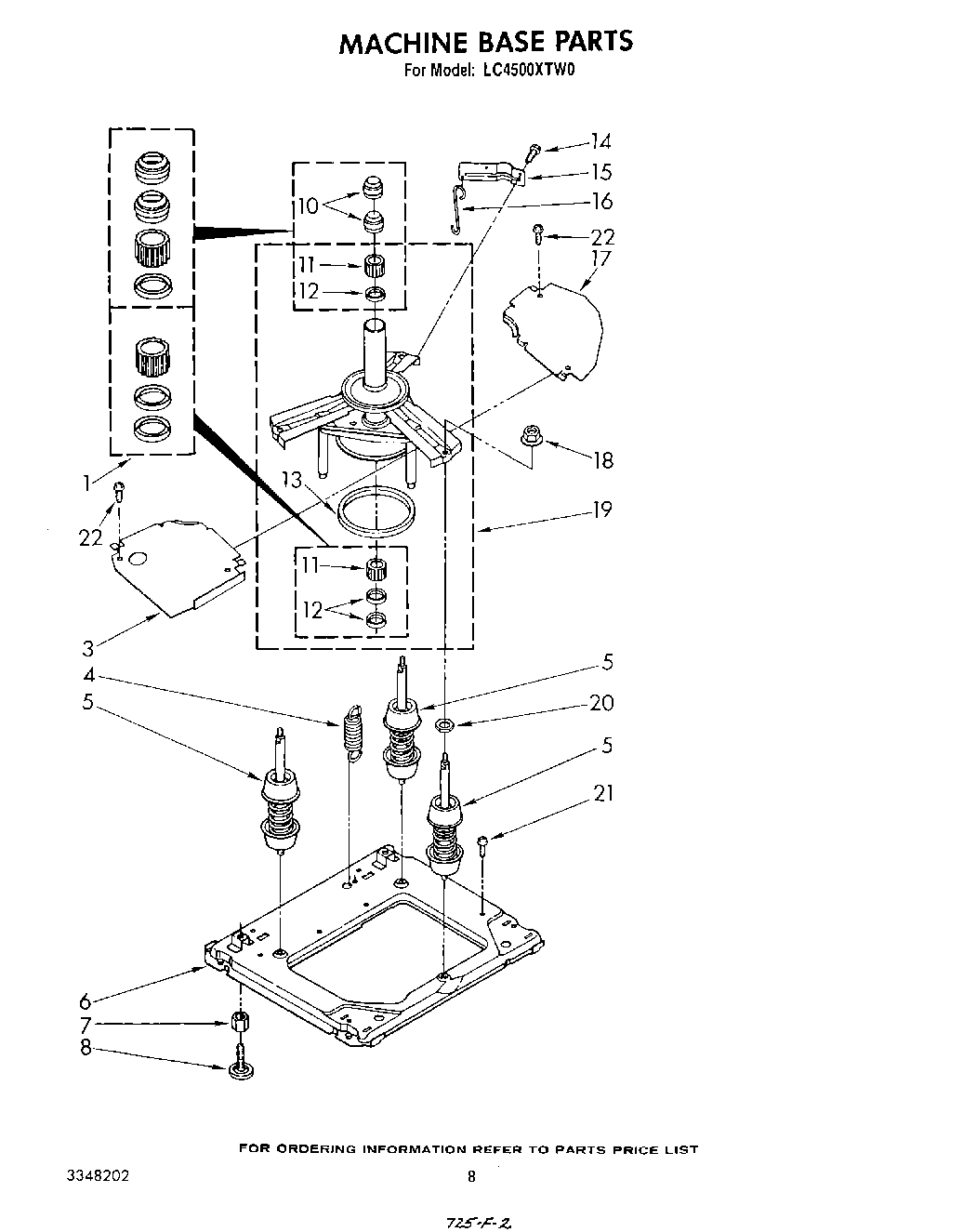

LC4500XTG0 07 – MACHINE BASE

Products

Position	Product
1	285203 Whirlpool CP Bearing
3	WP64137 Whirlpool Shield Assembly
4	WPW10250667 Whirlpool Washer Suspension Spring
5	Suspension Assembly (3)
6	WP8577373 Whirlpool Base Assembly
7	WP62739 Whirlpool Nut
8	WPW10001130 Whirlpool Leveling Leg
10	WP8577376 Whirlpool Seal
11	WP8546455 Whirlpool Bearing
12	W11095997 Whirlpool Seal
13	WP63134 Whirlpool Ring
14	WP273556 Whirlpool Screw
15	63636 Whirlpool Bracket
17	63637 Whirlpool Shield
18	Nut, 1/2 - 20 (3)
19	W10863713 Whirlpool Support
20	Washer, Hex (2)
21	SCREW
22	WP90767 Whirlpool Screw
