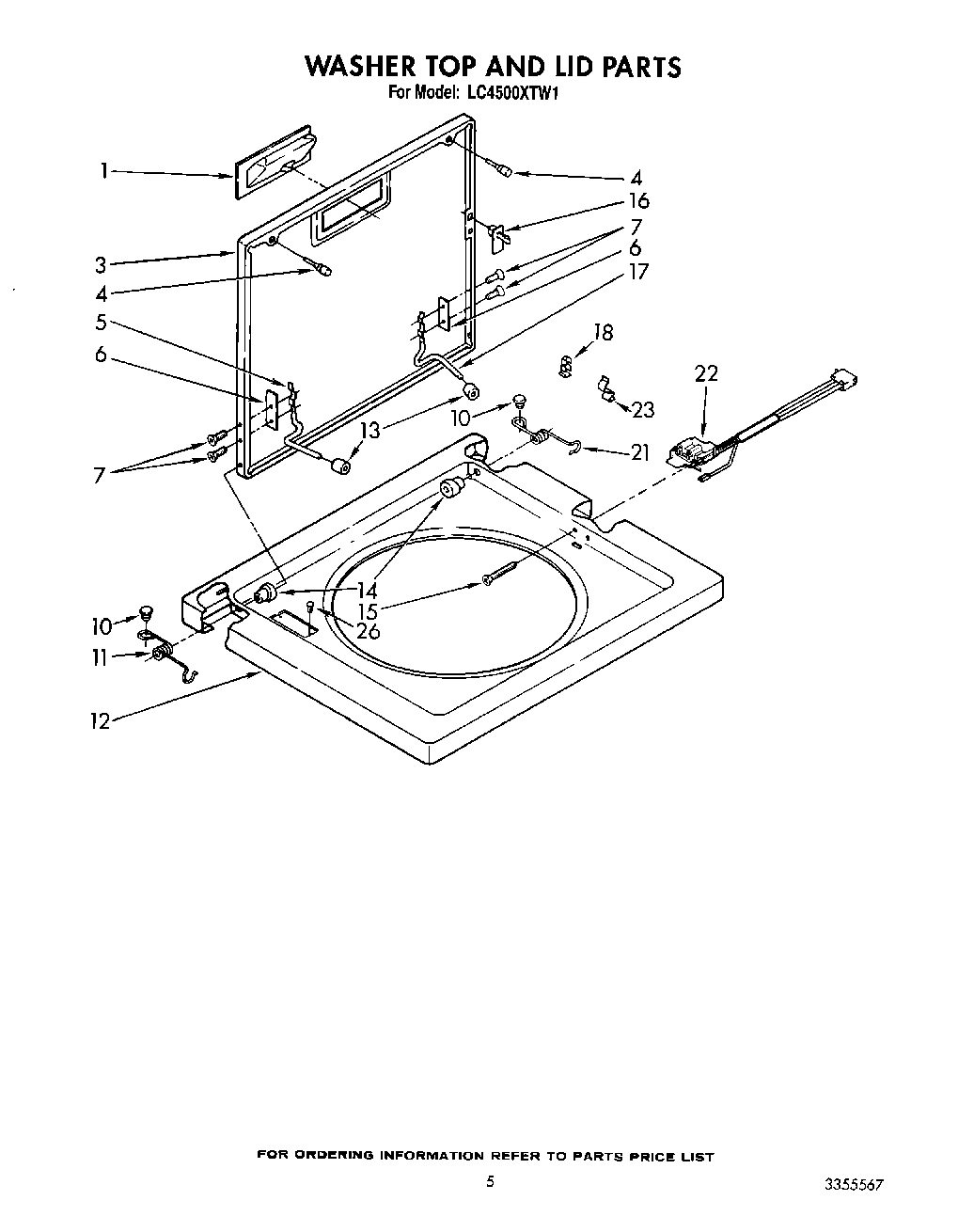

LC4500XTG1 04 – WASHER TOP AND LID

Products

PositionProduct
1Handle, Lid (Almond)
1Handle, Lid (White)
1Handle, Lid (Golden Harvest)
3Lid (Almond Model)
3Lid (White Model)
3Lid (Golden Harvest)
480011 Whirlpool Washer Lid Bumper Kit of 2
5384458 Whirlpool Hinge Assembly
6WP21097 Whirlpool Pad
7SCREW
10Plug, Button
11Lid Spring (Includes No. 10)
12Top (Almond Model)
12Top (Golden Harvest)
12WP384693 Whirlpool Top
13Bumper, Lid Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WP3356311 Whirlpool Screw
16WP358684 Whirlpool Strike Assembly
17384459 Whirlpool Hinge
18W10113937 Whirlpool Clamp
21Spring, Lid (R.H.) (Includes Illus. 10)
22WP3355805 Whirlpool Lid Switch
23WP90016 Whirlpool Clip
26Rivet, Serial Nameplate
