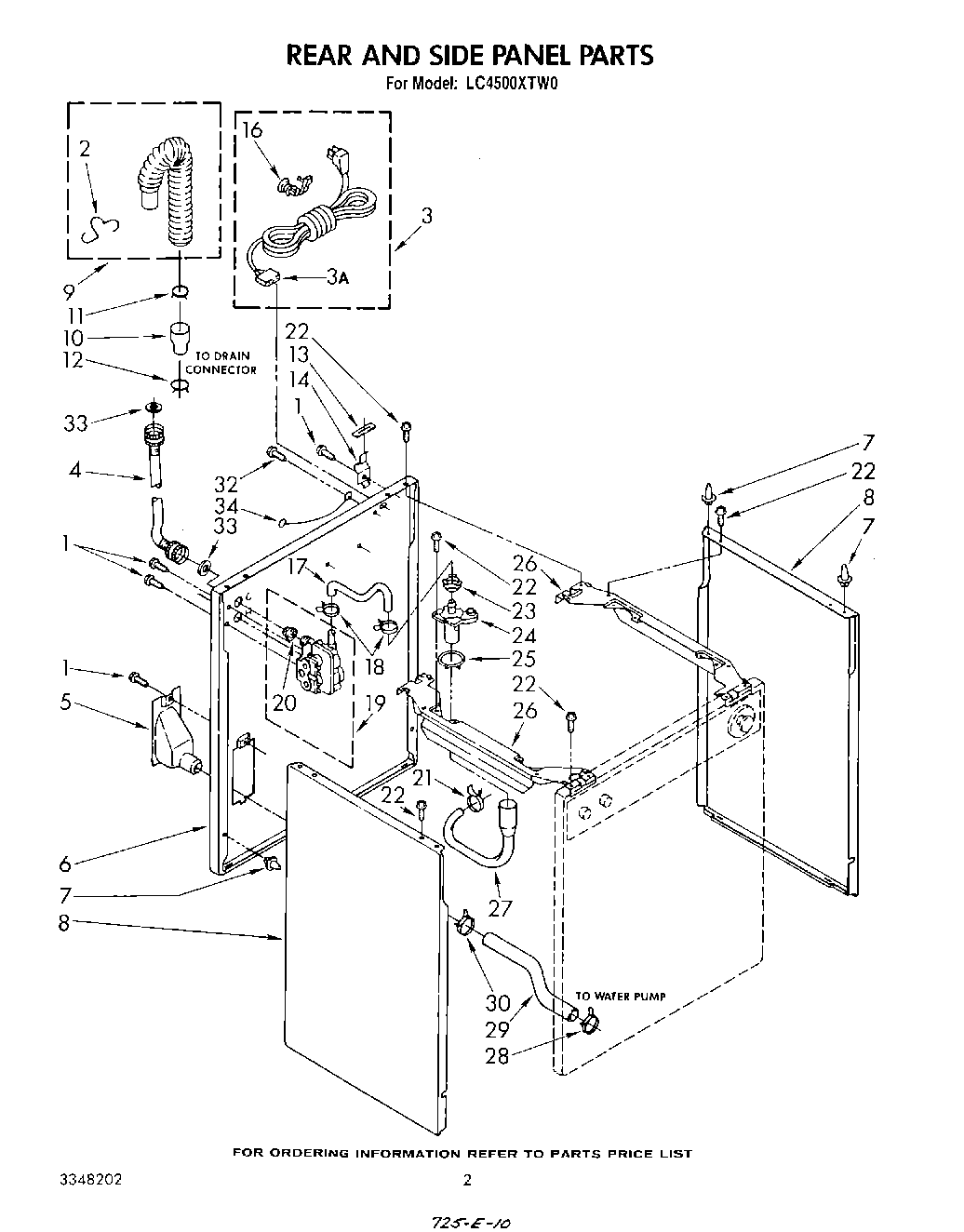

LC4500XTM0 02 – REAR AND SIDE PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
2	WPL 357247
3	Receptacle, 3-Way Terminal (Use W/94614)
3	Cord, Power
4	WP89503 Whirlpool Washer Fill Hose
5	WPW10358149 Whirlpool Hose
6	Panel, Rear (Golden Harvest)
6	Panel, Rear (White Model)
6	Panel, Rear (Toast)
6	Panel, Rear (Platinum)
6	Panel, Rear (Almond Model)
7	Locator, Top
8	Panel, Side (2) (Platinum)
8	Panel, Side (2) (Toast)
8	Panel, Side (2) (Golden Harvest)
8	Panel, Side (2) (Almond Model)
8	Panel, Side (2) (White Model)
9	285664 Whirlpool Drain Hose
9	285666 Whirlpool Drain Hose 10'
10	WP384496 Whirlpool Hose Coupling
13	18849 Whirlpool Pad
14	Hinge (L.H.)
16	Strain Relief, Power Cord
17	Hose, Water Inlet
18	WP596669 Whirlpool Hose Clamp
19	285805 Whirlpool Washer Water Inlet Valve
20	WP96160 Whirlpool Washer Inlet Valve Screen
22	60001022 Whirlpool Oven Screw
23	WP356471 Whirlpool Cap
24	WP356363 Whirlpool Siphon Break
25	WP616099 Whirlpool Clamp
26	Brace, Tie (2)
27	Hose, Siphon Break
28	WP285655 Whirlpool Hose Clamp
29	Hose, Pump Drain
30	WP356138 Whirlpool Hose Clamp
32	SCREW
33	WP16123 Whirlpool Washer
34	WPL 364089
