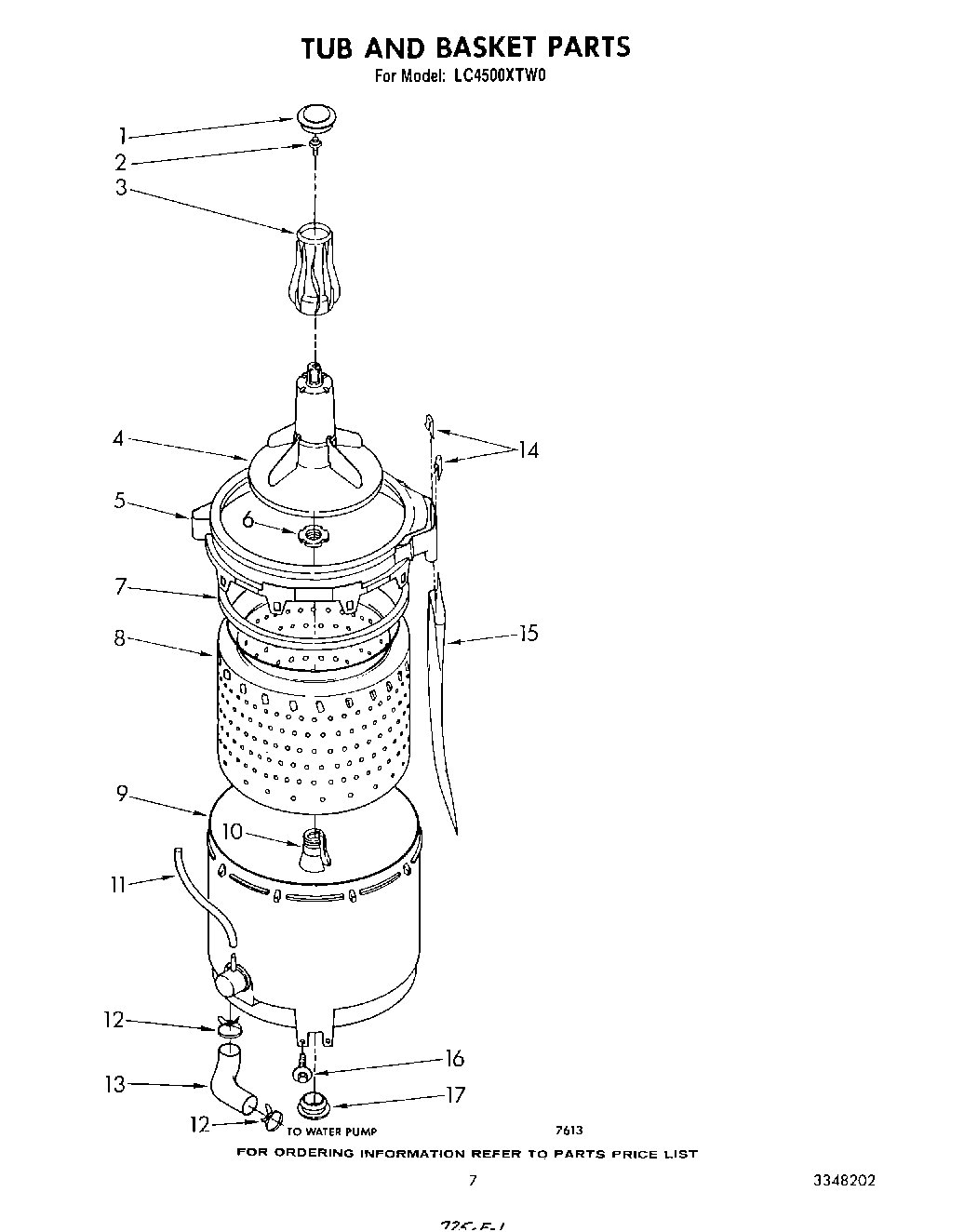

LC4500XTN0 06 – TUB AND BASKET

LC4500XTN0 06 – TUB AND BASKET

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63840 Whirlpool Filter
4WP3349098 Whirlpool Agitator Assembly
5W10831641 Whirlpool Tub Ring
6WP21366 Whirlpool Spanner Nut
7WP3359587 Whirlpool Tub Seal
8Basket
9Tub
10WP389140 Whirlpool Drive Block or Bell
11WP353244 Whirlpool Hose
12WP371502 Whirlpool Clamp
13280120 Whirlpool Hose
148577411 Whirlpool Pad
15356398 Whirlpool Tube
16Screw & Washer (Tub Mounting) (4)
17W10814296 Whirlpool Washer Center Post Seal Gasket
