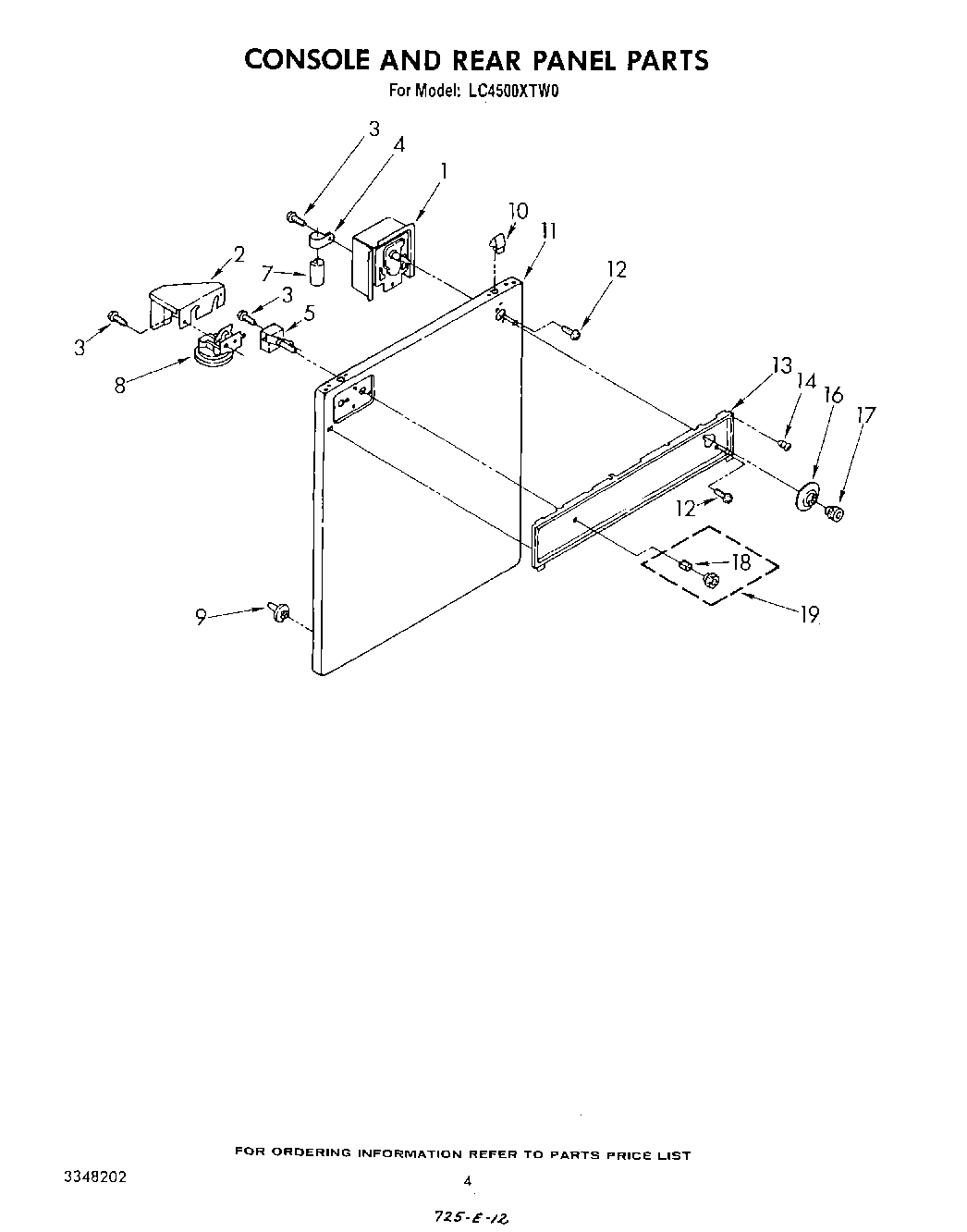

LC4500XTW0 03 – CONSOLE AND REAR PANEL

Products

Position	Product
1	Timer, 60 Hz. (Serviced Only As A Complete Assembly. Timer Motor Is Non Serviceable.)
2	Shield, Control
3	Screw, 8-18 x 5/16
4	357030 Whirlpool Clamp
5	Switch, Water Temperature
7	CAPACITOR
8	Switch, Water Level
9	Locator, Top
10	Lock, Front Top
11	Panel, Front (Golden Harvest)
11	Panel, Front (Platinum)
11	Panel, Front (Toast)
11	Panel, Front (White Model)
11	Panel, Front (Almond Model)
12	WP356418 Whirlpool Screw
13	Panel, Console
14	Rivet, Plastic (4)
16	Dial, Timer
17	WPL 3347726
18	WP688805 Whirlpool Spring Clip
19	Knob & Skirt (Water Temperature)
