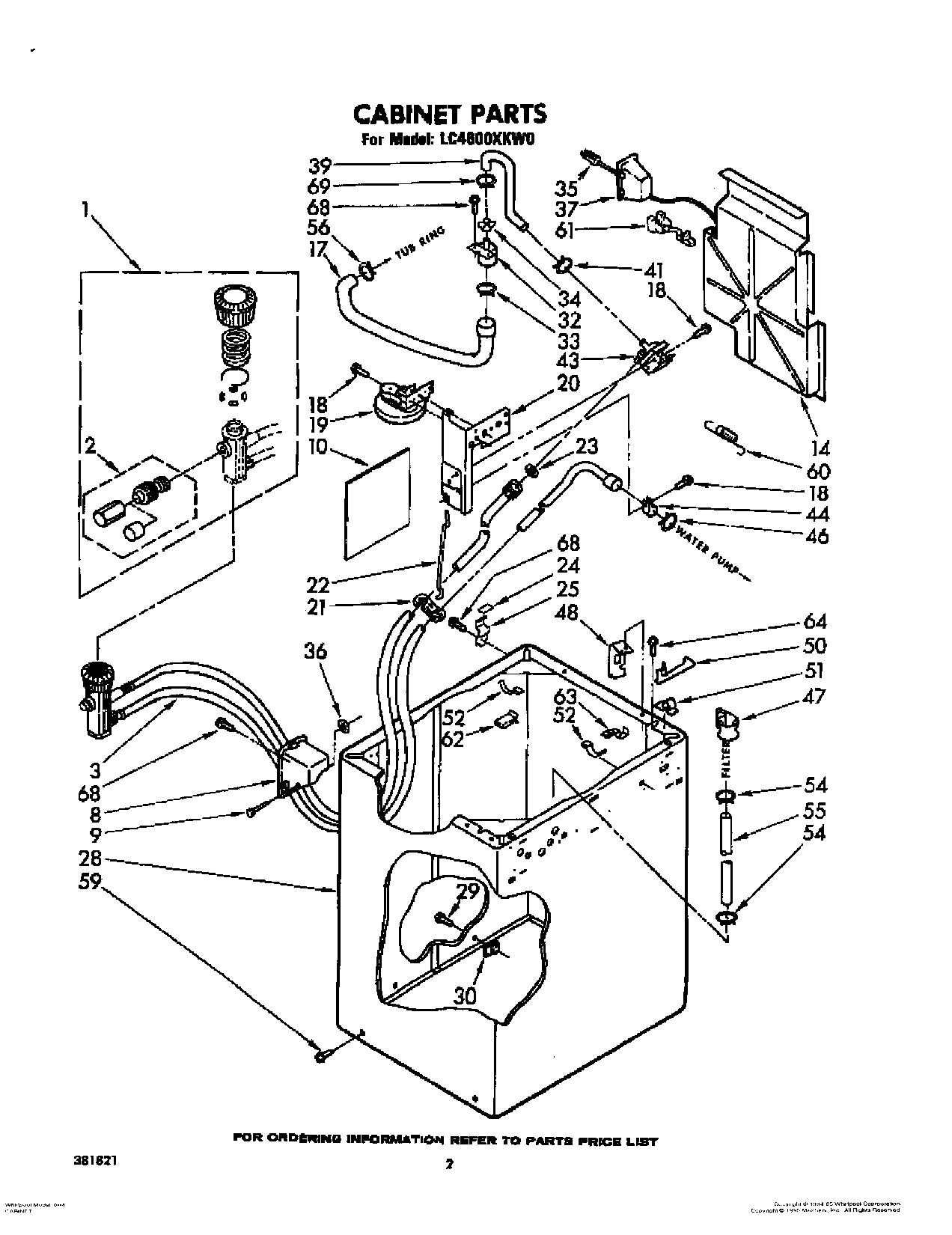

LC4600XKW0 02 – CABINET

Products

Position	Product
1	WP285170 Whirlpool Collar
2	Valve, Pressure Relief
3	Hose & Coupler Assembly
8	Housing, Hose
9	Pin, Hose Housing
10	Barrier, Splash
14	Box, Power Cord
17	Hose, Water Inlet
18	Screw (2)
19	Switch,\ Water\ Level
20	Bracket, Control
21	Guide, Hose
22	Rod, Hose Guide
23	WP16123 Whirlpool Washer
24	18849 Whirlpool Pad
25	Hinge (L.H.)
28	Cabinet (Almond)
28	Cabinet (White)
28	Cabinet (Golden Harvest)
29	Screw, 10-16 x 1 (2)
30	Spacer, Cabinet (2)
32	WP356363 Whirlpool Siphon Break
33	WP616099 Whirlpool Clamp
34	WP356471 Whirlpool Cap
35	Power, Cord
36	Clip, Stud
37	Housing, Power Cord
39	Hose, Water Inlet
43	Valve, Water Inlet
44	Clamp, Hose
46	WP285655 Whirlpool Hose Clamp
47	Bracket
48	Bracket, Harness
50	Pad, Top (R.H.)
50	Pad, Top (L.H.)
51	Lock, Front Top
52	8528351 Whirlpool Clip
54	WP596669 Whirlpool Hose Clamp
55	Hose, Pump To Filter
56	Clamp
59	WP273556 Whirlpool Screw
60	Spring, Hose Retaining
61	Relief, Strain
62	Clip
63	Clip, Harness
64	WP488234 Whirlpool Air Conditioner Screw
68	SCREW
