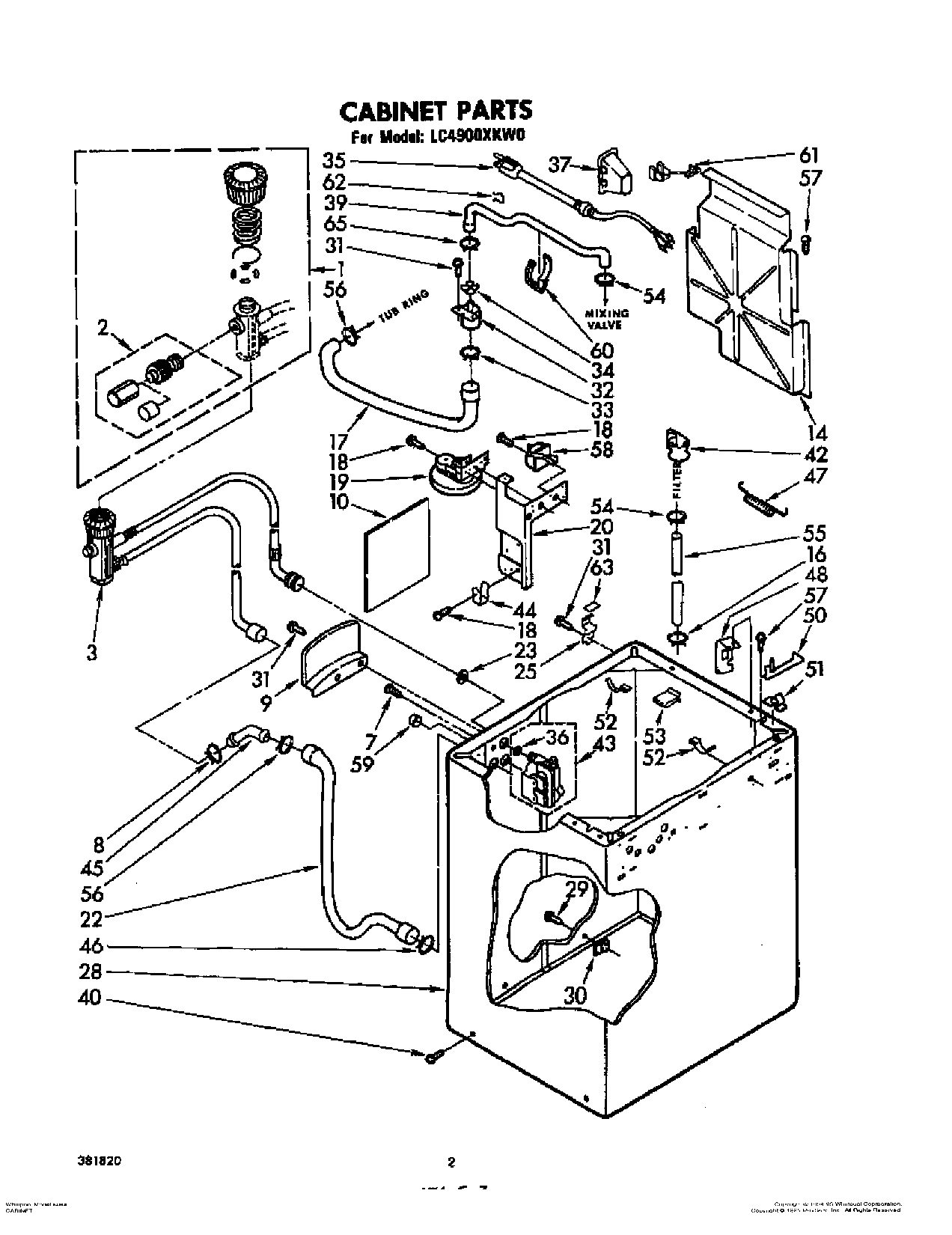

LC4900XKW0 02 – CABINET

Products

Position	Product
1	WP285170 Whirlpool Collar
2	Valve, Pressure Relief
3	Coupler & Hose
7	WP3351614 Whirlpool Screw
8	WP356138 Whirlpool Hose Clamp
9	Bracket, Hose Storage
10	Barrier, Splash
14	Box, Power Cord
16	WP596669 Whirlpool Hose Clamp
17	Hose, Water Inlet
18	Screw (2)
19	Switch, Water Level
20	Bracket, Control
22	Hose, Drain
23	WP16123 Whirlpool Washer
25	Hinge (L.H.)
28	Cabinet (New Avocado)
28	Cabinet (Almond)
28	Cabinet (Golden Harvest)
28	Cabinet (White)
28	Cabinet (Coffee)
29	Screw, 10-16 x 1 (2)
30	Spacer, Cabinet (2)
31	SCREW
32	WP356363 Whirlpool Siphon Break
33	WP616099 Whirlpool Clamp
34	WP356471 Whirlpool Cap
35	Power, Cord
36	WP96160 Whirlpool Washer Inlet Valve Screen
37	Housing, Power Cord
39	Hose, Water Inlet
40	WP273556 Whirlpool Screw
42	Bracket
43	285805 Whirlpool Washer Water Inlet Valve
44	Clamp, Hose
45	W11213338 Whirlpool Connector
46	WP285655 Whirlpool Hose Clamp
47	Spring, Hose Retaining
48	Bracket, Harness
50	Pad, Top (R.H.)
50	Pad, Top (L.H.)
51	Lock, Front Top
52	8528351 Whirlpool Clip
53	Clip
55	Hose, Pump To Filter
56	Clamp
57	WP488234 Whirlpool Air Conditioner Screw
58	Switch, Water Temperature (Alt.)
59	WP356054 Whirlpool Cap Assembly
60	356746 Whirlpool Clip
61	Relief, Strain
62	Clip, Harness (2)
63	18849 Whirlpool Pad
