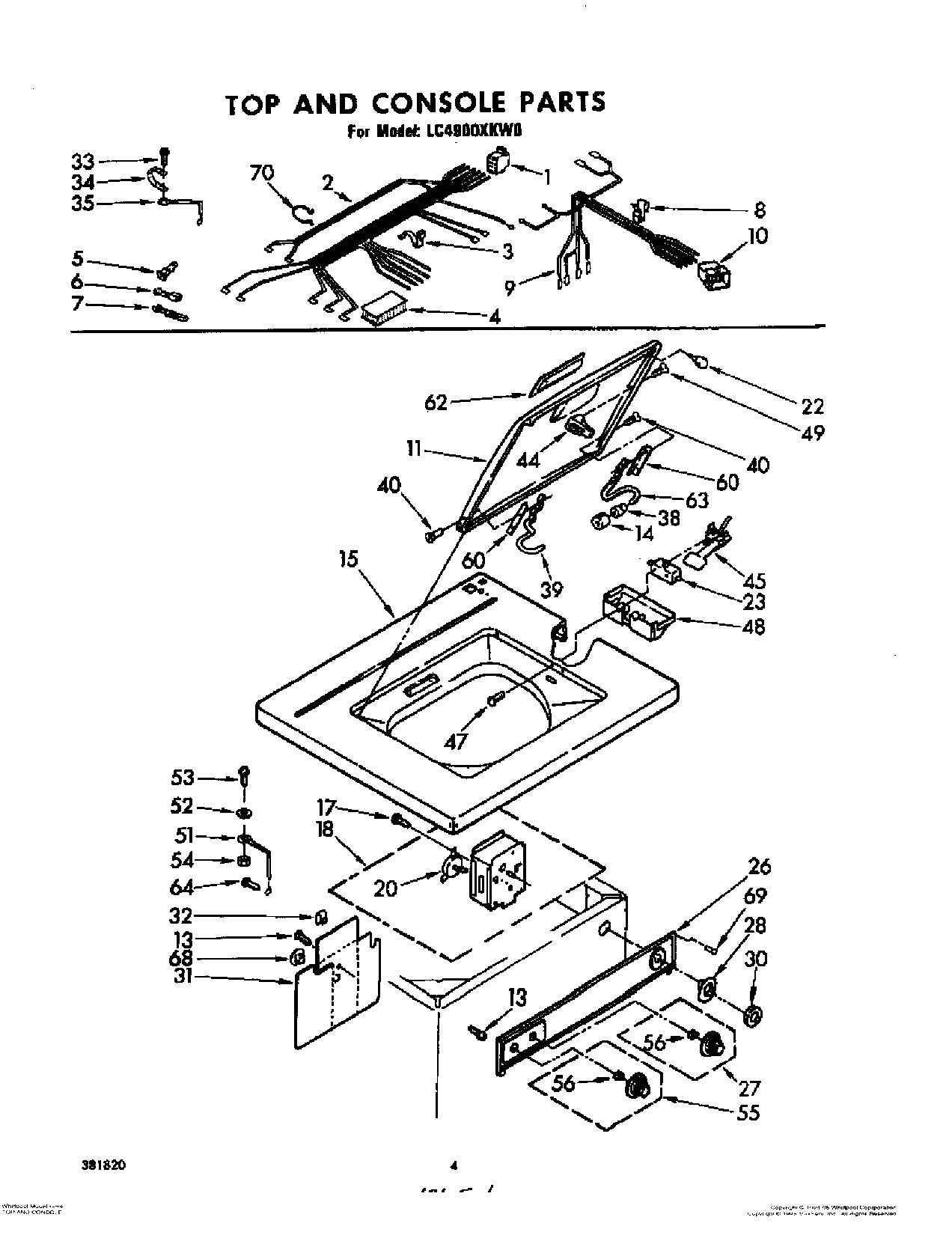

LC4900XKW0 03 – TOP AND CONSOLE

Products

Position	Product
1	Plug, Terminal (Cabinet Harness)
2	Harness, Upper
3	WP90016 Whirlpool Clip
4	W10876590 Whirlpool Connector
5	Terminal, Female
6	WP94614 Whirlpool Terminal
7	WP596797 Whirlpool Terminal
8	Clip, Harness
9	Harness, Lower
10	Cap, Terminal (Console Harness)
11	Lid (White)
11	Lid (Almond)
11	Lid (Coffee)
11	Lid (New Avocado)
11	Lid (Golden Harvest)
13	SCREW
14	Bumper, Lid Hinge
15	Top (Almond)
15	Top (Golden Harvest)
15	Top (New Avocado)
15	Top (White)
15	Top (Coffee)
17	WP356418 Whirlpool Screw
18	Timer, Disconnect
20	Motor, Timer 60 Hz.
22	WP9724509 Whirlpool Bumper
23	W10820036 Whirlpool Door Switch Kit
26	Panel, Control
27	Control Knob Assembly
28	Dial, Timer
30	WPL 356500
31	Shield, Timer
32	Clip, Harness
33	Screw, Ground (10-24 x 1)
34	Strap, Ground
35	WPL 364089
38	WP21258 Whirlpool Washer Lid Hinge Bearing
39	WP54584 Whirlpool Hinge
40	SCREW
44	Strike, Lid Switch
45	Actuator, Lid Switch
47	Screw & Washer, Lid Switch (2)
48	WP359231 Whirlpool Shield
49	Screw & Washer
51	Wire, Ground
52	Washer, Lock
53	WP308544 Whirlpool Screw
54	W10080180 Whirlpool Nut
55	Knob Assembly, Water Level
56	Clip
60	WP21097 Whirlpool Pad
62	Handle, Lid
62	Handle, Lid (Coffee)
62	Handle, Lid (Golden Harvest)
62	Handle, Lid (New Avocado)
62	Handle, Lid (White)
62	Handle, Lid (Almond)
63	WP91770 Whirlpool Hinge
64	WP488234 Whirlpool Air Conditioner Screw
68	Clip, Push-On
69	Rivet
70	Clip, Harness (2)
