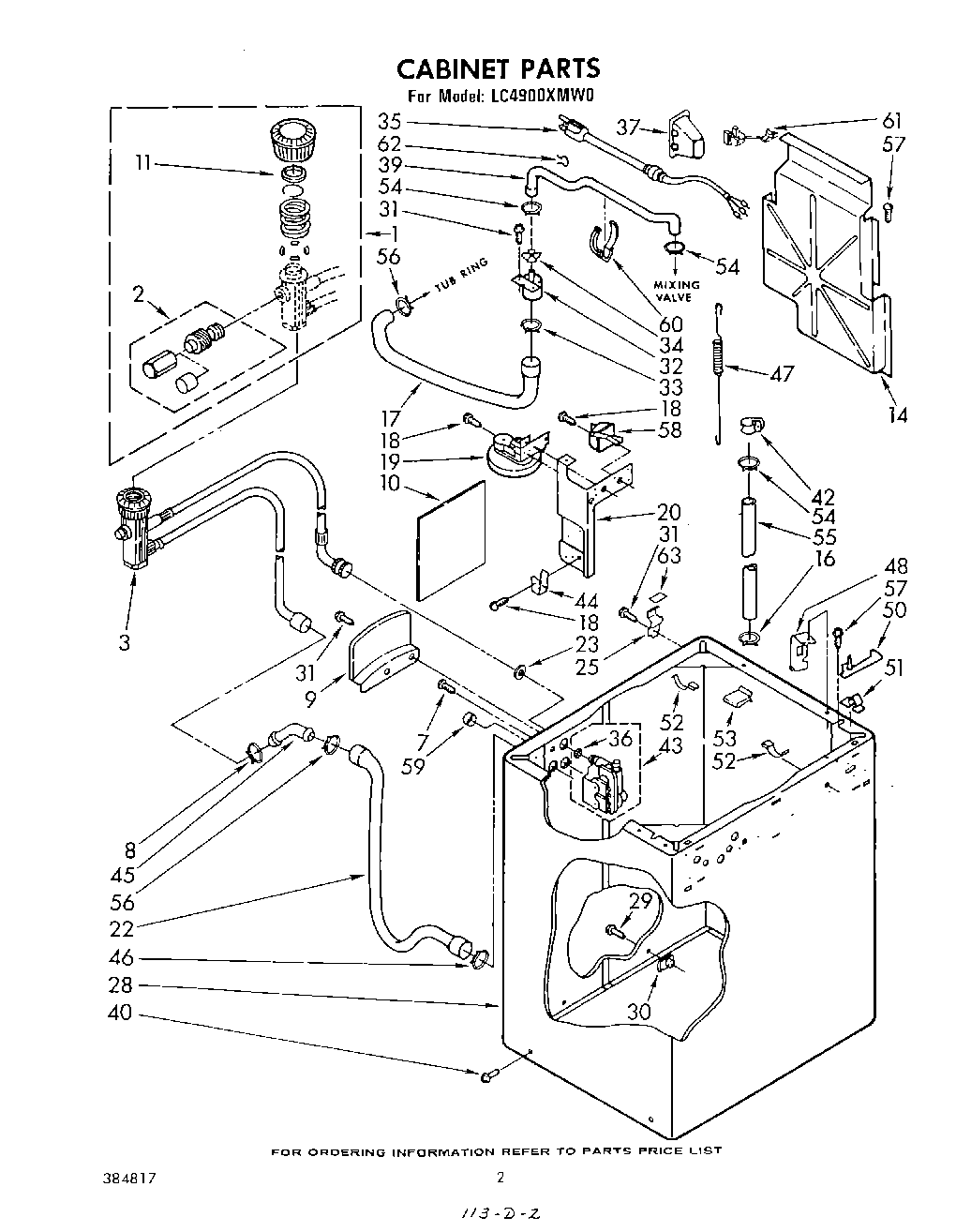

| 1 | WP285170 Whirlpool Collar |
| 2 | Valve, Pressure Relief |
| 3 | Coupler & Hose |
| 7 | WP3351614 Whirlpool Screw |
| 8 | WP356138 Whirlpool Hose Clamp |
| 9 | Bracket, Hose Storage |
| 10 | Barrier, Splash |
| 11 | Seal |
| 14 | Box, Power Cord |
| 16 | WP596669 Whirlpool Hose Clamp |
| 17 | Hose, Water Inlet |
| 18 | Screw (2) |
| 19 | Switch, Water Level |
| 20 | Bracket, Control |
| 22 | Hose, Drain |
| 23 | WP16123 Whirlpool Washer |
| 25 | Hinge (L.H.) |
| 28 | Cabinet (Golden Harvest) |
| 28 | Cabinet (Almond) |
| 28 | Cabinet (White) |
| 28 | Cabinet (Coffee) |
| 29 | Screw, 10-16 x 1 (2) |
| 30 | Spacer, Cabinet (2) |
| 31 | SCREW |
| 32 | WP356363 Whirlpool Siphon Break |
| 33 | WP616099 Whirlpool Clamp |
| 34 | WP356471 Whirlpool Cap |
| 35 | Power, Cord |
| 36 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 37 | Housing, Power Cord |
| 39 | Hose, Water Inlet |
| 40 | WP273556 Whirlpool Screw |
| 42 | Bracket |
| 43 | 285805 Whirlpool Washer Water Inlet Valve |
| 44 | Clamp, Hose |
| 45 | W11213338 Whirlpool Connector |
| 46 | WP285655 Whirlpool Hose Clamp |
| 47 | Spring, Hose Retaining |
| 48 | Bracket, Harness |
| 50 | Pad, Top (L.H.) |
| 50 | Pad, Top (R.H.) |
| 51 | Lock, Front Top |
| 52 | 8528351 Whirlpool Clip |
| 53 | Clip |
| 55 | Hose, Pump To Filter |
| 56 | Clamp |
| 57 | WP488234 Whirlpool Air Conditioner Screw |
| 58 | Switch, Water Temperature (Alt.) |
| 59 | WP356054 Whirlpool Cap Assembly |
| 60 | 356746 Whirlpool Clip |
| 61 | Relief, Strain |
| 62 | Clip, Harness (2) |
| 63 | 18849 Whirlpool Pad |
