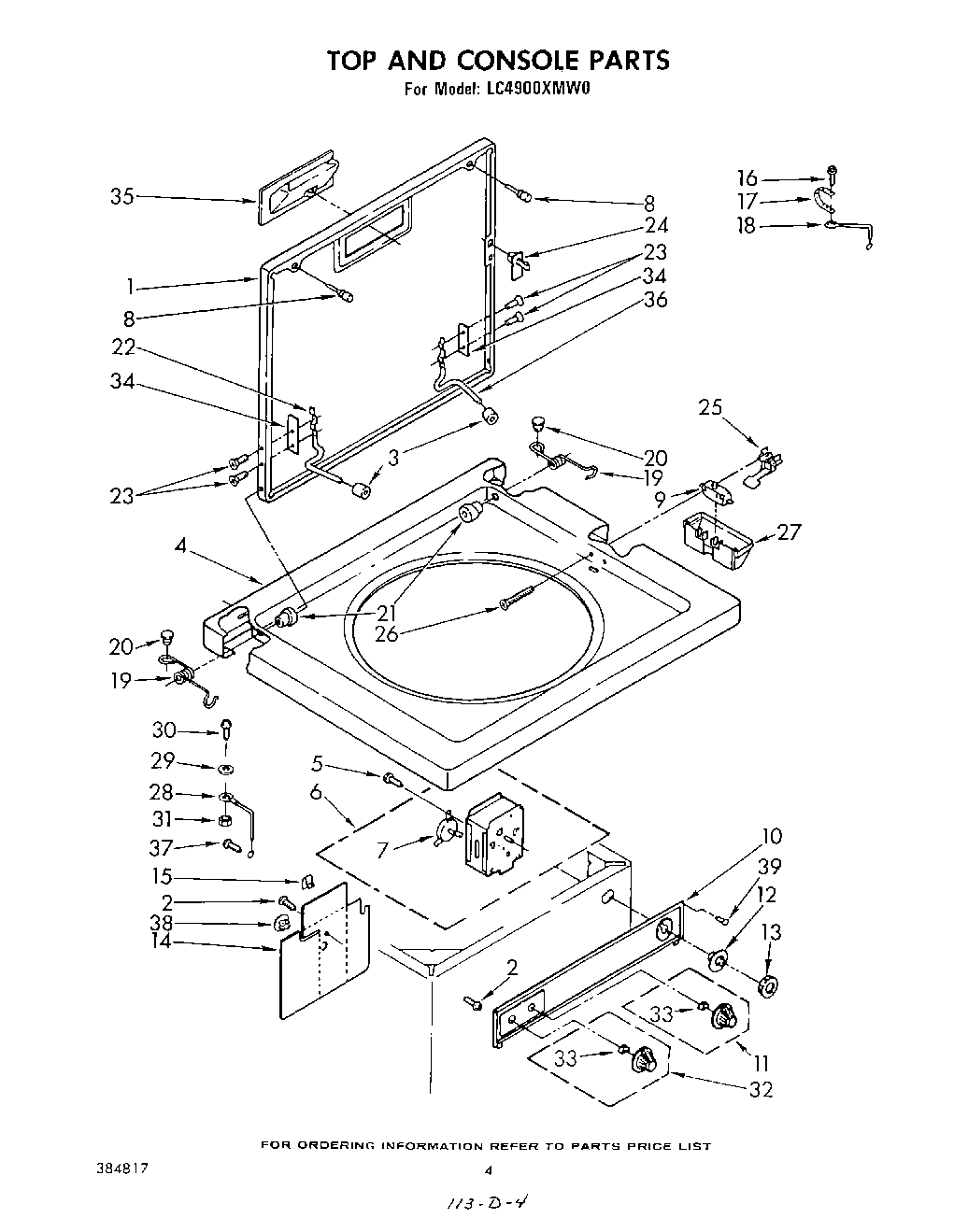

LC4900XMW0 03 – TOP AND CONSOLE

Products

Position	Product
1	Lid (White)
1	Lid (Almond)
1	Lid (Coffee)
1	Lid (Golden Harvest)
2	SCREW
3	Bumper, Lid Hinge
4	WP384693 Whirlpool Top
4	Top (Almond Model)
4	Top (Golden Harvest)
4	Top (Coffee)
5	WP356418 Whirlpool Screw
6	Timer, Disconnect (60 Hz.)
7	Motor, Timer 60 Hz.
8	80011 Whirlpool Washer Lid Bumper Kit of 2
9	W10820036 Whirlpool Door Switch Kit
10	Panel, Control
11	Control Knob Assembly
12	Dial, Timer
13	WPL 356500
14	Shield, Timer
15	Clip, Harness
16	Screw, Ground (10-24 x 1)
17	Strap, Ground
18	WPL 364089
19	Spring, Lid (L.H.) (Includes Illus 10)
19	Spring, Lid (R.H.) (Includes Illus. 10)
20	Plug, Button
21	WP21258 Whirlpool Washer Lid Hinge Bearing
22	384458 Whirlpool Hinge Assembly
23	SCREW
24	WP358684 Whirlpool Strike Assembly
25	Actuator, Lid Switch
26	Screw & Washer, Lid Switch (2)
27	WP359231 Whirlpool Shield
28	Wire, Ground
29	Washer, Lock
30	WP308544 Whirlpool Screw
31	W10080180 Whirlpool Nut
32	Knob Assembly, Water Level
33	Clip
34	WP21097 Whirlpool Pad
35	Handle, Lid (White)
35	Handle, Lid (Golden Harvest)
35	Handle, Lid (Coffee)
35	Handle, Lid (Almond)
36	384459 Whirlpool Hinge
37	WP488234 Whirlpool Air Conditioner Screw
38	Clip, Push-On
39	Rivet, Plastic (4)
