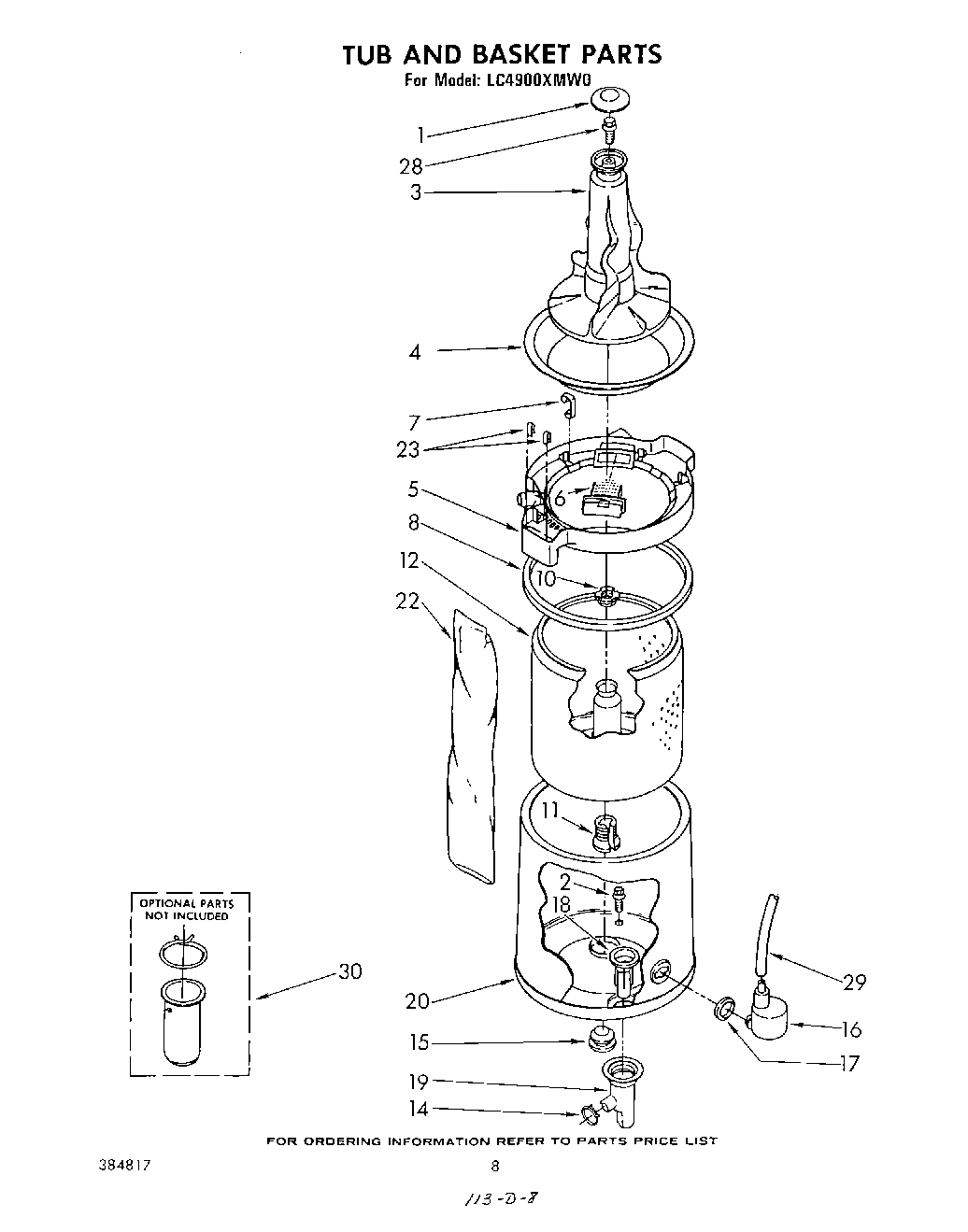

LC4900XMW0 06 – TUB AND BASKET

Products

PositionProduct
1Cap, Agitator
2Screw & Washer, Tub (4)
3Agitator
4Shield, Tub Ring
5Tub Ring (Includes Illus. 22 & 23)
6Filter
7Clip, Tub Ring (5)
8Gasket, Tub Ring
10Locknut
11Block, Basket Drive
12Basket Assembly
14WP285655 Whirlpool Hose Clamp
15W10814296 Whirlpool Washer Center Post Seal Gasket
16Air Dome Assembly
17Seal
18Funnel, Drain
19Manifold, Tub Outlet
20Tub
22356398 Whirlpool Tube
238577411 Whirlpool Pad
28WP358237 Whirlpool Agitator Bolt
29WP353244 Whirlpool Hose
30Manifold Repair Kit (This Kit Eliminates The Need To Remove The Tub From The Compact Washer When Cle
