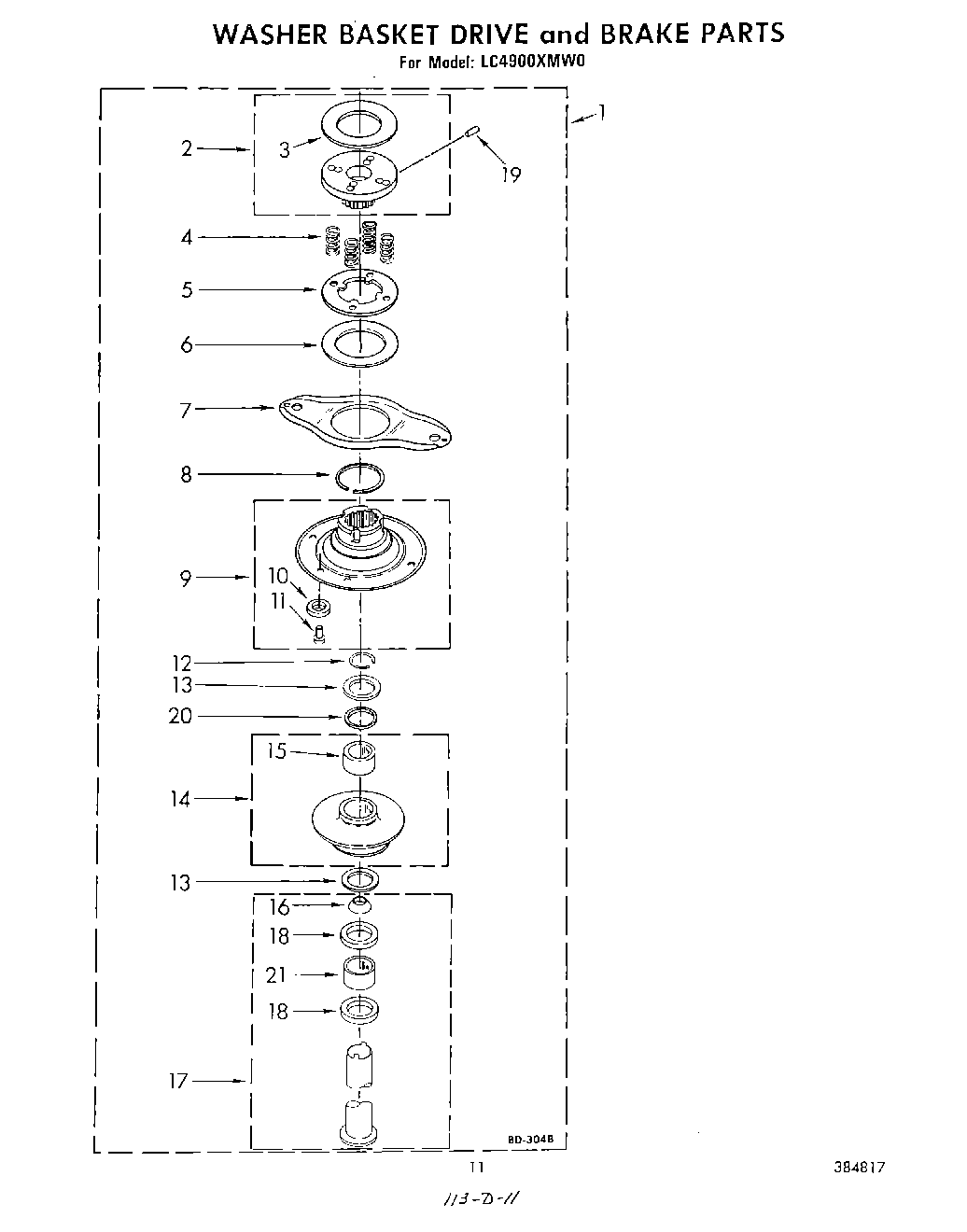

LC4900XMW0 09 – WASHER BASKET DRIVE AND BREAK

Products

PositionProduct
1Basket Drive & Brake
2Drum, Brake (Upper)
3Lining, Basket Brake (Upper)
4Spring, Basket Drive (Gray Black) (4)
5Drum, Brake (Lower)
6Lining, Basket Brake (Lower)
7Yoke, Brake
8Ring, Snap
9Plate & Lining, Basket Drive
10Lining, Basket Drive (Set of 3)
11Eyelet (3)
12WPW10083200 Whirlpool Wire Ring
13Washer, Thrust (2)
14Pulley, Basket Drive
15Bearing, Drive Pulley
16WP91939 Whirlpool Shaft Seal
17Drive Tube & Bearing, Basket
18WP356427 Whirlpool Shaft Seal
19Set Screw, 5/16-18 x 13/16
20Retainer, Oil
21Spacer, Drive Tube
